Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.
RRP £432.00 Save £33.00
£399.00
Available to Order
Stock expected 3rd May 2024Includes 30-Day Exchange & 3-Year Warranty
Manufacturer's ID: TR-08
What we say:
At A Glance:

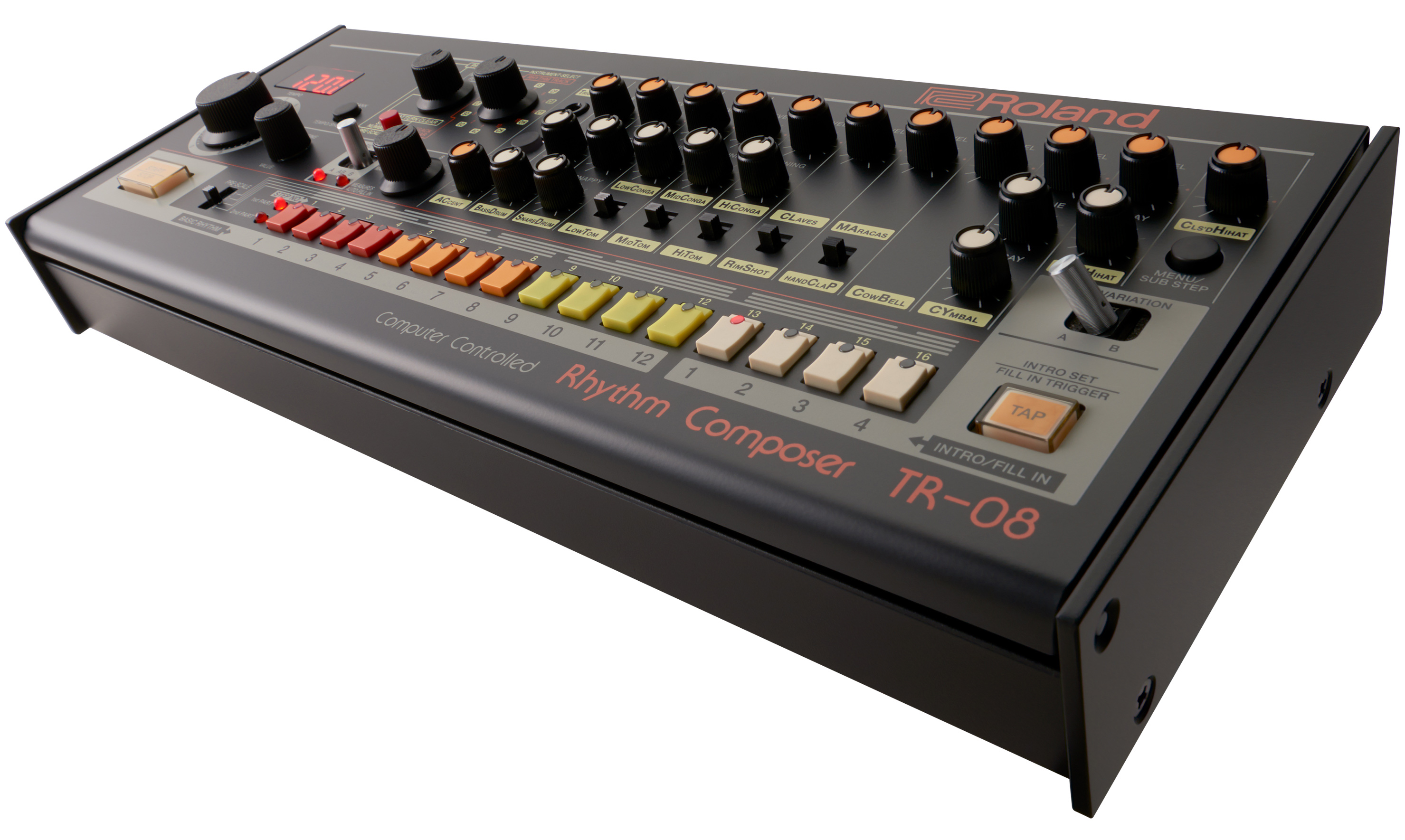

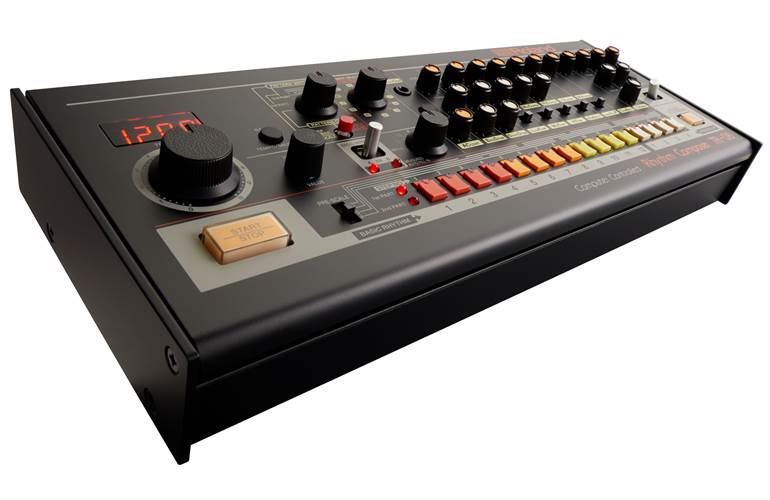

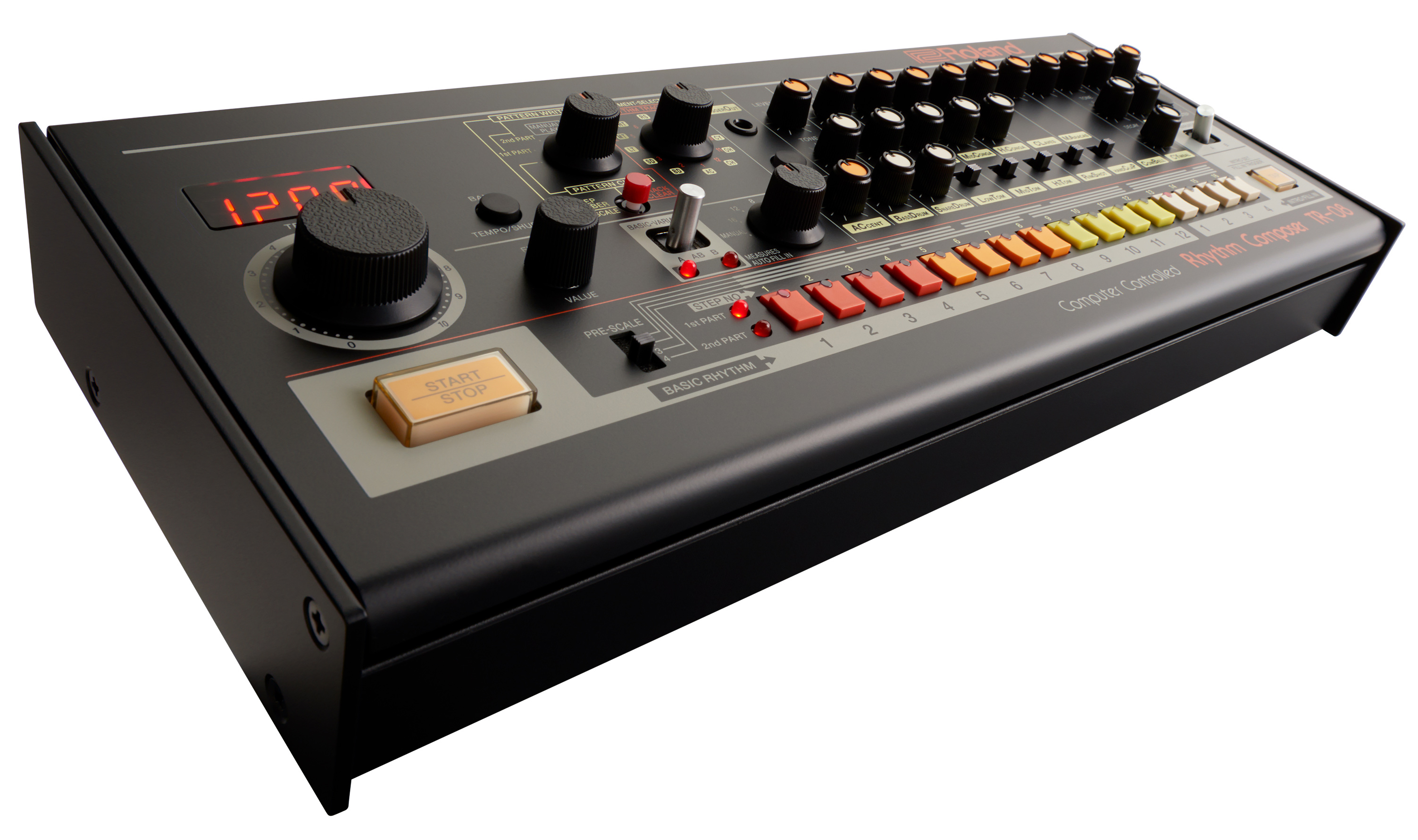

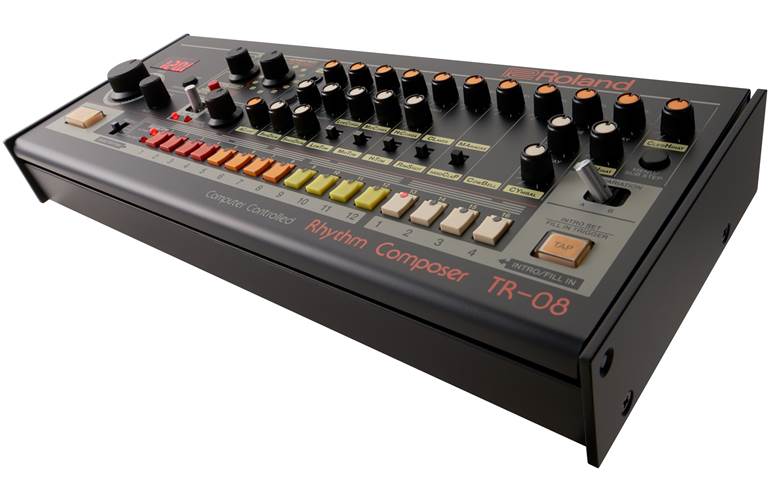

The TR-08 from Roland is one of our favourite releases from recent years. It models the sounds of the legendary TR-808 drum machine down to the fine print, and provides a level of hands-on control that a sample pack can’t provide. Not to mention that the TR-08 is extremely portable, and can record Audio and MIDI over a single USB connection. This makes it a perfect addition to the studio or live setup of anyone looking for those iconic sounds.
Features We Love:
Iconic TR-808 Sounds
The TR-808 needs no introduction. It is without a doubt the most famous drum machine to ever exist, and it’s importance to music cannot be understated. It’s prominence in so many genres have made it’s iconic sounds a staple in today’s world. You’ll hear 808s all over songs from just about any radio station you turn on. The TR-08 uses Roland’s patented Analog Circuit Behaviour (ACB) modelling technology to replicate the circuitry and sound of this legendary machine, bringing it into the modern age.
Ultra-Compact and Portable
The TR-08 is extremely compact and portable, weighing only 1.3kg and small enough to fit in any backpack. It can be powered by either AA batteries or USB bus power, and features a built in speaker, which means you can take those sounds anywhere you like.
Hands-on Control
808 sample packs are a dime-a-dozen, but there is a major thing missing from these. The 808 is an instrument, and it’s supposed to be played! The TR-08 recreates the behaviour of the original unit down to the fine details, meanwhile providing full hands-on control. The sequencer on the TR-08 is powerful, and you have the ability to tweak and shape sounds exactly how you like.
Highlights:
- Iconic TR-808 Sounds
- Great step sequencer
- Retains workflow and interface of the original
- Audio/MIDI over USB
- Ultra-compact and portable
- Sturdy construction
What's Included:
- TR-08 Boutique Rhythm Composer
- Boutique Dock: DK-01 (Black)
- Owner's Manual
- DK-01 Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- Alkaline battery (AA, LR6) x 4
Specification
| User Memory | Pattern, Intro/Fill-In: 16 Bank (12x16 Pattern, 4x16 Intro/Fill-In) |
| Steps | 16 steps with 16 sub steps |
| Instruments | BD: BASS DRUM |
| SD: SNARE DRUM | |
| LC: LOW CONGA, LT: LOW TOM | |
| MC: MID CONGA, MT: MID TOM | |
| HC: HI CONGA, HT: HI TOM | |
| CL: CLAVES, RS: RIM SHOT | |
| MA: MARACAS, CP: HAND CLAP | |
| CB: COW BELL | |
| CY: CYMBAL | |
| OH: OPEN HI HAT | |
| CH: CLOSED HI HAT | |

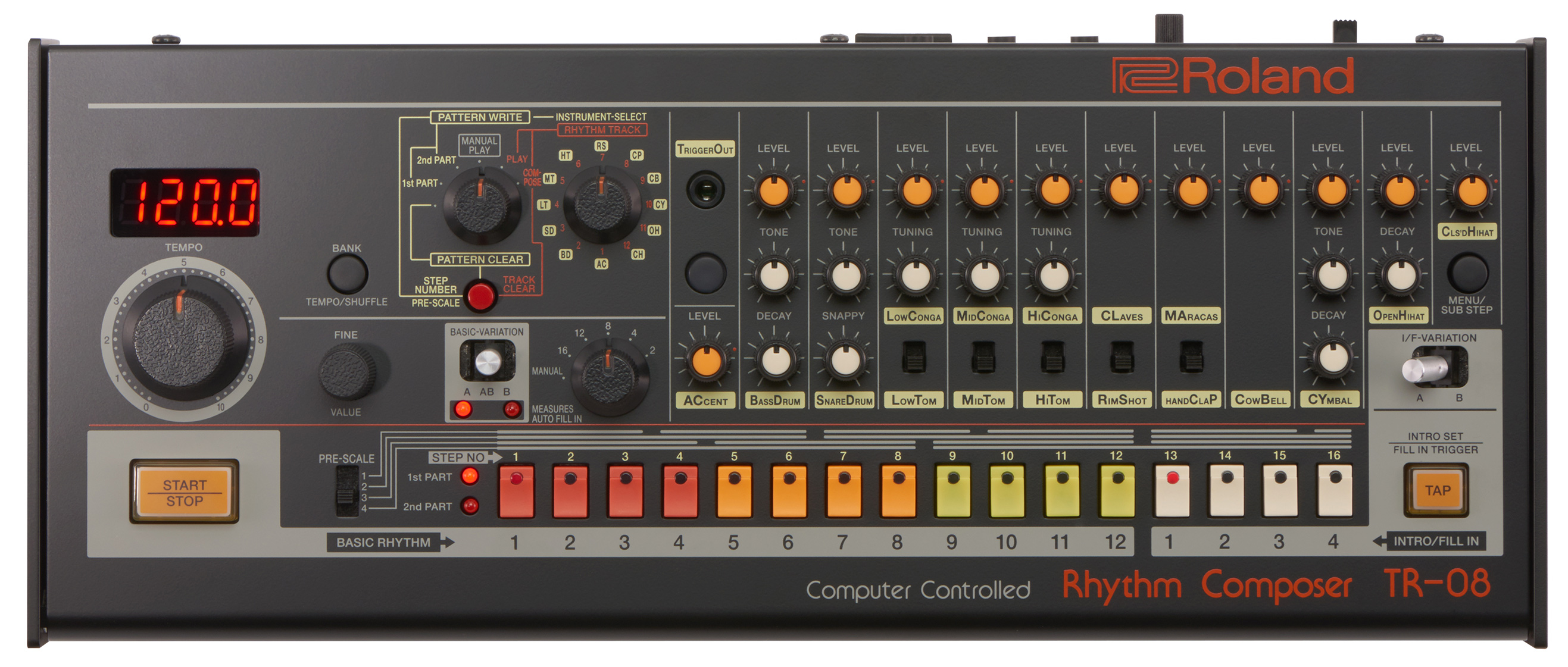

| Controllers | VOLUME knob |
| START/STOP button | |
| TEMPO knob | |
| BANK/TEMPO/SHUFFLE button | |
| FINE/VALUE knob | |
| mode selector knob (PATTERN CLEAR, PATTERN WRITE 1st PART/2nd PART, MANUAL PLAY, RHYTHM TRACK PLAY, COMPOSE) | |
| INSTRUMENT/TRACK selector knob | |
| CLEAR button | |
| BASIC VARIATION selector switch and indicator | |
| AUTO FILL IN selector knob | |
| TRIGGER OUT track select button | |
| ACCENT LEVEL knob | |
| Instrument LEVEL knob (all instruments) | |
| TONE control knob (BD, SD, CY) | |
| DECAY control knob (BD, CY, OH) | |
| SNAPPY control knob (SD) | |
| TUNING control knob (LC/LT, MC/MT, HC/HT) | |
| Voice selector switch (LC/LT, MC/MT, HC/HT, CL/RS, MA/CP) | |
| PRE-SCALE selector switch | |
| STEP button (1-16) and indicator | |
| I/F VARIATION switch | |
| TAP button | |
| MENU/SUB STEP button | |
| 1st PART/2nd PART indicator | |
| Power switch | |
| Effects | Compressor |
| Indicators | 7 segments, 4 characters (LED) |

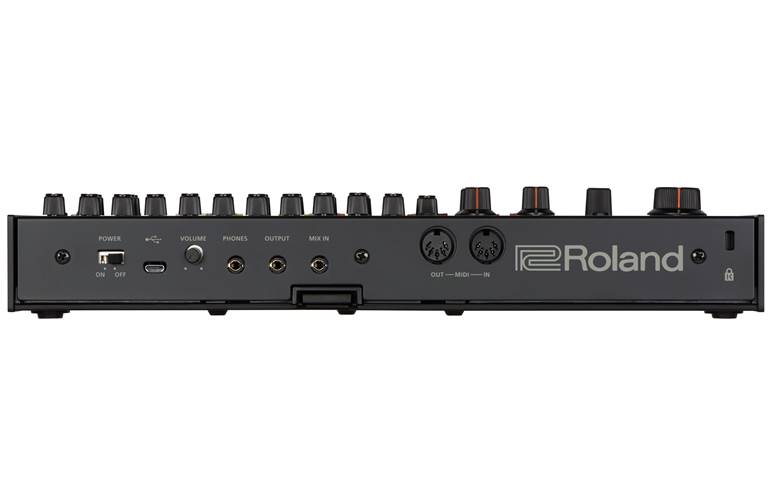

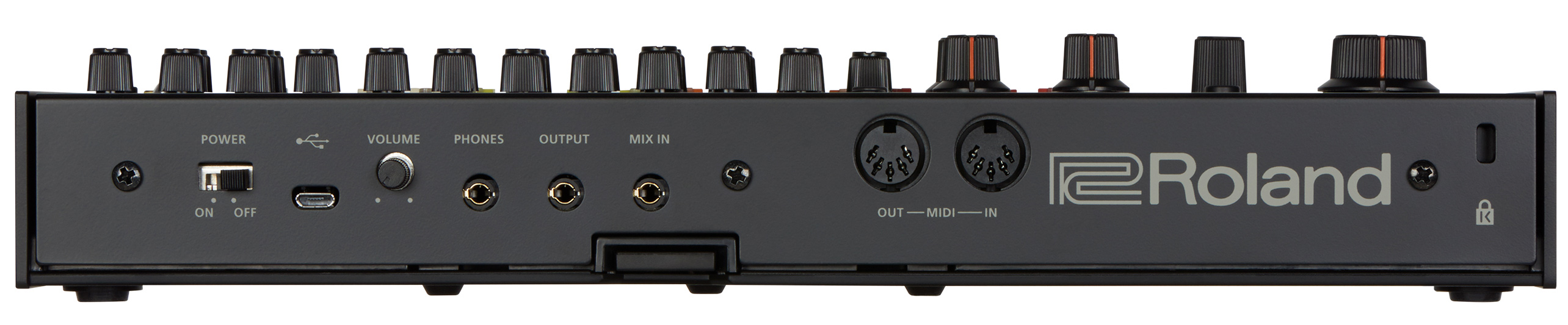

| Connectors | TRIGGER OUT jack: mono miniature phone type |
| PHONES jack: stereo miniature phone type | |
| OUTPUT jack: stereo miniature phone type | |
| MIX IN jack: stereo miniature phone type | |
| MIDI (IN, OUT) connectors | |
| USB port: Micro-B type (Audio, MIDI) | |
| Power Supply | Rechargeable Ni-MH battery (AA, HR6) x 4 |
| Alkaline battery (AA, LR6) x 4 | |
| USB bus power | |
| Width | 308 mm / 12-1/8 inches |
| Depth | 130 mm / 5-1/8 inches |
| Height | 51 mm / 2-1/16 inches |
| Weight (including batteries and Boutique Dock) | 1.3 kg 2 lbs 14 oz |
Firmware Update Ver.1.07 introduces the following features
- USB and MIDI have been added as MIDI clock sources.
- A function enabling switching soft thru on and off has been added.
- Serato DJ Pro Ver.2.1.1 or later is now supported. Synchronized playback with compositions on Serato DJ Pro is possible. ( FEB 2019 )
- Functionality Improvement
- Behavior when using the following settings in the MANUAL PLAY mode was corrected.
- BASIC-VARIATION : AB
- AUTO FILL IN : MANUAL
