Yamaha MS45DR Drum Monitoring System
Image Gallery
Manufacturer's ID: JMS45DRUK
The MS45DR is a 2.1-channel electronic drum monitor system for home use. This simple and compact unit is specially designed to authenticly reproduce dynamic drum sounds.
The MS45DR allows you to enjoy superb sound quality without the isolation of headphones, providing open acoustic drum feeling that you can share with family and friends.
- 2.1-channel stereo monitor system for realistic sound experience
- 20 W satellite speakers and subwoofer

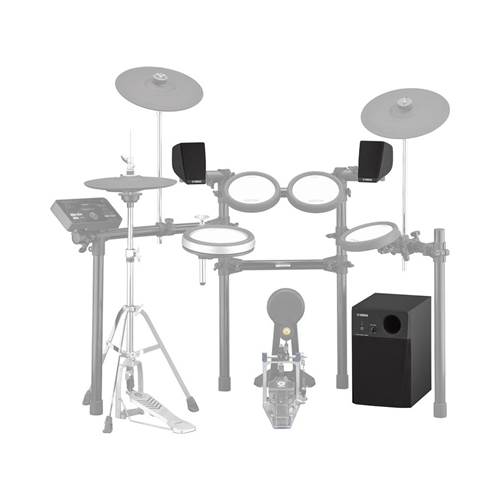

- The satellite speakers can be mounted on general electronic drum racks
- Cables included for easy setup
Specification
| Power Consumption | 24 W |
| Power Supply | 100 V-240 V~, 50/60 Hz |
| Satellite speakers output power | 20 W + 20 W (2 kHz, 4 Ω) |
| Subwoofer output power | 20 W (60 Hz, 8 Ω) |
| Frequency response | 40–20000 Hz (-10 dB) |
| Speaker unit | |
| Satellite speakers (Tweeter) | 2 cm (0.8") dome (5 Ω) |
| Satellite speakers (Midrange) | 8 cm (3") cone (4.5 Ω) |
| Subwoofer | 16 cm (6.5") cone (8 Ω) |
| Dimensions (W x H x D) | |
| Satellite speakers | 110 × 183 × 138 mm (4 5/16" × 7 3/16" × 5 7/16" ) not including holder |
| Subwoofer | 221 × 351 × 343 mm (8 11/16" × 13 13/16" × 13 1/2") |
| Weight | |
| Satellite speakers | 1.0 kg (2 lb, 3 oz) × 2 |
| Subwoofer | 6.5 kg (14 lb, 5 oz) |
| Accessories | Pipe clamps* (2) |
| Combination cable (8 pin mini DIN to phone and RCA pin) (1), | |
| Cable band (1) | |
| Power cord (1) | |
| Owner’s Manual (1) | |
| *Can be attached to straight vertical pipes of 1.5-inch (38.1-mm) diameter. |
