Manufacturer's ID: 10010297

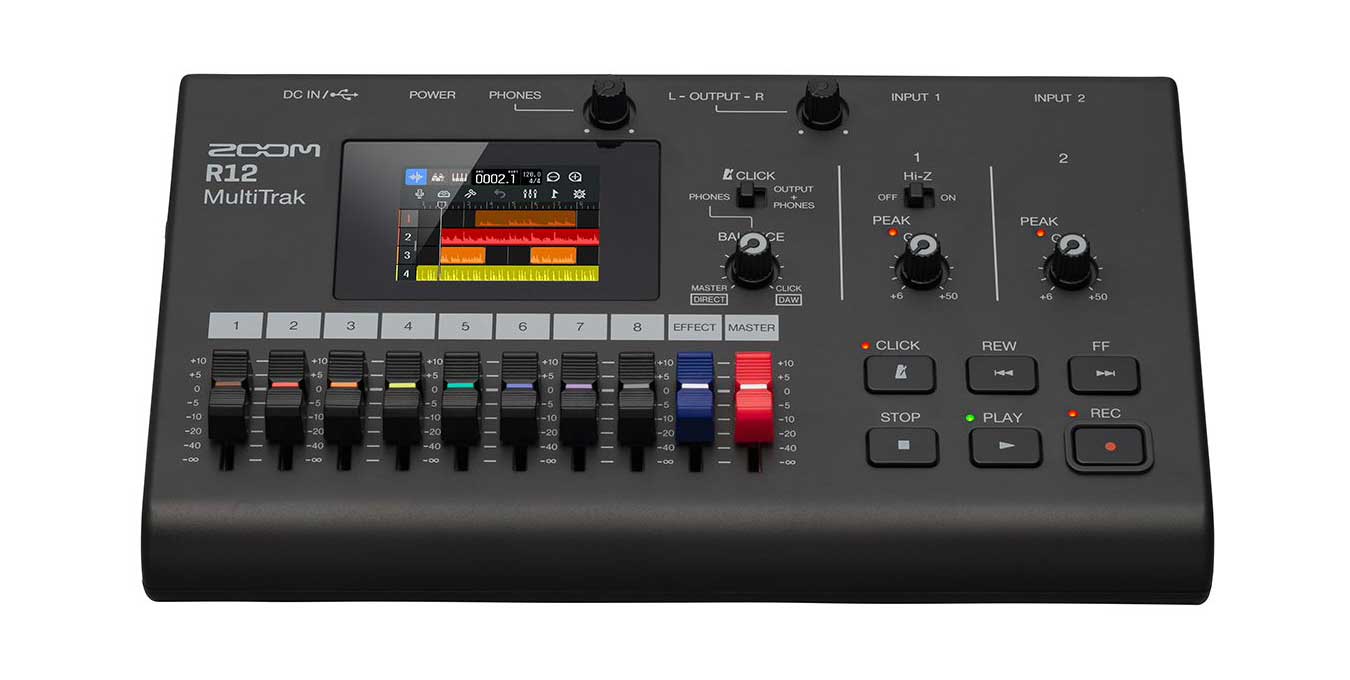

The R12 MultiTrak is Zoom’s portable project studio for recording & editing music tracks. Built on the new features introduced with the R20, the R12 provides the very same smartphone-friendly experience offered by the onboard Touchscreen Color LCD and it is fully integrated with a multi-channel mixer board and recorder with transport controls. The R12 features 2 XLR/jack combo inputs, 8 tracks, records directly to SDHC or SDXC cards up to 1TB and can be powered by an AC power Adapter, 4 AA Batteries or a USB power bank. The R12 offers 150 internal rhythm patterns as well as import functions for audio files from an SD card or USB stick, making it easy to integrate your own backing tracks or samples into your project. In addition, the R12 features an internal synthesizer with 18 sounds+1 drum kit, playable via a MIDI keyboard connected via USB-C. With the new Sequence Play function, you can create a playlist of your projects to use as a backing track. To spice things up, an EQ, compressor and gate as well as a full MFX processor, which is compatible with our Guitar Lab software, are at your fingertips. The R12 works also as an 2-in/4-out USB-C audio interface and DAW control Surface with a Mac or PC. With the R12, it's easier than ever to record, edit and mix songs in the location of your choice, so you can focus on the music.
- 2,4" color touchscreen
- Record on up to 8 tracks (2 simultaneously)
- 2 XLR/jack combo inputs
- On-board editor
- Built-in MFX processor, compatible with Guitar Lab software
- Operates with AC power adapter, 4 AA batteries or USB power bank
- 150 bulit-in rhythm pattern
- Internal synthesizer with 18 sounds + 1 drum kit
- 2-in/4-out USB-C audio interface
- DAW control surface mode
Specification
| Inputs/Outputs | ||
| Inputs | Mic/Line (Mono) | 2 |
| Outputs | Master Out | 1 |
| Phones | 1 | |
| Inputs | ||
| Mic/Line (Mono) | Connectors | 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT |
| Input Gain | +6 ~ +50 dB | |
| Input Impedance | XLR: 3.9 kΩTRS: 3.9 kΩ/1 MΩ(when Hi-Z ON, INPUT 1 only) | |
| Phantom Power | +48 V (switchable separately for INPUTS 1 and 2) | |
| Equivalent Input Noise | –121 dBu or less (IHF-A) at +50 dB/150 Ωinput | |
| Frequency Response | −1.0/+0.5 dB: 20 Hz –20 kHz | |
| Outputs | ||
| Master Out | Connectors | 2 TRS Phone Jacks (Balanced) |
| Maximum | +14dBu | |
| Output Impedance | 200 Ohm | |
| Phones | Connectors | 1 Stereo 3.5mm Mini Jack |
| Maximum Output Level | 45mW + 45mW (Into 32 Ohm Load) | |
| Output Impedance | 10 Ohm | |
| Recorder | ||
| Maximum Simultaneous Recording Tracks | 2 | |
| Maximum Simultaneous Playback Tracks | 8 | |
| Recording Format | 44.1kHz, 16/24-bit, mono/stereo WAV | |
| Recording Media | 4–32GB cards compatible with the SDHC specification | |
| 64–1TB cards compatible with the SDXC specification | ||
| Track Settings | ||
| EQ | High: 10 kHz, ±12 dB, shelving | |
| Middle: 2.5 kHz, ±12 dB, peaking | ||
| Low: 100 Hz, ±12 dB, shelving | ||
| Pan | L100 –R100 | |
| Effects | ||
| Input Dynamics | Comp/Limiter/Gate | |
| Patch Memory Effects | 3 Types Can Be Used Simultaneously | |
| 50 Patch Memories | ||
| Guitar Lab Supported | ||
| Can Be Assigned and Used as an Insert (Input) or Send Effect | ||
| Dedicated Send Effects | 10 Types of Spatial Effects | |
| Tuner | ||
| Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD | ||
| Click (Metronome) | ||
| Time Signatures | 3/4, 4/4, 6/8 | |
| Tempo Range | 40.0 - 250.0 BPM | |
| Rhythm Loops | ||
| Sound Source Format | PCM | |
| Number of Loops | 150 | |
| Synth | Sound Source Format | FM |
| Polyphony | 8 | |
| Number of Sound Types | 18 (And a PCM Drum Kit) | |
| Display | 2.4"(320×240) full-color touchscreen LCD | |
| USB | ||
| Connector | USB Type-C | |
| Note: Use a USB cable that supports data transfer. USB bus power is supported. | ||
| Audio Interface Function | 2-in/2-out or 2-in/2-out (iPad) | USB 2.0 Full Speed |
| 44.1 kHz, 16/24-bit | ||
| 2-in/4-out | USB 2.0 High Speed | |
| 44.1 kHz, 16/24-bit | ||
| Mass Storage Function | Device | USB 2.0 High Speed (5 V/200 mA power supplied when host |
| Guitar Lab Connection | USB 1.1 Full Speed | |
| DAW Connection (Control Surface) | USB 1.1 Full Speed | |
| Mass Storage Function | Host | USB 2.0 High Speed (5V/200 mA power supplied) |
| USB MIDI Keyboard Connection | USB 1.1 Full Speed (5 V/200 mA power supplied) | |
| Power | ||
| Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH) | ||
| AC adapter: ZOOM AD-17 (5V/1.0A) | ||
| Estimated Continuous Operation Time Using Batteries | ||
| During playback with +48V off and 32Ω headphone load | ||
| Alkaline Batteries: About 5 Hours | ||
| NiMH Batteries (1900 mAh): About 5 Hours | ||
| Lithium Batteries: About 11 Hours | ||
| The above values are approximate. •Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions. | ||
| Power Consumption | 5 W Maximum | |
| Dimensions | 256 mm (W) × 158 mm (D) × 61 mm (H) | |
| Weight | 827g |
