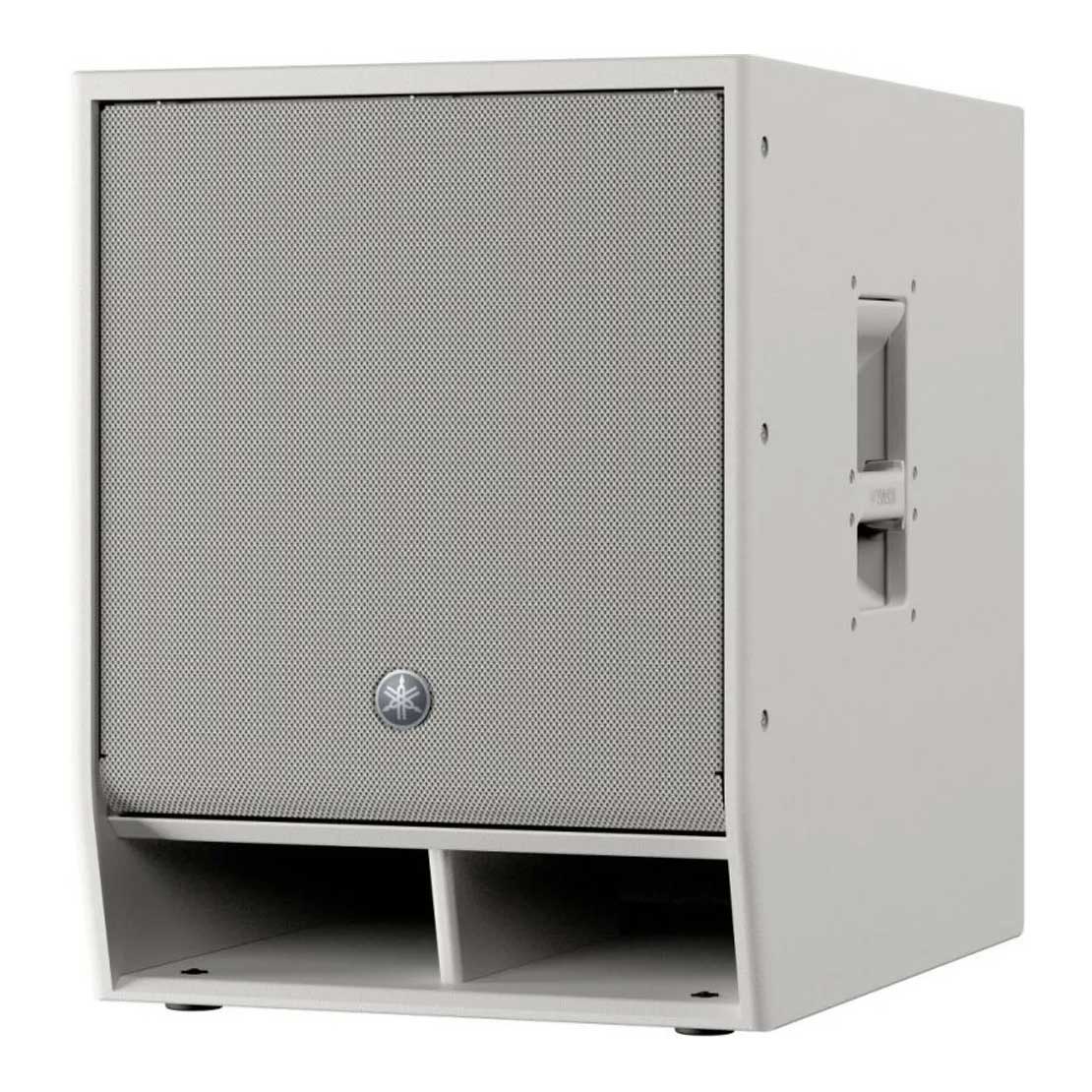

Yamaha DXS15XLFW Powered PA Subwoofer White
£1,599.00
In Stock
2 AvailableOrder before 4PM for Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CDXS15XLFWUK
Perfectly suited for use with DZR full-range speakers, the DXS15XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.
- Powered 15” subwoofer with 4” Voice Coil
- Maximum 136dB SPL and 33Hz-150Hz frequency range is ideal for today’s sound engineering demands
- High power 1600W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-definition sound with super low latency
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- Equipped with D-XSUB processing and cardioid mode capability
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Specification
Speaker type |
Powered Subwoofer, bass-reflex |
|
Frequency range (-10dB) |
33Hz - 150Hz |
|
Components |
LF |
15" Cone, 4" Voice Coil, Ferrite magnet |
MF |
- |
|
HF |
- |
|
Crossover |
- |
|
Sampling frequency rate |
Internal |
96kHz and FIR Filter |
A/D D/A Converters |
96kHz AD/DA |
|
Maximum output level (1m; on axis) |
136dB SPL *1 |
|
Power rating |
Dynamic |
1600W *2 |
Continuous |
1230W |
|
I/O Connectors |
Analog I/O |
Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
Others |
USB2.0 Host 5V 500mA for USB memory DATA storage/load |
|
AC |
IEC AC inlet x1 (V-Lock) |
|
Amplifier class |
Class-D |
|
Cooling |
Fan cooling, Variable speeds |
|
Power consumption |
40W (Idle), 180W (1/8) |
|
Handle |
Aluminium die-cast, Side x2 |
|
Dimensions |
W |
450 mm (17.7") |
H |
587 mm (23.1") (with rubber feet) |
|
D |
600 mm (23.6") |
|
Net weight |
40.0kg (88.2lbs) |
|
Others |
Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black |
|
Pole socket |
Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) |
