Adam A5X Studio Monitor (Single)

Specification

Like all other models of the AX-Series it features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.

A 5.5” Midwoofer reproduces the frequencies below 2.5kHz. The diaphragm is made from Carbon fiber/Rohacell/Glass fiber, which is the same composite structure shared in the next two bigger models. This material with minimum weight and maximum rigidity prevents break up resonances, resulting in an outstanding dynamic behaviour and impeccable sound characteristics.

Stereolink

A very handy and exclusive feature found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

This new technology connects two A5X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speakers gain control. This makes the A5X a natural for “mixer-less” desktop applications where overall system volume needs to be adjusted easily.

Controls and Connectors

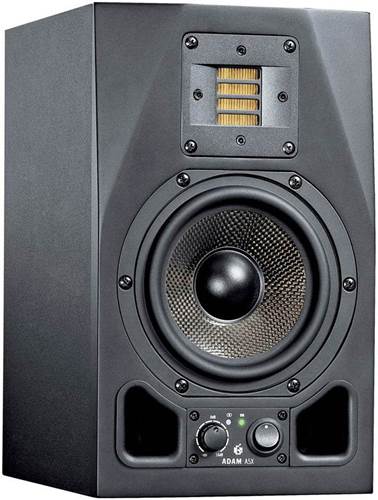

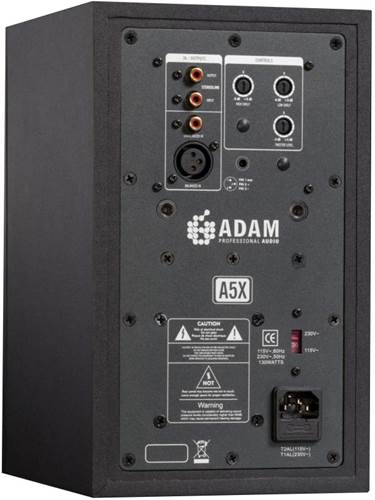

The front of the A5X sports dual ports for surprisingly low frequency response down to 50Hz. The front panel also has power and gain controls. The rear panel includes a tweeter gain control as well as balanced (XLR) jacks and unbalanced (RCA) jacks, allowing for greater connection flexibility. There are also two M6 (6 mm) metric screw threads for stand/wall mounting.

Size + Weight

• Height: 11" (280 mm)
• Width: 6.5" (170 mm)
• Depth: 8.5" (220 mm)
• Weight: 14.6 lb (6,6 kg)

What's In The Box

• A5X Studio Monitor
• Cinch-cable
• Power supply
• User manual

Exlusive Content and Extended Warranty

Create a MyADAM account at the official ADAM Audio website and you will be able to extend the warranty of your Adam Audio products from 2 to 5 years. Other benefits of your MyAdam account includes access to free plugins and software, tutorials, product manuals and exclusive offers
