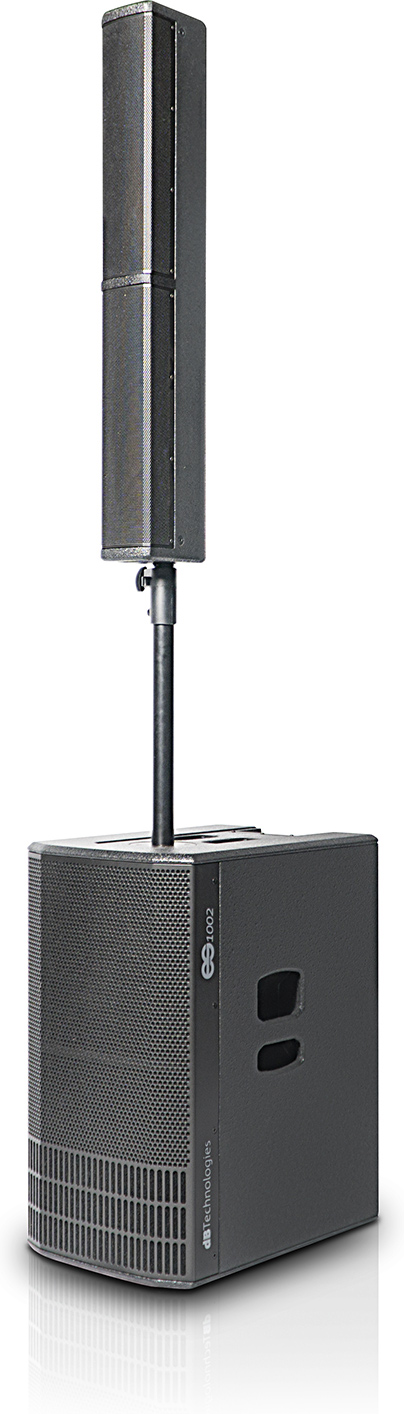

dB Technologies ES1002 Column PA System

Manufacturer's ID: ES 1002

Remarkably powerful (1800 W peak) for its compact size, this complete PA system is designed for a quick and smooth set up, equally responding to musicians and djs needs.

Specification

ES1002 comes with 1 subwoofer and 1 column top, both powered by a class D DIGIPRO G3 amplifier delivering 1800 W peak.

The top satellite is equipped with 8x4” mid-woofers, whose alignment allows an asymmetrical vertical coverage, avoiding any useless dispersion of the sound above the audience. Moreover, each mid-range woofer is provided with a newly designed phase-plug able to widen the horizontal coverage while guaranteeing a perfect intelligibility of the vocal range from every listening position.

The sub encompasses 2X12” woofers in bass-reflex configuration, the amp module and the control panel, whose inclined design improves usability. I/O section allows to connect up to 2 INPUTS (XLR mono and RCA stereo with independent volume controls) and provides a balanced link out to feed a second system or a stage monitor.

A rotary with 8 preset EQ helps users to perfectly tune the system, adapting it to different environments and uses (playback, live music, speech etc.).

The enclosures of both top and sub are made of plywood, coated with a durable scratch-resistant finish, which makes ES1002 truly road-ready.

Speaker Type Bi-Amped Mono Column System
Acoustical Data
Frequency Response [-3dB] 43-20,000Hz
Usable bandwidth [-10dB] 56-18,000Hz
Max SPL 130.7dB
MF-HF 8x 4in
Type MF-HF Neodymium
LF 2x 12in
Directivity (HxV) 97x40°
Amplifier
Amp Technology Digipro® G3
Amp Class Class-D
Power AMp Peak 1800w
Processor
Controller DSP 24 Bit/48kHz
System Presets Flat - Bass boost - Bass reduction - Playbeack - Speech - Long throw - HPF 80Hz - HPF 120Hz
Limiter Dual Active, Peak, RMS, Thermal
Controls DSP Rotary Encoder, Volume COntrols, MIC/LINE Switch
Crossover Frequency LF-HF 160Hz
Input
Mains Connections VDE
Signal Input 1x Combo (XLR/Jack)
balanced/unbalanced input - Mic/Line
1x RCA stereo input
Signal Out 1x XLR balanced output with aux
volume + 1x speakon to top
Mechanics
Housing (Subwoofer) Black Painted Plywood
Housing (Tops) Multiplex PLywood
Handles 3 (1 on top + 1 each side on sub)
Pole Mount 36mm (M20 Threaded Hole)
Width (top) 110mm (4.33in)
Height (top) 905mm (35.63in)
Depth (Top) 160mm (6.3in)
Width (Subwoofer) 360mm (14.17in)
Height (Subwoofer) 680mm (26.77in)
Depth (Subwoofer) 545mm (21.46in)
Weight (Top) 5.8Kg (12.79lb)
Weight (Subwoofer) 29.3Kg (64.59lb)

ES 1002 includes one cover for the sub and one cover for the top module.
