Icon Qcon Pro X Control Surfac ...

£725.00 In Stock

FREE Delivery Tomorrow

Click and Collect available

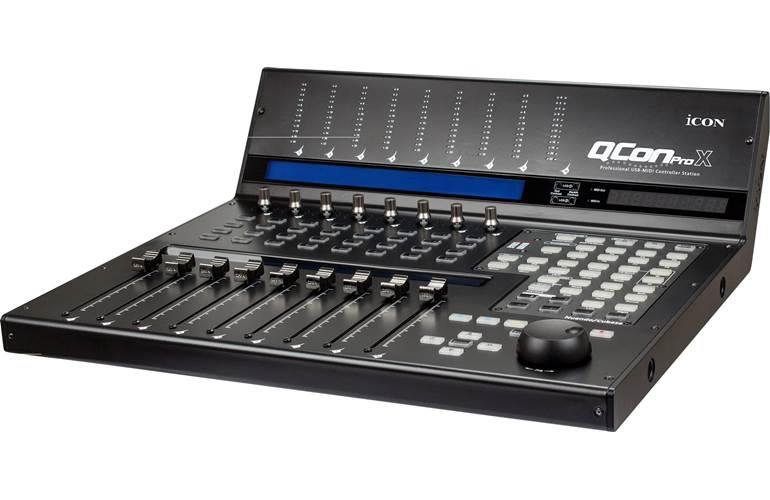

Icon Qcon Pro X Control Surface

RRP £767.00 Save £42.00

£725.00

In Stock

Order before 3PM for FREE Delivery Tomorrow

Includes Extended Christmas Exchange

Buy with confidence: Items bought 1st October 2021 to 24th December 2021 are eligible for our Extended Christmas Exchange & can be exchanged until 31st January 2022.
Learn More

Make 3 payments of £241.67 No fees. Learn more

Pay Monthly

  • From £11.61 a month: 9.9% APR
  • Deposit from 0% to 50%
  • Pay over 12, 24 or 36 months
Apply Now

Buy Now, Pay 2022

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

FREE Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Thursday
Glasgow
In Stock, Collect Today
Newcastle
Collect on Thursday
Birmingham
Collect on Thursday
Epsom
Collect on Thursday
Camden
Collect on Thursday

Manufacturer's ID: ICON-QCON-PRO-X

CONTROL ANY DAW

QCon Pro X is a powerful control surface for any DAW. Integration is most easily facilitated using any one of our DAW specific custom modules. Simply select the module for your DAW, follow the easy install procedure, and QCon Pro X will use Mackie Control or HUI protocol to provide seamless interfacing with your DAW’s functions. We offer modules to support the most popular DAWs including Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude and Reaper. Once QCon Pro X is linked to your DAW, then it will always boot up in the proper configuration; even after being powered off. If you have a module installed for one DAW, and want to use a different DAW, then no worries. You can still go into manual mode and select any of the other supported DAWs from a list displayed on the QCon Pro X LCD upon boot-up. Even if your DAW is not supported by a custom module, then you can still map its functions to QCon Pro X using our intuitive MIDI learn mode.

CONTROL YOUR PLUGINS AND AUTOMATION TOO

QCon Pro X also gives you tactile control of your VST, RTAS, Direct X and AU Plugins. Dial in EQ frequencies, Q or gain with the rotary encoders. The values of different parameters are shown on the upper LCD screen. Control Virtual Instruments as well. There’s also a “FLIP” button for fader control of plug-in parameters. Automation of track and plugin parameters is also made easy with QCon Pro X. Write fader rides just like you would on any large format analog console using buttons for familiar functions like GROUP, WRITE, TOUCH, LATCH and TRIM. QCon Pro X is also scalable. Expand in groups of 8 up to 32 channels. Expansion modules will be available soon, so you can create a custom surface to fit your needs. With the QCon Pro X you get the best of both worlds; the total recall, power and flexibility of your DAW with the look, feel and functionality of a sturdy piece of hardware.

  • 8+1 touch-sensitive motorized faders with 10-bit resolution
  • 12 segment LED meter bridge
  • Stereo LED master channel level metering on metering bridge
  • 8 Dual function encoders with multi-color LED indication ring
  • 11-segment multi-color LED surrounding the encoders to indicate the rotation position
  • Dual 2×56 large backlit LCDs to display channel name, control values etc. for each channel
  • 12-segment LED display showing time location of your project in either SMPTE or BBT format

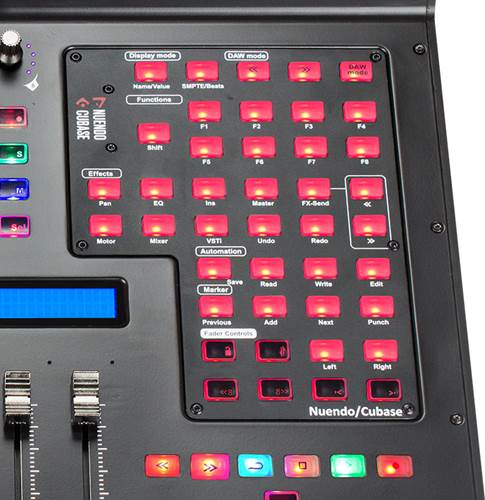

  • 18 assignable buttons
  • Jog shuttle wheel for scrubbing, fast search and control
  • Illuminated buttons for each channel including Record Enable, Solo, Mute, Select and Monitor
  • 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
  • Illuminated ZOOM button with 4 direction buttons
  • 9 illuminated assignable MIDI function buttons
  • Expandable to 32-channels using 3 QCon XS expander units (coming soon)
  • Optional expander units with motorized joysticks for surround sound mixing, extra button units and extra knob units (also coming soon)
  • Two (2) 1/4” connectors for foot switches and pedals
  • Automatic and manual mode switch for accessing different DAW modes
  • Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit), Windows 8 (32-bit & 64-bit), Windows 10 (32-bit & 64-bit) and Mac OS X
  • USB 2.0 high speed connectivity
  • ICON “Quick-Setup” driver is available for Cubase, Nuendo, Reason and Bitwig for instant plug & play compatibility
  • Optional automatic DAW detection mode is available for Cubase, Nuendo, Ableton Live, ProTools, Logic, Reason, Studio One, Bitwig, Samplitude and Reaper via custom module
  • Built-in Mackie Control for all DAWs listed (except for ProTools which uses Mackie HUI Protocol)
  • PVC overlays are included for all DAWs listed (except Cubase and Nuendo which is the stock module)
  • User self-defined (MIDI Learn) mode for other DAWs not supported with presets
  • Easy firmware upgrade available via USB connection and iMap software
  • Superior build quality and robust metal casing with Kensington lock port

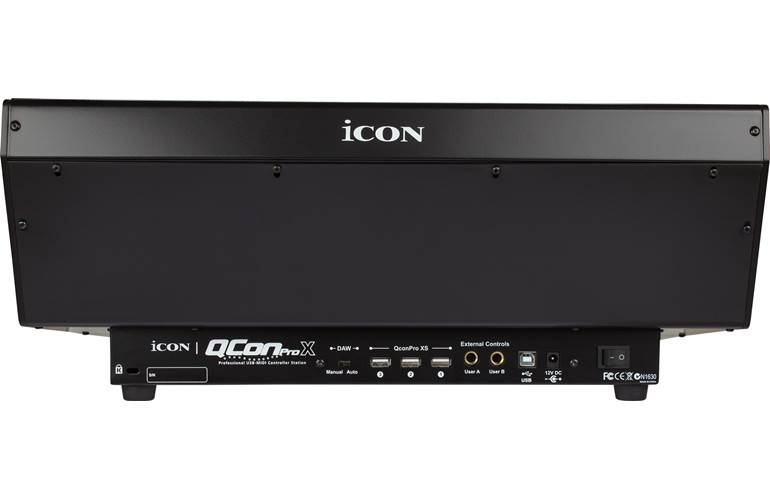

Specification

Connector To computer: USB connector (standard type)
Connector To extender : USB connector (B-Type)
Power supply 12V2.5A DC
Current consumption 2A or less
Weight 6kg (13.2lb)
Dimensions 473(L) x 416(W) x 188(H)mm
Dimensions 18.62”(L) x 16.38”(W) x 7.4”(H)
