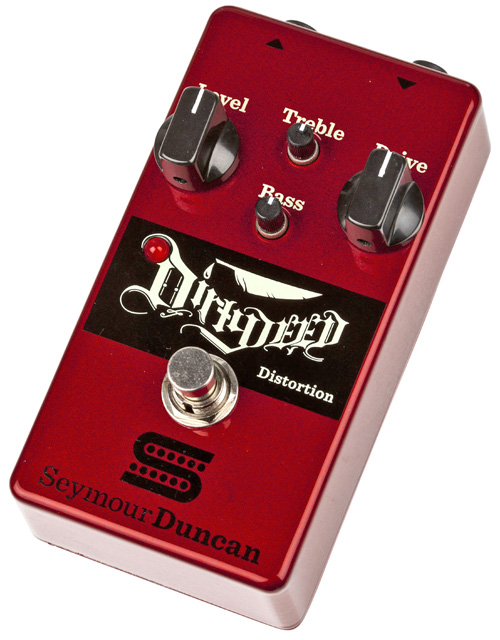

Seymour Duncan Dirty Deed Distortion Pedal
Manufacturer's ID: Dirty Deed
SpecificationFor maximum flexibility the Dirty Deed incorporates an active EQ for 12dB of treble and bass boost/cut. A pair of MOSFET transistors evoke the tube-like harmonics and lush sustain that only come from dangerously pushed amplifiers. Runs on standard 9v to 18v DC power supplies. At 18v the Dirty Deed enhances overall saturation and compression.
After several years of development, this analog, 100% true bypass distortion pedal is now being released to the public. Designed and assembled in Santa Barbara, California.
Distortion Circuitry: Discrete MOSFET pair
Bypass: True bypass
Gain Control Range: CCW: 30dB +/- 1.5dB; CW: 63dB +/- 1.5dB
EQ Center Frequencies: Bass 90Hz; Treble 2.1 KHz
S/N Ratio at minimum gain and maximum level settings: 120dB
Noise referred to input, 400Hz to 20kHz: 1uV rms
THD @ 10mVrms input @ 1 KHz with 30dB of gain: 0.12%
Max Output before Saturation: 2.6Vrms
Input Impedance: 470K Ohms
Output Impedance: 2.8K Ohms
Power: 9V battery or external 9 to 18V Regulated DC Adapter
Current Consumption: 6.5 mA Max
Dimensions: 2.61" x 4.90" x 1.45"
Weight: 0.8lb.without battery
