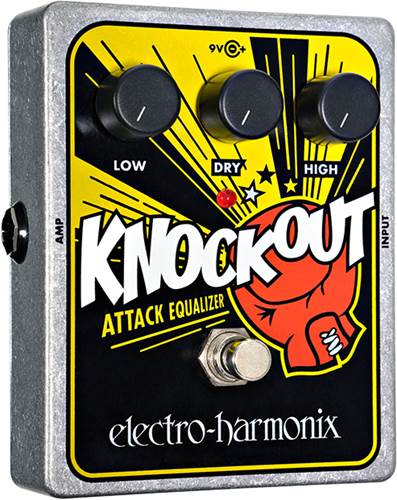

Electro Harmonix Knockout Attack Equalizer
In Stock2 Available
Order before 3PM for Delivery Tomorrow
Manufacturer's ID: KNOCKOUT
What we say:
Do you ever wish your LP-style guitar occasionally sounded like an S-style? Or does your single coil guitar sometimes need a little extra girth and thump? Well, now you can achieve all this without having to modify your instruments or change out pickups. The Electro-Harmonix Knockout is your answer!
This clever pedal uses 2 filters to manipulate the upper and lower mid frequencies to varying degrees. These frequencies are the most responsible for creating your guitar's overall tonality so boosting and cutting these will result on the intended affect.
A 'Dry' knob lets you dial back in your guitar's unaffected sound to tweak things and get the tone you're looking for. It's a simple and extremely effective tool to have on your pedalboard!
- CONTROLS -
LOW Knob -The LOW knob is a volume control for the low or bass frequencies. The further you turn the LOW knob clockwise, the louder the low frequencies will be. The LOW knob controls the output volume from the Knockout’s 7-Pole Low-Pass Filter. The low pass filter has a fixed cutoff frequency of 85 Hz. The LOW knob is responsible for contouring the bottom end in relation to the total sound.
DRY Knob - The DRY knob is a volume control for the signal present at the Input Jack. The output volume of the dry signal will increase as this knob is rotated clockwise. Use the DRY knob in conjunction with the LOW and HIGH knobs to create your tone.
HIGH Knob - The HIGH Knob is a volume control for the high or treble frequencies. The further you turn the HIGH knob clockwise, the louder the treble frequencies will be. The HIGH knob controls the output volume from the Knockout’s 6-Pole High-Pass Filter. The high pass filter has a fixed cutoff frequency of 6.5kHz. The HIGH knob is responsible for contouring the high end to the total sound.
