Mooer Steep I Audio Interface
Image & Video Gallery
£129.00
In Stock
Order before 4PM for Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Manufacturer's ID: MA50
While many MOOER multi-effects pedals can be used as an audio interface, MOOER has finally announced their new line-up of audio interfaces with the Steep.

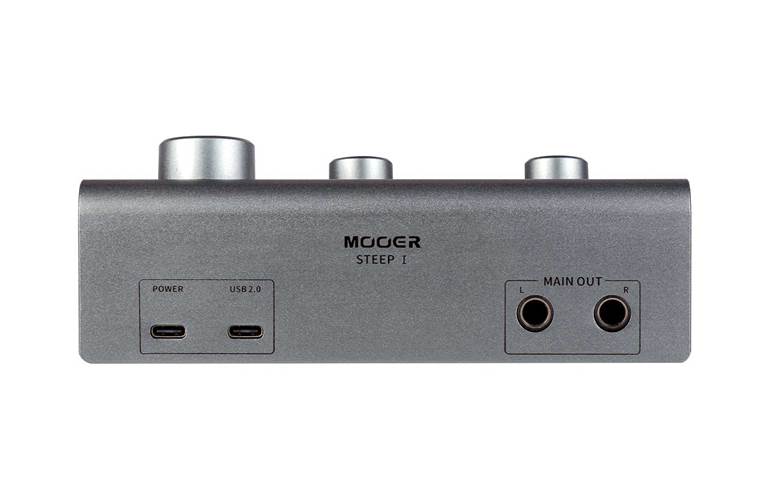

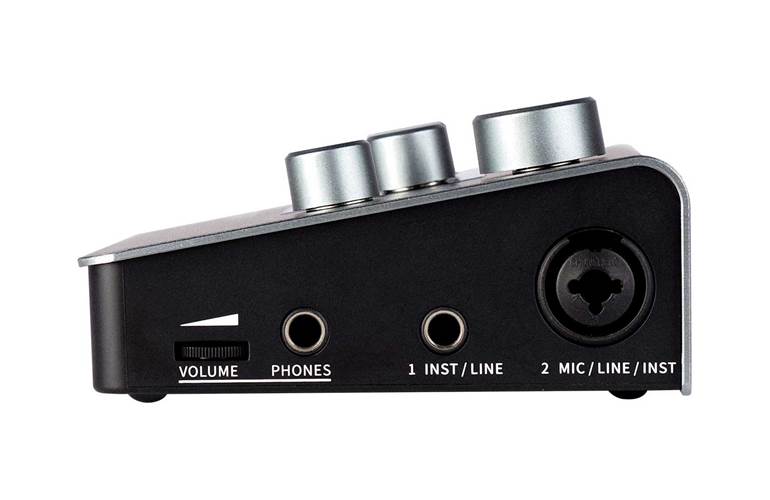

It offers a multi-platform audio interface with support for high-resolution audio up to 24bit/192 khz and combination microphone, line-in, and high-impedance value instrument support. Dual-channel outputs are also included as well as one USB-C port for power and one USB-C port for data transfer, that can also be used for power when connected to a PC. The Steep I includes dual LED input level indicators, support for 48v phantom power, a stereo direct monitor button, and knobs to control main output volume, mix, and input gain levels. Steep I includes a single ¼” and one combined ¼” and XLR input jack.
- Multi-platform audio interface with dual inputs and outputs
- Supports up to 24bit/192kHz high-resolution audio
- Microphone, line-in, and high-impedance value instrument support
- 48V phantom power available for condenser microphone
- Zero-latency direct monitor and DAW monitor can be adjusted individually or mixed
- Switchable stereo/mono direct monitor provides more possibilities for input signal monitor
- Individual adjustment of monitor volume level and headphone output volume level
- Can be powered by via USB port or USB power supply
Specification
| Frequency Response (20 Hz to 20kHz) | ＜±0.07dB |
| THD+N | ＜0.0094%（minimum gain, -1 dBFS input with 22 Hz/22 kHz bandpass filter） |
| Maximum Input Level（minimum gain level） | +11 dBu |
| Gain Range | 50dB |
| Input impedance | 1.5M ohm |
| Line Outputs | |
| Output Jack | 1/4" TRS jack*2（support balanced signal） |
| Dynamic Range | ＞108dB（A-weighted） |
| Maximum Input Level（minimum gain level） | +5.746 dBu |
| THD+N | ＜0.019%（minimum gain，-1 dBFS input with 22 Hz/22 kHz bandpass filter） |
| Input impedance | 430 ohm |
| Headphone Outputs | |
| Output Jack | 1/4" TRS jack*1 |
| Dynamic Range | ＞104.9dB |
| Maximum Input Level（minimum gain level） | +9.738 dBu |
| THD+N | <0.002%（minimum gain，-1 dBFS input with 22 Hz/22 kHz bandpass filter） |
| Output impedance | <1 ohm |
