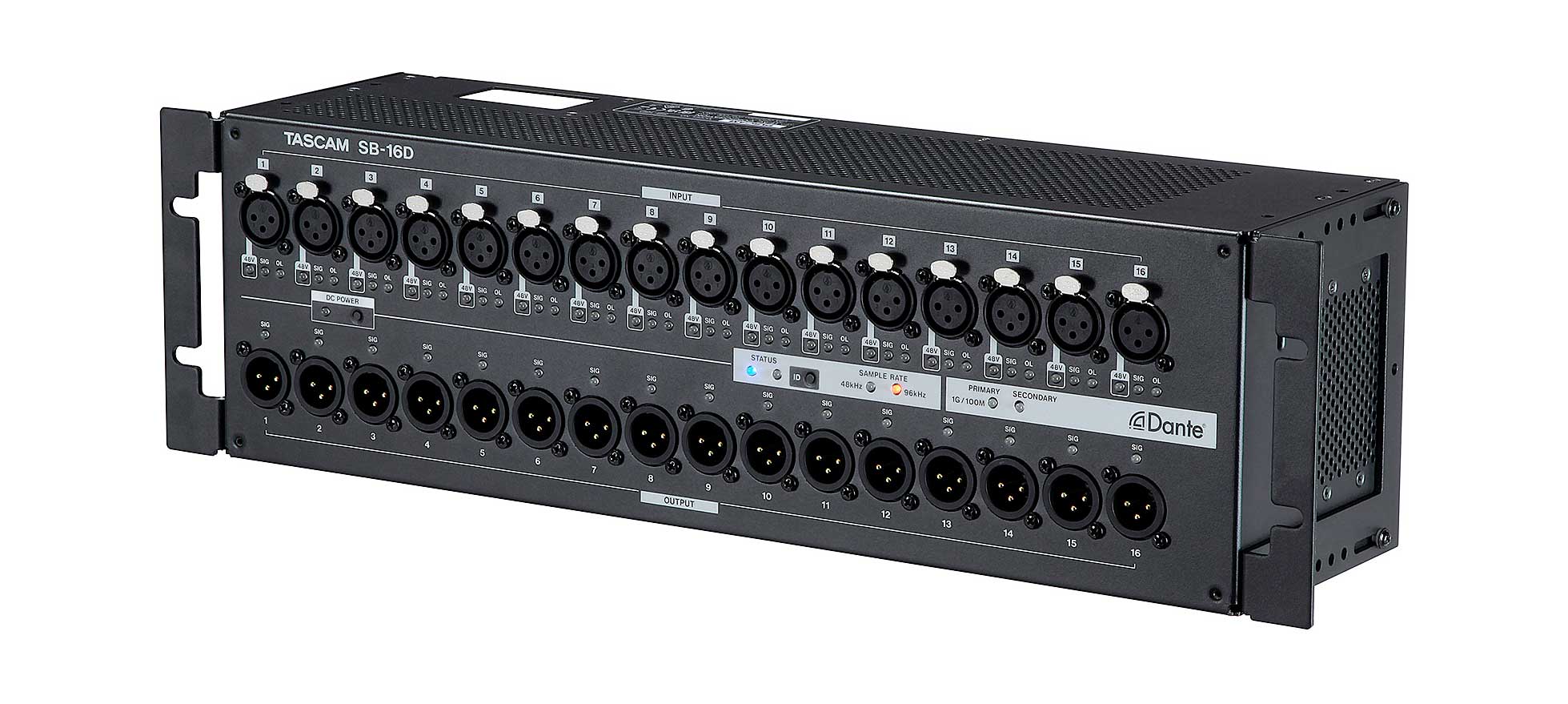

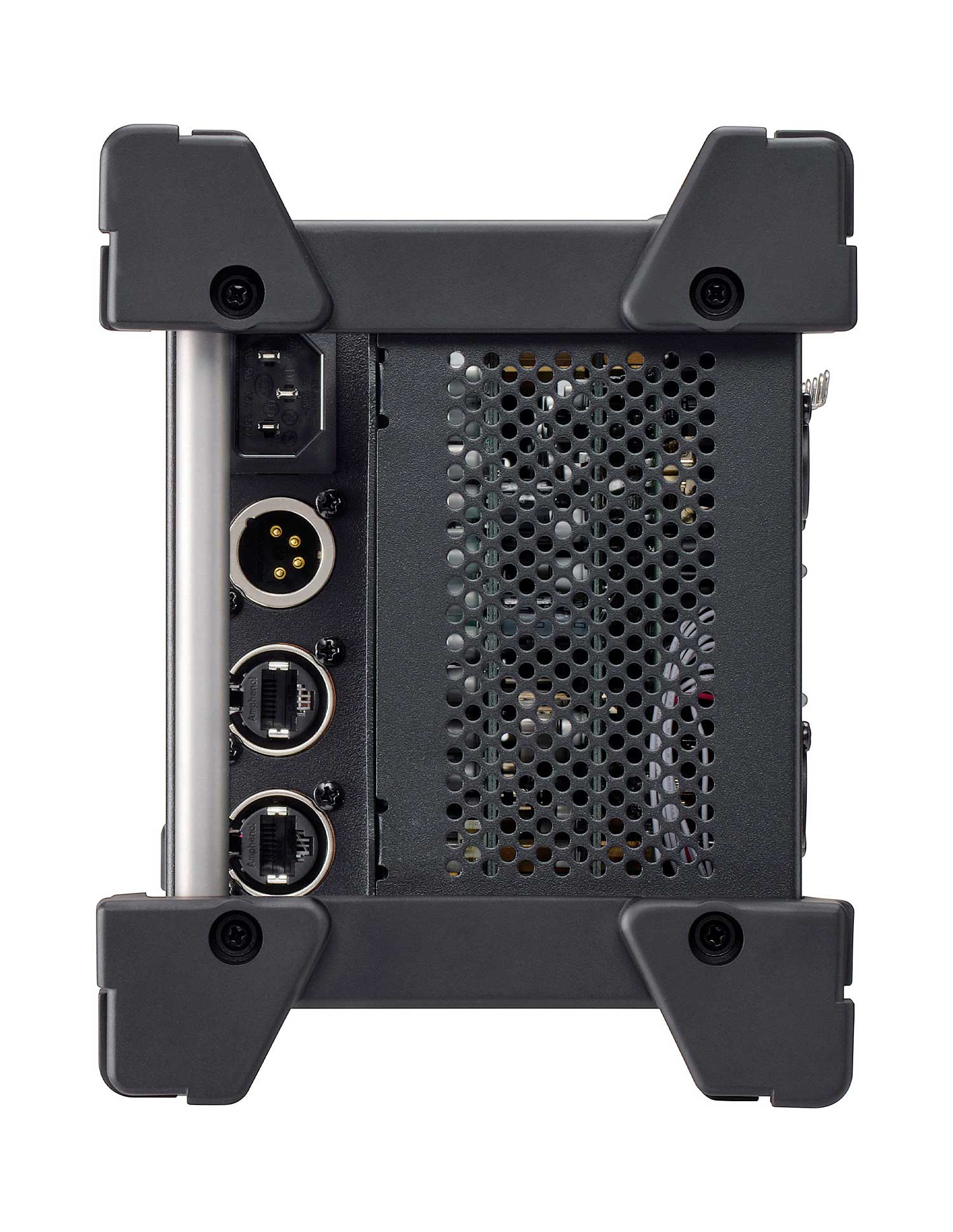

Tascam SB-16D 16 In/16 Out Dante Stagebox
Image Gallery
£2,590.00
Out of Stock
Please contact us for an estimated delivery time.Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: sb16d
The SB-16D is a Dante-enabled active stage box with 16 analogue inputs and 16 analogue outputs. As an analogue interface equipped with 32-bit A/D converters and Class 1 HDIA microphone preamps, the SB-16D captures your audio in the highest quality right at the beginning of the signal path. You can use multiple devices simultaneously in a Dante network – placed on the floor or mounted in a rack.
Having the same performance and hardware quality as Tascam Sonicview live recording consoles, the SB-16D offers all the advantages of Dante networking, combined with seamless integration with Sonicview mixers and other Dante-enabled products from Tascam – and other manufacturers.
Specification
- Dante-enabled stage box and interface with 16 analogue audio inputs and outputs
- Redundant Dante operation using Primary/Secondary lines
- Equipped with etherCON-compatible connectors
- Support for Dante Domain Manager
- AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
- Data transfer compliant to SMPTE 2110
- 16 balanced mic/line inputs (XLR) with switchable phantom power (48 V), input signal and overload indicators
- 16 balanced line outputs (XLR) with output signal indicators
- Up to 96 kHz sampling frequency at 32-bit resolution
- Can be positioned on the floor or mounted in a rack (3U)
- Fully controllable from connected Sonicview mixer
- Remote control and offline editing using Tascam IO Control software for Windows, macOS and iPadOS
- Selectable reference level
- GPIO interface with eight inputs and outputs, expands to 16 inputs and outputs when connected to a Sonicview mixer
- Selectable LED brightness
- DC input for redundant power supply (DC power supply not included)
| Analogue Audio Inputs and Outputs | |
| Mic/Line inputs (balanced, INPUT 1–16) | XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| Maximum input level | +12 dBu (TRIM at minimum, Pad off) +32 dBu (TRIM at minimum, Pad on) |
| Minimum input level | –62 dBu (TRIM at maximum, Pad off) –42 dBu (TRIM at maximum, Pad on) |
| Input impedance | ≥5 kΩ |
| Line outputs (balanced, OUTPUT 1–16) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Maximum output level (selectable) | +15 dBu (Ref(D): –9 dBFS, Ref(A): +6 dBu) +18 dBu (Ref(D): –14 dBFS, Ref(A): +4 dBu) +20 dBu (Ref(D): –16 dBFS, Ref(A): +4 dBu) +18 dBu (Ref(D): –18 dBFS, Ref(A): 0 dBu) +20 dBu (Ref(D): –20 dBFS, Ref(A): 0 dBu) +22 dBu (Ref(D): –18 dBFS, Ref(A): +4 dBu) +24 dBu (Ref(D): –20 dBFS, Ref(A): +4 dBu) |
| Nominal output level (selectable) | +6 dBu (Ref(D): –9 dBFS) +4 dBu (Ref(D): –14 dBFS, –16 dBFS) +4 dBu or 0 dBu (Ref(D): –18 dBFS, –20 dBFS) |
| Output impedance | ≤100 Ω |
| Digital Audio Inputs and Outputs | |
| Dante PRIMARY/SECONDARY | etherCON Cat5e compatible |
| Number of audio channels | 64 channels (48 kHz) 32 channels (96 kHz) |
| Supported modes | Redundant mode, Switched mode |
| Compatible standard | Gigabit Ethernet (1000BASE-T, IEEE 802.3ab) |
| Recommended cables | Cat5e STP or better |
| Control Inputs and Outputs | |
| GPIO | 25-pin D-sub (8-in/8-out, female, inch-standard) |
| Input circuit | Pull-up (5 V) |
| Output circuit | Open collector Output impedance: 10 Ω Voltage resistance: 20 V Maximum output current: 35 mA |
| Maximum supply current (+5 V) | 50 mA |
| Audio Performance | |
| Mic amp EIN (equivalent input noise) | ≤–128 dBu |
| Frequency response (Mic/Line or Dante input to Line output) | 20 Hz – 20 kHz: +0 dB, –0.5 dB (48 kHz, JEITA) 20 Hz – 40 kHz: +0 dB, –1.0 dB (96 kHz, JEITA) |
| Dynamic range | ≥110 dB (Mic/Line input to Dante output, PAD off, TRIM min.,
Ref(D) –20 dBFS, JEITA) ≥111 dB (Dante input to Line output, 48 kHz, JEITA) ≥112 dB (Dante input to Line output, 96 kHz, JEITA) |
| Distortion | ≤0.002 % (Mic/Line input to Dante output, +4 dBu input signal,
PAD off, TRIM min., JEITA) ≤0.002 % (Dante input to Line output, 0 dBFS output, JEITA) |
| Crosstalk | ≥–100 dB (Mic/Line input to Line output, 1 kHz sine wave, JEITA) |
| Power Supply and Other Specifications | |
| AC Power Supply | AC 100–240 V, 50/60 Hz |
| DC Power Supply | DC 11 V / 4 A to DC 27 V / 2 A |
| Power Consumption | 44W |
| Overall Dimensions | Feet attached: 454 mm × 140 mm × 180 mm Rack ears attached: 483 mm × 132 mm × 120 mm |
| Weight | 4.5kg |
| Permissible operating temperature range | 0–40 °C |
