Alto ZMX862 Mixing Desk

£69.00 In Stock

Delivery Tomorrow

Click and Collect available

Alto ZMX862 Mixing Desk

RRP £79.99 Save £10.99

£69.00

In Stock

3 Available

Order before 1PM for Delivery Tomorrow

Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Wednesday
Glasgow
In Stock, Collect Today
Newcastle
Collect on Wednesday
Birmingham
Collect on Wednesday
Epsom
Collect on Wednesday
Camden
Collect on Wednesday

Frequently Bought Together


Total Price: £

Hot Deals

Bundle Price: £172.99

Was: £182.99
You Save: £10.00

Manufacturer's ID: Alto Zephyr ZMX862

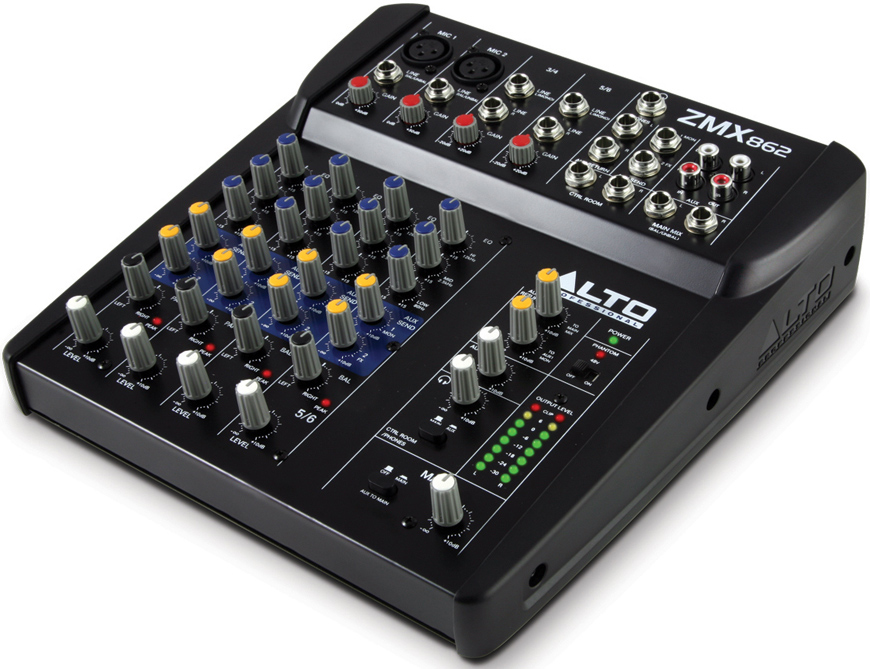

The ZEPHYR ZMX862 is an 6-channel, 2-bus mixer with the right amount of inputs, outputs, routing, and EQ for more intimate live performance reinforcement situations. It features two microphone inputs (with Phantom Power) with balanced TRS jacks, a three-band EQ and two AUX sends on each of the two mono channels and the two stereo channels, and even two-track inputs for things such as audio playback. The ZMX862 is the perfect compact take-anywhere professional mixer.

Specification

Versatile Inputs and Outputs
The ZMX862 is a step up from our ZMX52 that adds more inputs and an extra band of EQ as well as a switch for phantom power. Not only can you can plug dynamic, condenser, and wireless microphones into the first two channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE inputs. But, you also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, TV screen, or any number of sources. Choose the ZMX862 as the audio central command for your live performances, home studio, or video suite.

High headroom, low noise
Just because the ZMX862 is compact, portable and affordable doesn't mean you have to make sacrifices. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.

Visualize your mix
We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

TECH INFORMATION
  • Input Channels: Mono channels (Ch. 1 - 2)
  • Microphone Input: Electronically balanced, discrete input configuration
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion (THD&N): ?0.005% at +4 dBu, 1 kHz
  • Gain range: 0 dB to 50 dB (Mic)
  • Maximum Voltage Gain: 70 dB Ch. Mic Input?Main MIx out & Tape out, 80 dB Ch. Mic input?Control room & Phones, 60 dB Ch. Mic input?Aux send
  • SNR (Signal to Noise Ratio): ?110 dBu
  • Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control
  • Line Input: Electronically Balanced
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion (THD&N): ?0.005% at + 4 dBu, 1 kHz
  • Gain Range: 15 dBu to 35 dBu
  • Stereo Channels: (Ch. 3 - 6)
  • Line Input: Electronically Balanced
  • SNR (Signal to Noise Ratio): ?110 dBu
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion (THD&N): ?0.005% at + 4 dBu, 1 kHz
  • Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line ? Main Mix out
  • Maximum Voltage Gain: 20 dB FX return ? Main Mix out, 20 dB RCA Tape input ? Main Mix out
Impedance
  • Microphone Input: 3.9 kOhms
  • All Other Inputs: 10 kOhms or greater
  • Tape Out: 1 kOhms
  • All Other Outputs: 120 Ohms
Equalization
  • Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
  • Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Main Mix Section
  • Tape, Aux, Phones Output
  • Output level: 0 dBu Unbalanced, 1/4" jacks, Max out +22 dBu Unbalanced, 1/4" jacks noise (Bus Noise): ?-90 dB @ 20 Hz - 22 kHz (channel & Main level at 0 dB, other at minimum, DSP mute)
  • Power supply: 18 V, 1500 mA
  • Rated Power Consumption: 18 W
  • Dimensions (WxLxH): 202mm x 250mm x 58mm
  • Weight: 3.75 lb
