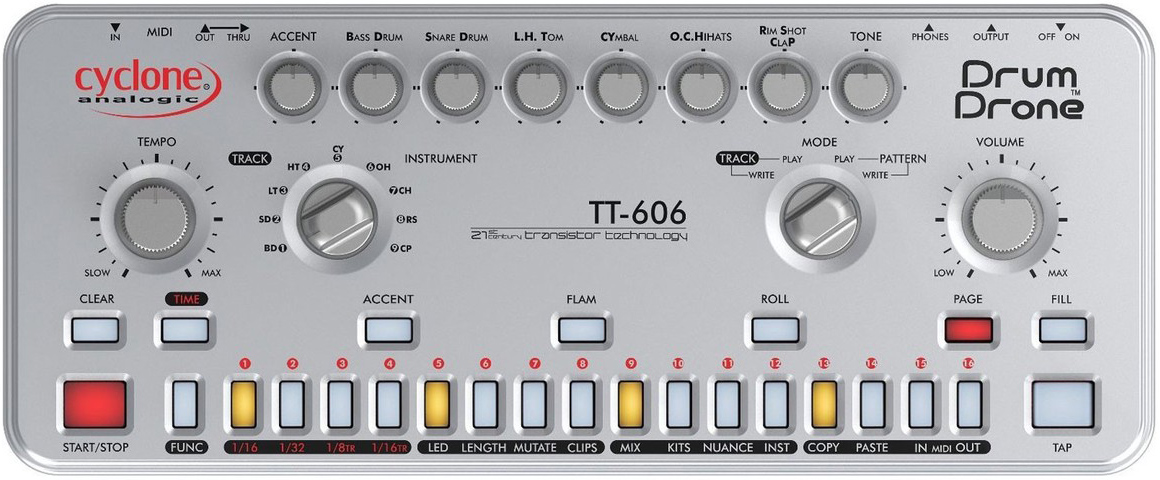

Cyclone Analogic TT-606 Drum Drone Analogue Drum Machine

£389.00

In Stock: 2 Available

Order Before 3PM for FREE Delivery Tomorrow

Product Overview

The Cyclone Analogic TT-606 Drum Drone is an inspired clone of the TR-606 Drumatix, from Roland. It is an analog drum machine with the classic TR sequencer interface. It contains i... read more

Looking to Spread the Cost?

From £6.23 a month - 9.9% APR

  • Deposit from 0% to 50%
  • Pay over 12, 24 or 36 months
  • Quick & Easy Application
View Monthly Finance Offer

Buy Now, Pay 2018

  • No Deposit
  • Pay nothing up to 12 months
  • Apply in minutes
View Buy Now Pay Later

Product Overview

Manufacturer's ID: 606164010378

The Cyclone Analogic TT-606 Drum Drone is an inspired clone of the TR-606 Drumatix, from Roland. It is an analog drum machine with the classic TR sequencer interface. It contains individual outputs per drum sound, a useful expansion upon the original TR-606 for patching with other modern gear. MIDI In/Out, a headphone jack, and an amplifier send are also available.

Specification

The TT-606 contains all the classic drum sounds from the TR, including Kick, Snare, Low and High toms, Cymbal, open and closed Hihat, Rimshot and Clap, with an adjustable parameter for each sound. Each sound has selectable Accent, Flam, and Roll tracks, for ultimate pattern sequencing.

The sequencer includes multiple choices for subdivisions of the Tempo, including 1/16, 1/32, 8th note triplets, and 16th note triplets. It also has options for shuffle, all of which can be programmed in real time.

Instruments



Bass Drum

Snare Drum

Low Tom

High Tom

Cymbal

Open Hi-hat

Closed Hi-hat

Rimshot

Hand Clap



Main Controls



Tempo Knob

Volume Knob

Track/Instrument Selector Knob

Mode Selector Knob

Accent Level Knob

Tone Knob

MIDI Out / Thru Selector Switch

Power On / Off Switch



Instrument and Submix Level Controls



Bass Drum Snare Drum Toms |

Cymbal | Open+Closed Hi-hat |

Rimshot+Hand Clap



Data Storage



User Patterns: 64 | User Tracks: 9 | User Drum Kits: 32 |

User Clips: 16 per instrument



Operating Modes



Pattern Write | Pattern Play | Track Play | Track Write



Pattern Features



Pattern Length: 1-64 steps

Per-instrument, per-step modifiers: Accent, Flam, Roll

Programmable Fill variation for each pattern

Time scales: 16th note, 32nd note, 8th note triplet, 16th note triplet

Assignable pattern LED color

Pattern Copy / Paste functions



Track Features



Visual track programming system | Maximum Length: 240 bars |

Per-bar fill variation option



Tone Control Parameters



Bass Drum: Tuning

Snare Drum: Snare Snap

Low Tom: Tuning

High Tom: Tuning

Cymbal: Decay Time / Tuning

Open Hi-hat: Decay Time

Closed Hi-hat: Tuning

Rimshot: Timbre

Hand Clap: Density



Global Features



Shuffle Amount | Flam Time | MIDI In / Out channels

Illuminated buttons: 26 | Tap Tempo Input | System LED color

Nuance: Automatic rhythmic Tone variation (per-instrument)



Outputs



Main Mix (1/4" mono, +15dBu)

Headphone (1/4" stereo, +10dBu)

Bass Drum (1/8" mono)

Snare Drum (1/8" mono)

High + Low Tom (1/8" mono)

Cymbal (1/8" mono)

Open + Closed Hi-hat (1/8" mono)

Rimshot (1/8" mono)

Hand Clap (1/8" mono)

MIDI Out / Thru



Inputs



Power (9VDC, 300mA) | MIDI In Negative Tip Barrel



PC Functions



Cyclone Studio application for PC & Mac enables Drum Drone software update and user data backup & restore using MIDI SysEx transfer.



Physical



Dimensions: L310mm x W130mm x H35mm | Weight: Unit 783g

(Boxed with accessories) 1.332kg



Included Accessories



100-240v Universal Power Adapter | Near Invisible Force Field |

Case Transporter Printed User Manual



Available Accessories


7 Lines 1/8 to 1/4 output cable snake |

Triple 100-240v Universal Power Adapter |
