Yamaha DTX M12 Multipad

£419.00 In Stock

FREE Delivery on Monday

Click and Collect available

Yamaha DTX M12 Multipad

Was £549.00 Save £130.00


In Stock

3 Available

Order now for FREE Delivery on Monday

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Buy Now, Pay 2025

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

FREE Delivery on Monday

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Collect on Tuesday
In Stock, Collect Tomorrow
Collect on Tuesday
Collect on Tuesday
Collect on Tuesday
Collect on Tuesday

Manufacturer's ID: JDTXM12UK

What we say:

At A Glance:

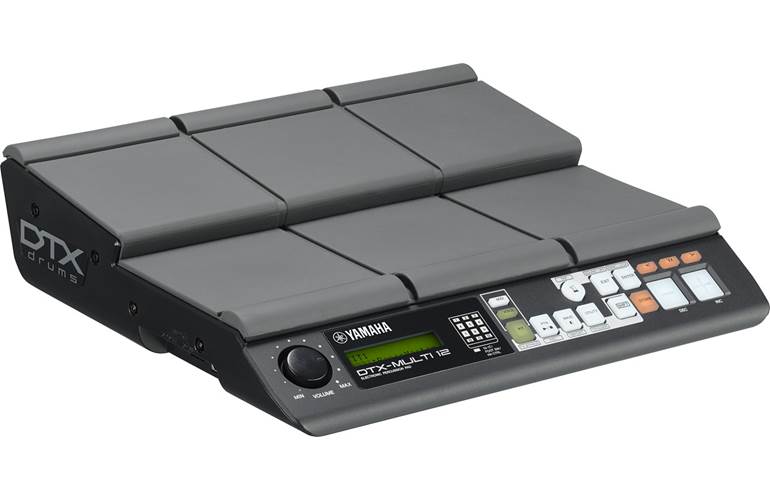

The Yamaha DTX M12 Multipad combines decades of electronic drum experience with state of the art sound and sampling. With 12 velocity-sensitive pads, sounds from Yamaha's flagship Motif synthesizers, audio sampling and pattern recording, the DTX M12 is a feature packed percussion tool that's a hit on stage and in the studio.

Features We Love:

Sounds and Sampling

With 1,277 voices the DTX M12 Multipad possibly has the largest sound library of any percussion pad we've seen. Yamaha have included this huge selection using voices taken from their flagship Motif synthesizer, not just limited to drum and percussion sounds, you're able to select from an extensive library that also includes DJ, electronic, folk and acoustic instrument voices. In addition to the massive sound bank, you can load in your own samples via a USB pen drive. All sounds can be edited, customised with reverb and chorus, and given an organic flair with Yamaha's Variation feature.

Pads and Inputs

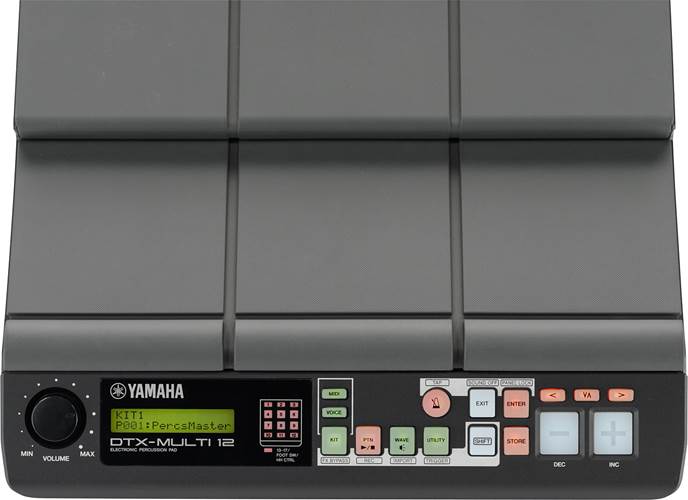

The Multipad features 12 pads in total, with 6 large pads on the main face of the device, 3 on the front lip and 3 curving over the top edge. This not only maximises the amount of sounds available on one patch, it also gives vibe and variety to the playing experience.

The DTX M12 is also fully expandable, with 2 dual zone inputs and a single zone input which can be split into 5 separate single zone inputs. Plus, a hi-hat control input for opening and closing hi-hat sounds and a footswitch input for changing patterns or patches. This gives you a lot of options for using the Multipad with various drum pads and triggers, making it easy to work into your drum and percussion set up or for use as a stand alone electric drum kit for home practice.


One of the Multipad's most unique assets is the pattern feature. In addition to the 128 MIDI patterns from different genres of music, you can record and store your own. Patterns can be assigned to pads and started and stopped simply by striking the designated pad, they can also be tempo mapped using the tap tempo function. The pattern feature can be useful for creating an accompanying layer as part of your performance, recording and listening back during practice or even for using the Multipad like a drum machine.


  • Massive sound library
  • Can be played with hands, fingers and sticks
  • Fully expandable with pads and triggers
  • Can be mounted like a rack tom

What's Included:

  • Yamaha DTX M12 Multipad
  • Power Supply


Built-in pads 12
External inputs 5 (three-zone x 1; monaural x 4)
Maximum Polyphony 64 notes
Voices Drum and percussion: 1,061Keyboard: 216
Effects Variation x 42 types; Chorus x 6 types; Reverb x 6 types: 5-band master equalizer
Drum kits Preset: 50User-defined: 200
Wave memory 100 MB (16-bit linear conversion)
Note Resolution Quarter note / 480
Patterns Preset patterns: 128 phrases (including 3 demo patterns)User-defined patterns: 50 phrases
Sequence capacity 152,000 notes
Recording method Real-time overdubbing
Bit depth 16 bit
Wave memory 64 MB
Maximum size Mono sample: 2 MBStereo sample: 4 MB
Sample formats Proprietary, WAV, and AIFF
Display Backlit LCD with 2 rows of 16 characters

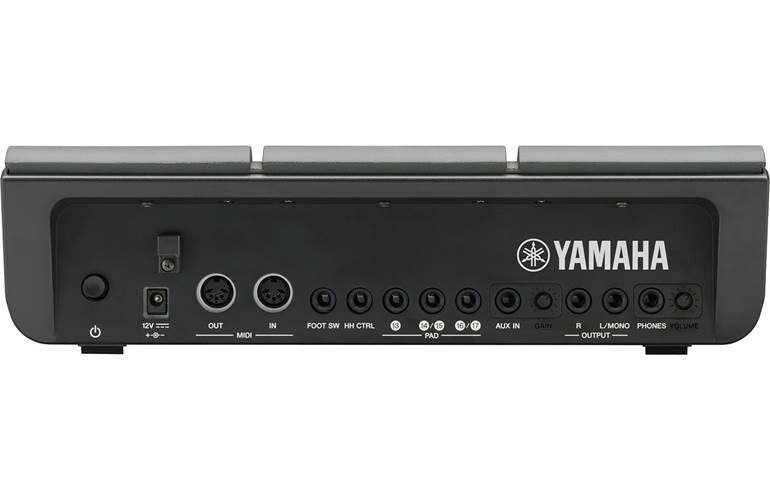

Connectors PAD (13) jack (standard stereo-phone plug; left = trigger, right = rim switch)PAD (14)/(15) and PAD (16)/(17) jacks (standard stereo-phone plug; left = trigger, right = trigger)HI-HAT CONTROL jack (standard stereo-phone plug)FOOT SW jack (standard stereo-phone plug)OUTPUT L/MONO and R jacks (standard phone plugs)PHONES jack (standard stereo-phone plug), AUX IN jack (standard stereo-phone plug), MIDI IN and OUT connectors, USB TO HOST port, USB TO DEVICE port, and DC IN.
Package Contents Power adaptor (PA-5D or an equivalent recommended by Yamaha), Owner's Manual , Data List booklet, DVD-ROM (Cubase AI5)
Pad functions Increment or decrement of drum kit, pattern, or tempo; tap tempo; switching on or off of click-track; transmission of control change messages
Tempo 30 to 300 BPM. Tap tempo functionality
Beats 1/4 – 16/4, 1/8 – 16/8, 1/16 – 16/16
Note timing Accent notes, quarter notes, eight notes, sixteenth notes, triplets
Dimensions Width: 345mm
Height: 96mm
Depth: 319mm
Weight 3.3kg
