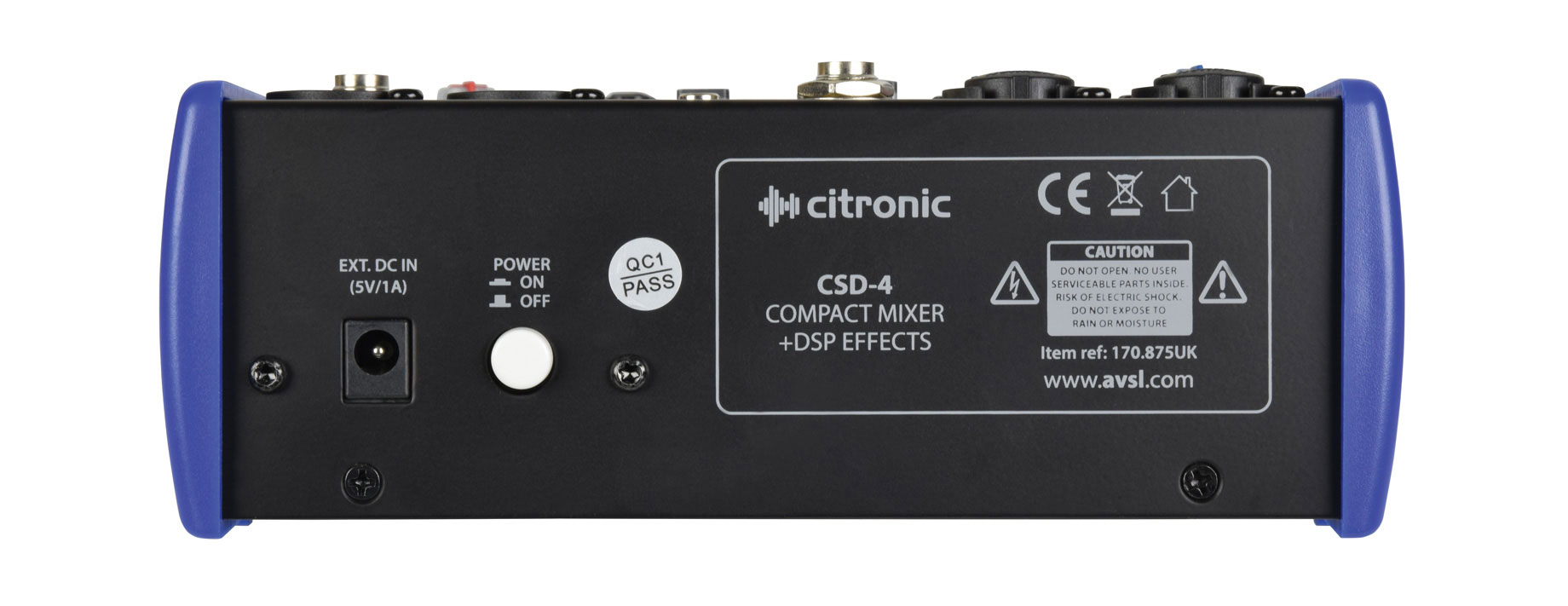

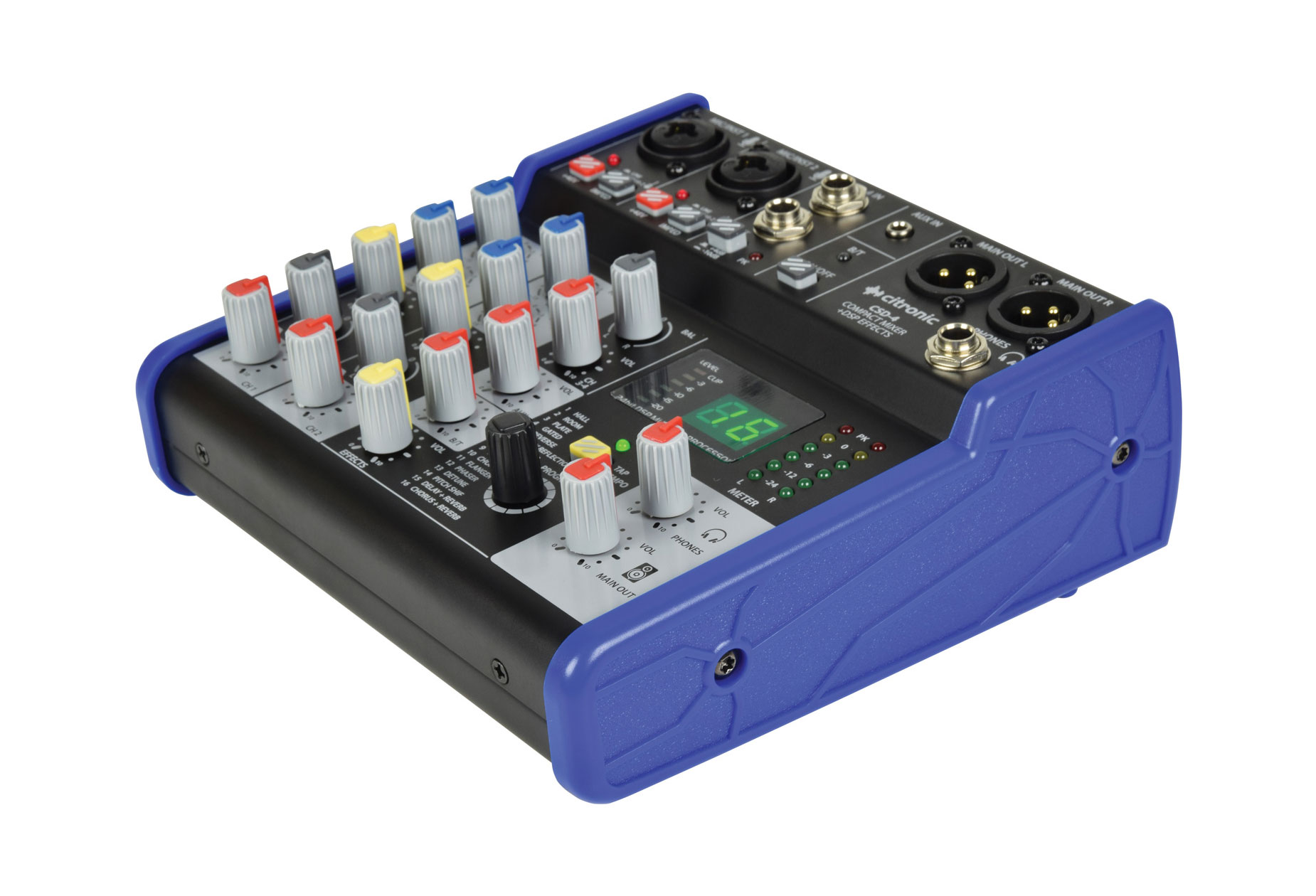

Citronic CSD-4 Compact Mixer with Bluetooth Wireless and DSP Effects

RRP £99.00 Save £14.12


In Stock

2 Available

Order before 4PM for Delivery Tomorrow

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Collect on Wednesday
Collect on Wednesday
Collect on Wednesday
Collect on Wednesday
Collect on Wednesday
Collect on Wednesday

Frequently Bought Together

Total Price: £

Manufacturer's ID: CSD4

Compact format audio mixer with 4 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • Bluetooth pairing for smartphone or tablet
  • 16 program, 24-bit DSP effects engine
  • Individually switchable +48V phantom power


Effects 16 program DSP (24-bit sigma-delta, 40kHz)
Power supply 5Vdc 1A (adaptor included)
Output Left + Right balanced XLR
Audio source Bluetooth receiver
Bluetooth version 2.1 + EDR
Power consumption max 5W
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Phantom power +48V individually switchable (XLR inputs only)
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Frequency response 20Hz - 20kHz (±0.5B)
THD +N <0.03% @ 1kHz
Dynamic range 102dB
Crosstalk : stereo 92dB
Output impedance 120 Ohms
Max. output level 3Vrms
Inputs 2 x combo XLR/jack + stereo jack
Dimensions 171 x 166 x 66mm
Weight 0.92kg
