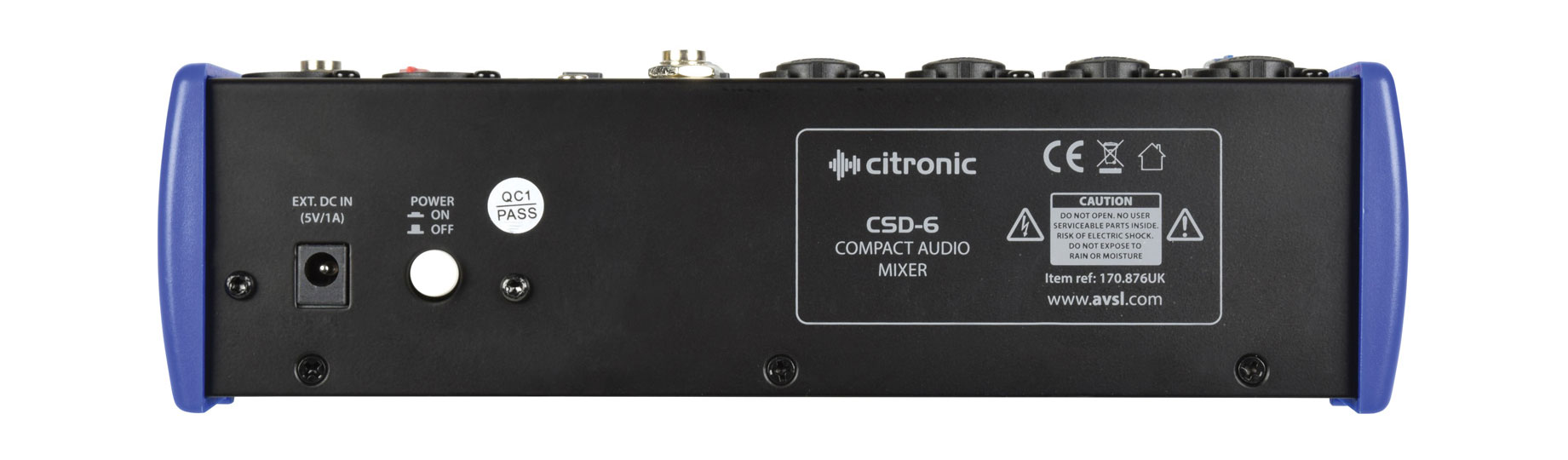

Citronic CSD-6 Compact Mixer with Bluetooth Wireless and DSP Effects
Image Gallery
RRP £109.00 Save £10.00
£99.00
In Stock
Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: CSD6
Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
- Bluetooth pairing for smartphone or tablet
- 16 program, 24-bit DSP effects engine
- Individually switchable +48V phantom power
Specification
| Effects | 16 program DSP (24-bit sigma-delta, 40kHz) |
| Power supply | 5Vdc 1A (adaptor included) |
| Output | Left + Right balanced XLR |
| Audio source | Bluetooth receiver |
| Bluetooth version | 2.1 + EDR |
| Power consumption max | 5W |
| EQ: low | ±15dB @ 80Hz |
| EQ: high | ±15dB @ 12kHz |
| Phantom power | +48V individually switchable (XLR inputs only) |
| Input impedance : mic | 2k Ohms |
| Input impedance : instrument | 1M Ohms |
| Input impedance : line | 20k Ohms |
| Frequency response | 20Hz - 20kHz (±0.5B) |
| THD +N | <0.03% @ 1kHz |
| Dynamic range | 102dB |
| Crosstalk : stereo | 92dB |
| Output impedance | 120 Ohms |
| Max. output level | 3Vrms |
| Inputs | 4 x combo XLR/jack + stereo jack |
| Dimensions | 224 x 166 x 66mm |
| Weight | 1.19kg |
