NUX Edge Delay Effect Mini Pedal

RRP £79.00 Save £10.00


In Stock

Order before 4PM for Delivery Tomorrow

Includes Extended Exchange & 3-Year Warranty

Buy with confidence: We're the only UK guitar retailer to offer a 3-year warranty & extended Christmas exchange as standard.
Buy today and exchange until 31st January 2024
Learn More

Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Collect on Saturday
Collect on Saturday
Collect on Saturday
Collect on Saturday
Collect on Saturday
Collect on Saturday

Manufacturer's ID: 173.552UK

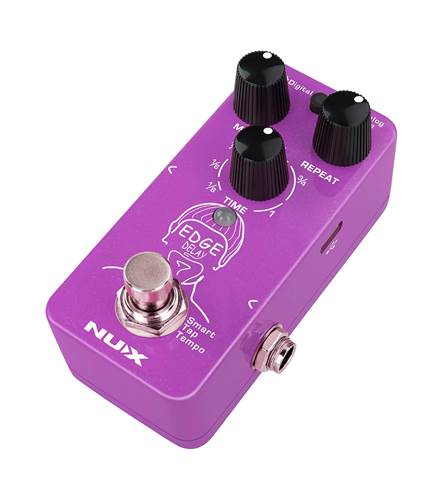

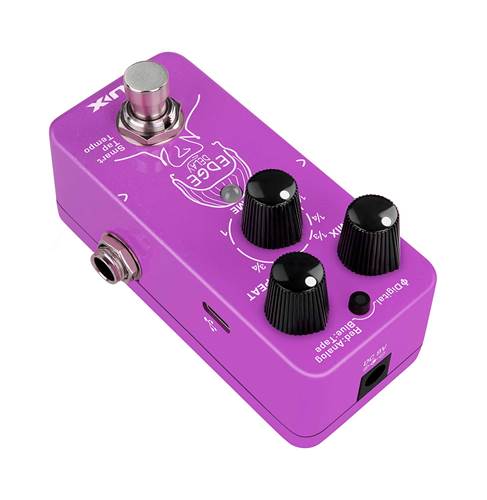

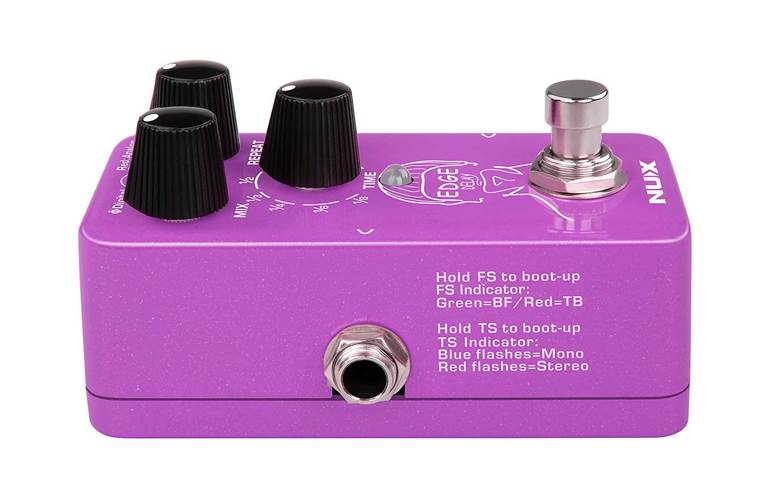

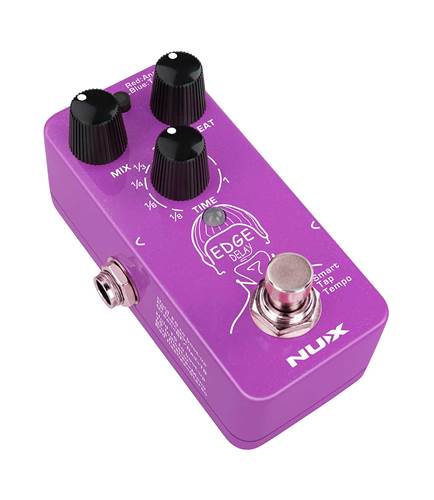

Edge is a mini delay effect pedal with 3 switchable modes for Phi Digital Delay, Analog Delay and Tape Echo. Phi Digital Delay has a tapped repeat for a musical and rhythmic effect. Analog emulates bucket brigade device effects with softly degrading repeats which fade out gently. Tape Echo is a simulation of the magnetic tape loop machines of the 60s and 70s, again producing a more organic and polite echo effect with tone-tempered repeats. All 3 are selected by an illuminated push button above the controls. Holding this button down during power-up selects between mono output or stereo output, which requires a stereo jack lead. Controls include Time, Repeat aned Mix to adjust each effect as required, Pressing the footswitch engages or disengages the effect. The smart tap tempo feature means that the pedal recognises pressing the footswitch twice or in a short space of time and responds to the timing as a tap tempo function to adjust the time setting. Three distinct delay effects for a wide range of music styles.

  • Selectable Phi Delay, Analog and Tape Echo modes
  • Buffered or true bypass selectable
  • Strong and lightweight aluminium die-cast chassis

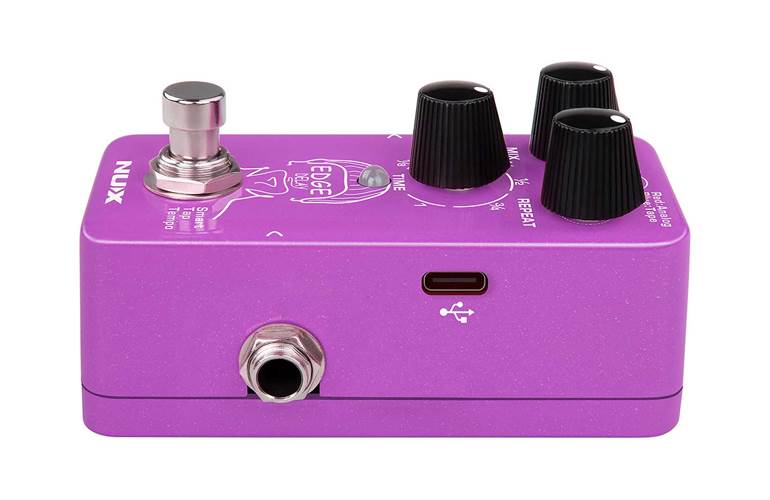

  • USB-C port for future firmware updates
  • Requires 9V center negative DC Power Supply 100mA current draw (Not Supplied)

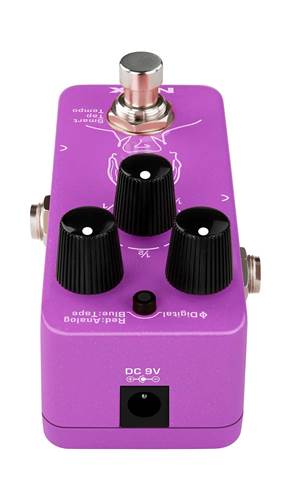

  • Power supply - 9Vdc (DC5521 connector, negative centre, adaptor not supplied)
  • Controls - Time, Repeat, Mix and Phi Delay/Analog/Tape Echo switch
  • Dimensions - 94 x 53 x 51mm
  • Weight - 175g
