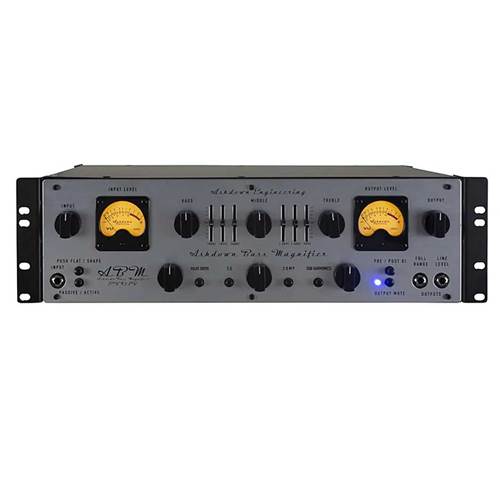

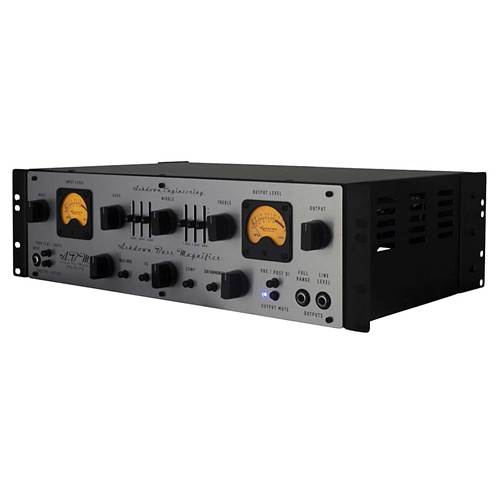

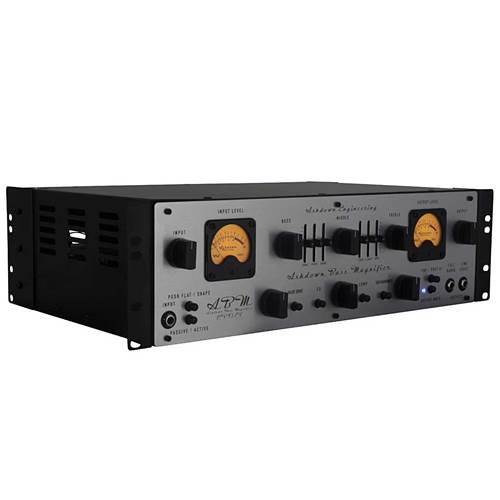

Ashdown 600w ABM EVO IV Dual VU Rack Bass Magnifier Valve Amp Head

Was £1,198.80 Save £199.80

£999.00

In Stock

2 Available

Order before 4PM for FREE Delivery Tomorrow

Includes Christmas Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended Christmas Exchange as standard.
Buy now and exchange until 31st January 2025

Make up to 4 payments of £249.75 No fees.
Learn more about Klarna and Clearpay
18+, T&C apply, Credit subject to status.

Pay Monthly

  • From £21.76 a month
  • Deposit from 0% to 40%
  • Pay over 12, 24 or 36 months
Apply Now

Buy Now, Pay 2025

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

FREE Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Saturday
Glasgow
In Stock, Collect Today
Newcastle
Collect on Saturday
Birmingham
Collect on Saturday
Epsom
Collect on Saturday
Camden
Collect on Saturday

Frequently Bought Together


Total Price: £

Manufacturer's ID: ABM-600-DR-EVO IV

Elevate your bass game to new heights with the Ashdown ABM 600 Dual VU Rack Head. Recognizable by its glowing VU meter, this industry-standard powerhouse has evolved into its fifth incarnation, the EVO IV. Featuring a class-leading preamp, a robust 600W power stage, and a new 9-band EQ, it's designed for the road, built with a 3U rack chassis made from 2mm mild steel.

The Variable Valve Drive Plus takes you from clean to overdrive with precision, while the 9-band EQ lets you sculpt your sound. With an Input VU meter, you can quickly find your instrument's sweet spot. The One Knob Dynamic Compressor and Sub-Harmonic Generator add depth and punch to your bass, and professional connections ensure flexibility.

Elevate your bass performance with the ABM 600 Dual VU Rack Head. Unleash the beast.

Variable Valve Drive Plus – from zero to rock hero!
Our Variable Valve Drive preamp section has also been upgraded in EVO IV. Delivering more current to the 12AX7 tube enables more drive and harmonic content than ever before, enabling players to dial in a sound from pristine clean, to the fattest, fullest bass overdrive currently available. The Drive level can be preset and kicked in and out via footswitch, providing access to a huge range of clean, warm and overdriven tones.

The best EQ in the business, just got better!
Bassists plugging into EVO IV will be greeted straight away by the flickering of the new Input VU meter, allowing them to quickly find the sweet spot for their instrument. From there, EVO IV features a sophisticated 9-band EQ, with familiar Bass, Middle and Treble controls and six sliders providing precision cut and boost at 100Hz, 180Hz, 340Hz, 1.3KHz, 2.6KHz and 5KHz. The EQ can be switched in via footswitch taking the player from a flat fretless sound to their favourite EQ setting instantly. The NEW 9-band EQ is a revelation of sonic perfection and will surprise older ABM users.

One knob compressor
Other ABM favourite features are retained in EVO IV, including Ashdown’s famous One Knob Dynamic Compressor sub octave note for huge bass tones. Kick it in and this simple to use, great sounding compressor delivers a powerful, even sound, guaranteed to help your bass fill out any mix.

Sub-Harmonic Generator
Once heard – never forgotten. The ABM Sub-Harmonic generator adds an octave below the notes being played bringing fullness to any bass part. The Sub level is independently controllable, letting you dial in anything from a subtle hint of deep bass to a full-on subterranean funk.

Professional Connections

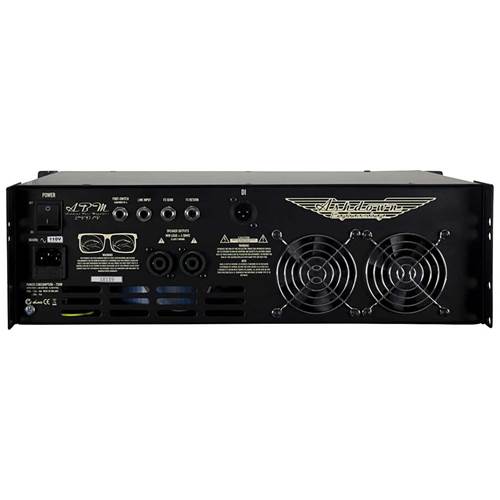

Not that you'd expect any less, ABM is loaded with connectivity. A tuner output, Line out, transparent FX loop and a Line Input for the connection of an external sampler or sound source. Output muting cuts the signal from the DI output but leaves the tuner output 'live', allowing the player to tune up in silence.

Flexible Footswitching
Paired with our FS-4 footswitch (not included) the ABM comes alive for onstage use, enabling on-the-fly tonal gearshifts. With footswitchable Valve Drive, Compression, EQ and Sub Harmonic Generator, ABM puts dozens of sound combinations at your feet, without so much as an effect pedal in sight.



Specification

Power Output 600 Watts
Power Requirement 115-230 Volts
Speaker Outputs 4 x Jack/Speakon outputs
Frequency Response -3dB @ 17Hz und 30KHz
High Instrument Input Impedance 3.9m Ohms, input range 150mV
Low Instrument Input Impedance 10k Ohms, input range 300mV - 40V p-p
Line Input Impedance 22k Ohms, input level 0dBu nominal
DI Output 600 Ohm balanced, Level 0dBu nominal
Tuner Output Impedance 22k Ohms, Level 0dBu nominal
Impedance Minimum 4 Ohms Per Side
Effects Send Impedance 22k Ohm, Level 0dBu nominal
Effects Return Impedance 22k Ohms, Input Level 0dBu Nominal
Output Tubes 1 x 12AX7
H x W x D (mm) 135 x 474 x 320
Weight (kg) 12.5
