Dod Drag Analogue Delay

The DOD DRAG is an analog delay pedal that not only pushes sonic boundaries, but goes far beyond the capabilities of any standard delay pedal. From a quick rockablilly slapback delay to long, drifting, LFO-enriched psychedelic oscillation, DRAG exceeds all expectations. The Two new patent-pending SlideStop & Evade Friction categories, engaged by holding down the footswitch to bring your signal to a screeching halt & reaccellerating as you release it, captures the exhileration of fast-paced street racing. These “never been done before” features redline its all-analog engine beyond reaonable limits. The third Friction category is borrowed from DRAG’s big brother with its “Rubbernecking ” mode providing octave up & octave down pitch bending capablities. The FRICTION knob gives you full control over the speed of your manuevers. The DRIFT knob, in a sense, adjusts the drift dynamics of your street bike - that is, the speed and depth of the drift. You, as the rider, also have complete freedom over your drifting (modulation) style using the Curve control. Includes the new patent-pending reversible StagePlate enabling optimized grip for various track conditions.

Features

• Analog BBDs with 750ms delay time (1.5 Sec when “Rubbernecking”)
• Time Warping Effects
  • Rubberneck Up/Down
  • SlideStop Shallow/Deep
  • Evade "HopStop/Slide-n-Go"
• Controllable Runaway Oscillation

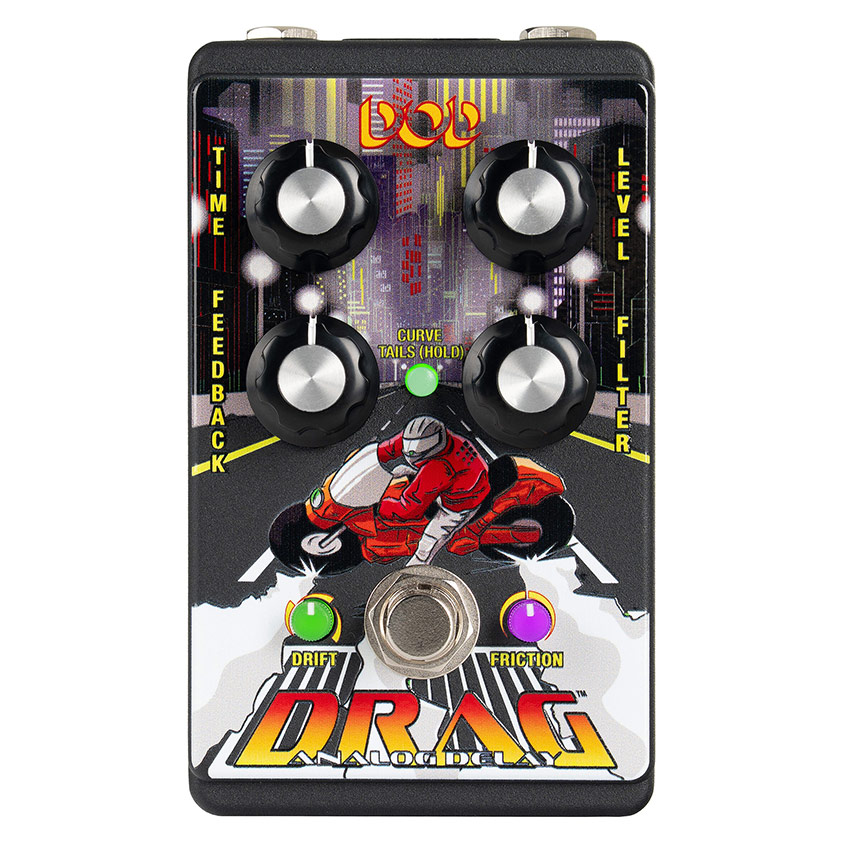

• 6 Rotary Controls - Time, Feedback, Filter, Level, Drift, Friction
• 4 Modulation waveforms - Sine, Reverse Saw, Square, Random
• 3 Modulation Speed/Depth Ranges- Light, Medium, Heavy

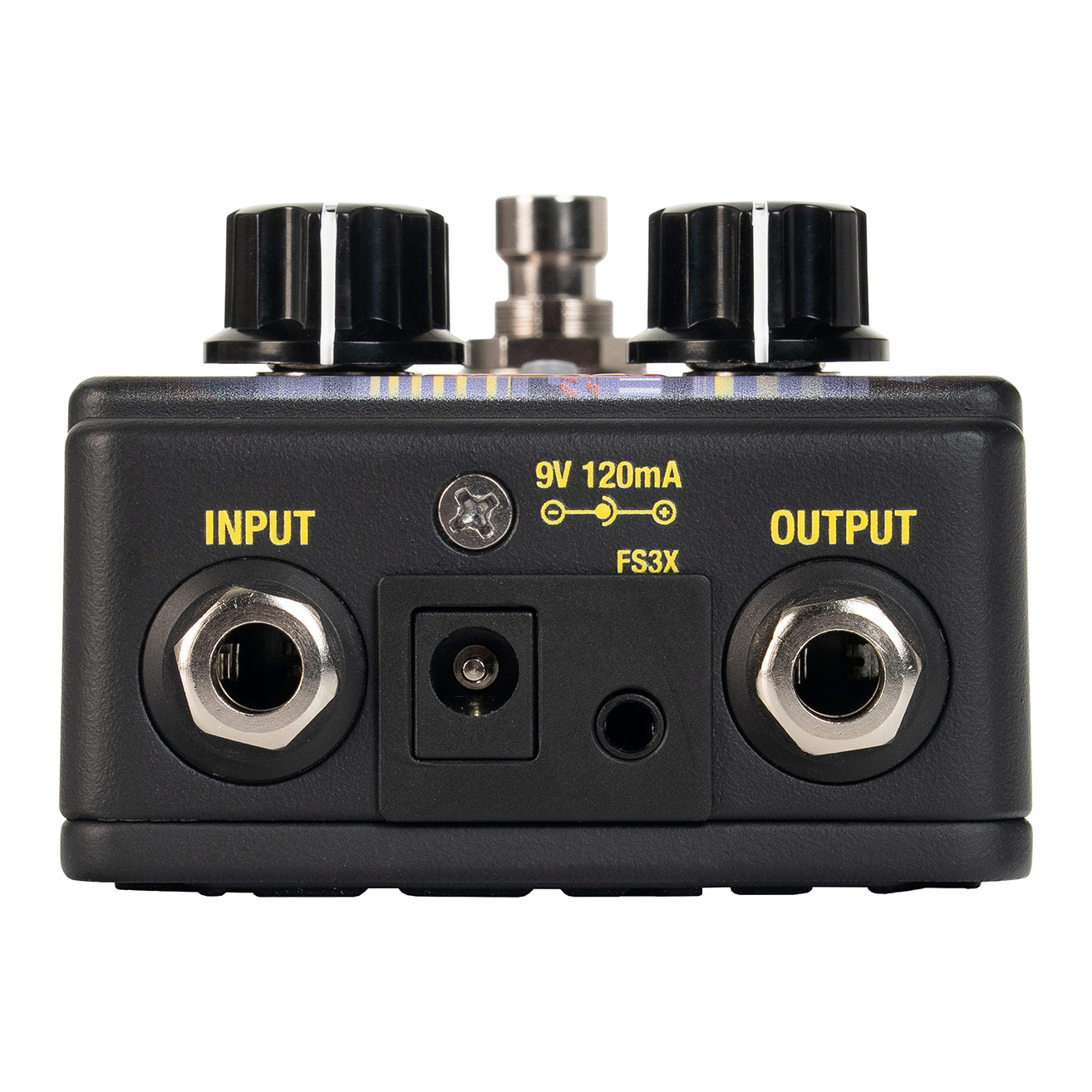

• Top-jack chassis design
• 3.5mm input enables full DRAG functionality w/ optional FS3X
• Standard +9V DC tip-negative barrel jack
• Reversible StagePlate
• True Bypass

StagePlate

The DOD DRAG Analog Delay is equipped with a revolutionary reversible StagePlate that enhances flexibility and usability for musicians. This unique design allows users to effortlessly switch between two sides: the Tire Tread Skid Pad and the Hook side.

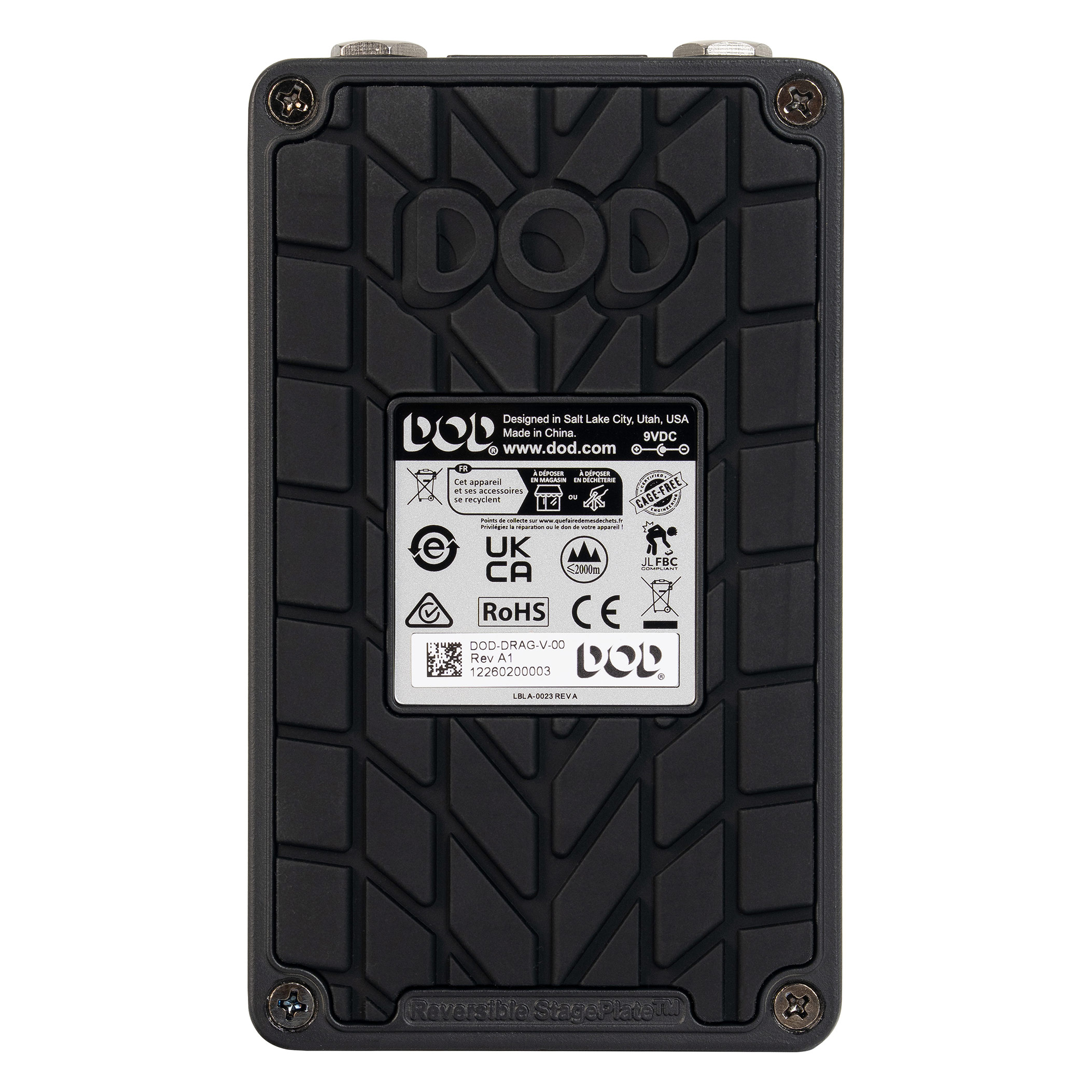

Tire Tread Skid Pad: The pedal ships with our new (patent-pending) 2-sided StagePlate installed, with a Tire Tread Skid Pad exposed when shipped. This provides stable grip on most surfaces when activating the footswitch.

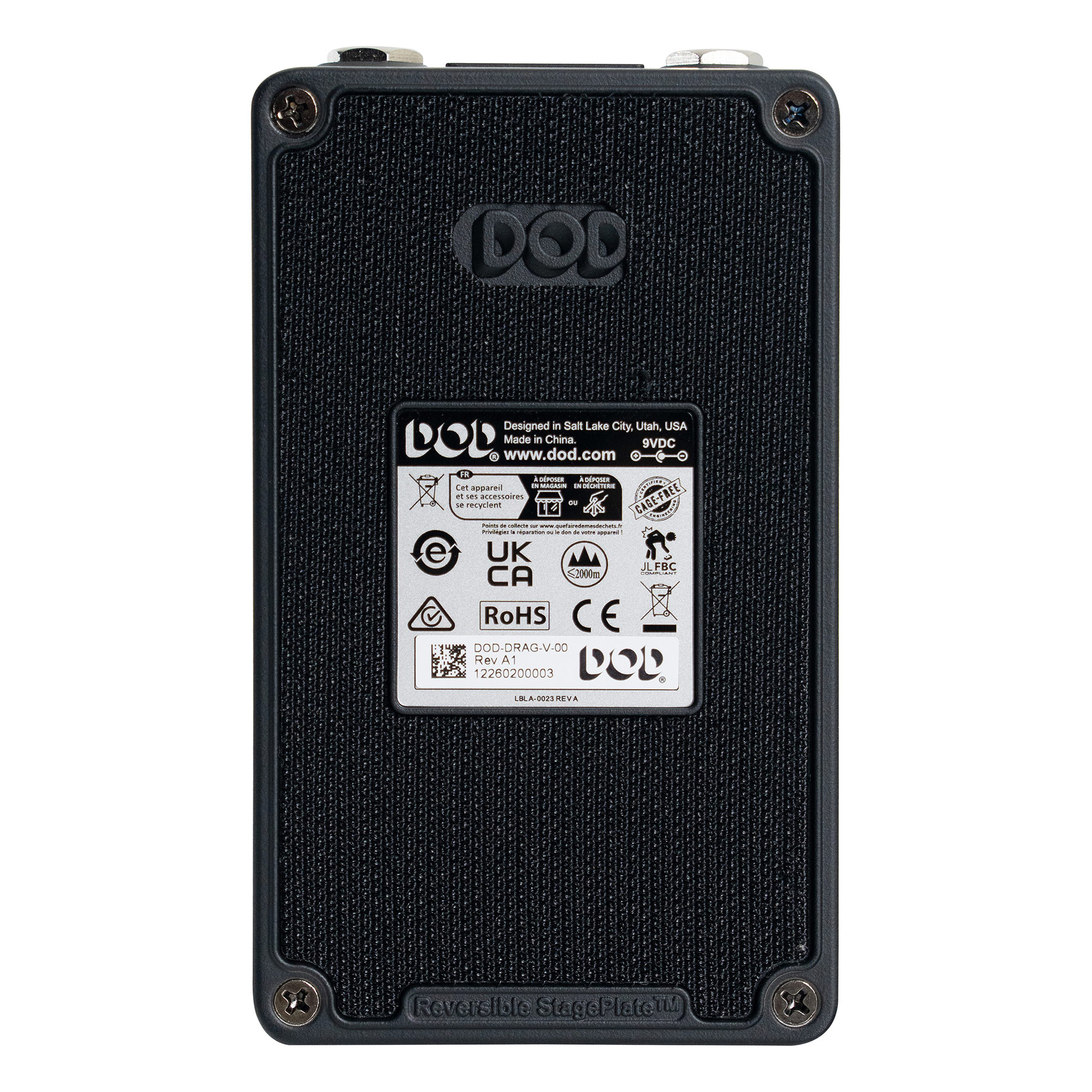

Hook Side: The StagePlate can be flipped over to expose the opposite side which has a pre-installed “hook” pad intended to mate with the “loop” material to secure pedal to a pedal board. To flip the StagePlate to the hook side, simply remove the four StagePlate screws, flip the StagePlate over, then reinstall the screws.

With the DOD Stage Plate versatile design, you can enjoy both reliability and convenience.
