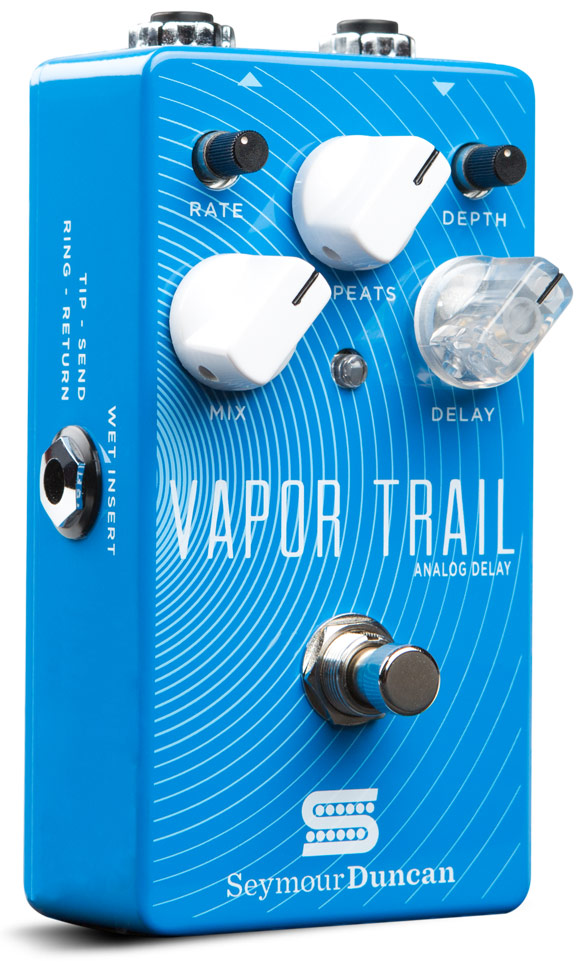

Seymour Duncan Vapor Trail Analog Delay
Manufacturer's ID: 1611900-002
SpecificationA TRS insert jack allows you to add effects to the wet signal (loop the wet delay sound through a flanger, chorus, or other type of effect). You can also use this jack to output a wet-only signal for parallel effect loops or multi-amp setups, or you can plug in any standard volume-type pedal, crank the Mix knob to full, and vary the amount of wet signal from none to full-wet using the pedal. At maximum Wet setting, the first echo is actually 3dB louder than the dry signal.
To round out the special features on this unit, we've made the Delay knob translucent with a cool blue LED that flashes to give you visual feedback on the delay time you have selected - especially handy when you're playing live!
Designed and assembled in Santa Barbara, California.
- Type of Circuitry: Analog Bucket Brigade Devices (BBDs) supported by modern low-noise analog electronics. No microprocessors or digital signal processors.
- Bypass: True bypass
- Delay Range: 15ms to 600ms. Actual delay time indicated by flash rate of illuminated delay time knob.
- Dry Gain: 1dB fixed
- Wet Gain: Adjustable from muted to +3dB. At the highest blend settings, the first echo is actually louder than the dry signal.
- Repeat Control Range: One repeat to runaway repeats
- Modulation Rate Range: 0.2Hz to 4 Hz
- Modulation Depth Range: Zero to "over the top"
- Auxiliary Functions: Wet channel insert loop, allows external effects to be applied to only the wet signal. Also serves as a wet-only output for wet/dry stereo or studio use.
- Dry Frequency Response: <-1dB @ 10 Hz and 100 kHz
- Dry Distortion: 0.002% at 250 Hz, 1V RMS output
- Dry Noise Floor: -100dBv at output, 400Hz to 20kHz with input unplugged
- Wet Noise Floor: -90dBV at output, 400Hz to 20kHz
- Input Impedance: 1 Meg (active); open (bypassed)
- Output Impedance: 1K ohm
- Power: Internal 9V battery or external 9V-18V regulated power supply.
- Current Consumption: 11mA typical
- Dimensions: Chassis size 2.61" x 4.90" x 1.45" (W x L x H)
- Weight: 0.8lb. without battery
