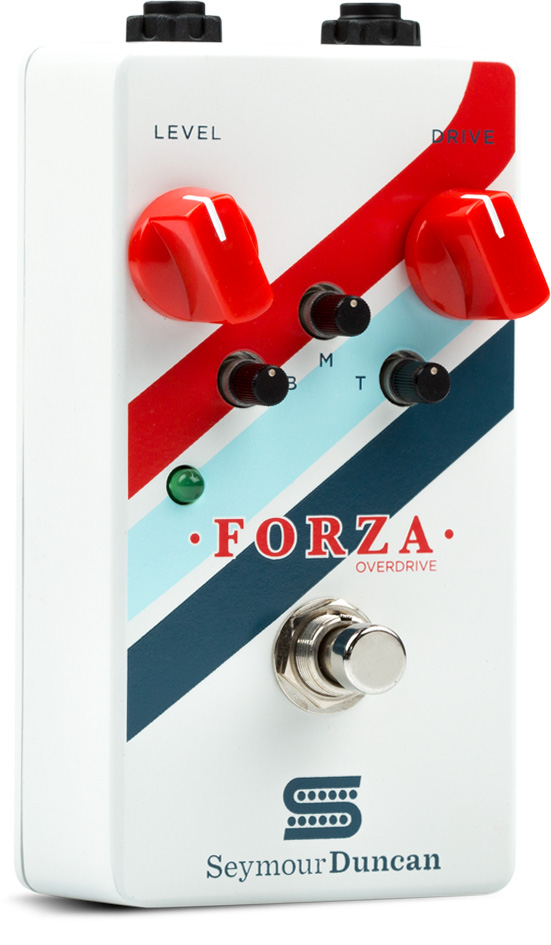

Seymour Duncan Forza Overdrive
Manufacturer's ID: 1611900-010
While many overdrives emphasize particular frequencies, the Forza gives you a more even spread across the frequency range. The voicing is very open, and it sounds just as good through a clean channel or hitting an already-overdriven amp. In addition to up to 37dB of gain there’s a three-band EQ for controlling the lows, mids and high end, and the Level control has plenty of range to allow use as a clean boost too.
The Forza uses a glass diode, back-to-back stack overdrive circuit. It features True Bypass switching and is made in the USA.
Type of circuitry: The Forza uses a glass diode, back-to-back stack overdrive circuit
Bypass: True hard-wire bypass
- Gain Control Range – 11dB to 37dB
- Bass – 90 Hz +/- 11dB
- Mid – 750 Hz +/- 11dB
- Treble – 2.1 kHz +/- 12dB
- Bypass (Footswitch) – Engages the overdrive effect
Input Impedance: 470k Ohms
Output Impedance: 1K Ohms
Gain: Unity (0dB) dry; off to +3dB wet.
THD @10mVrms input @ 1 kHz with 12 dB of gain: 0.045%
Max Output Before Saturation: 0.6Vrms
Power: 9V battery or external 9V to 18V Regulated DC Adapter (center negative)
Current Consumption: 4.5mA
Dimensions: 2.61” X 4.90” X 1.45”
Weight: 0.8lb without battery
