Music Man Mariposa Guitar Imperial White Gold Hardware
Includes Hard Case
Image Gallery
Manufacturer's ID: 775-S7-51-L4-CS-GD
The Ernie Ball Music Man Mariposa guitar is the latest design collaboration between the award-winning Ernie Ball Music Man design team and celebrated Mars Volta/At the Drive-in composer/guitarist Omar Rodriquez-Lopez.
The Mariposa features an offset lightweight African mahogany body, a roasted maple neck, and an ebony fingerboard that showcases pearlescent style block inlays. Electronics include two custom wound Ernie Ball Music Man humbucking pickups with separate volume control for each pickup, controlled by a 3-way pickup selector switch that allows for variable humbucking combinations when needed.
The pickguard is laser etched with an ornate design coordinated to compliment the finish.
Other appointments include medium profile 22 stainless steel frets, gold and chrome hardware options, matching headstock, and Ernie Ball Music Man smooth tremolo system.
The Mariposa ships in a custom black tolex G&G case.
Specification
| Body Wood | Okoume |
| Body Finish | High gloss polyester |
| Bridge | Music Man® Modern tremolo with chevron cover and vintage bent steel saddles |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 10" (25.4 cm) |

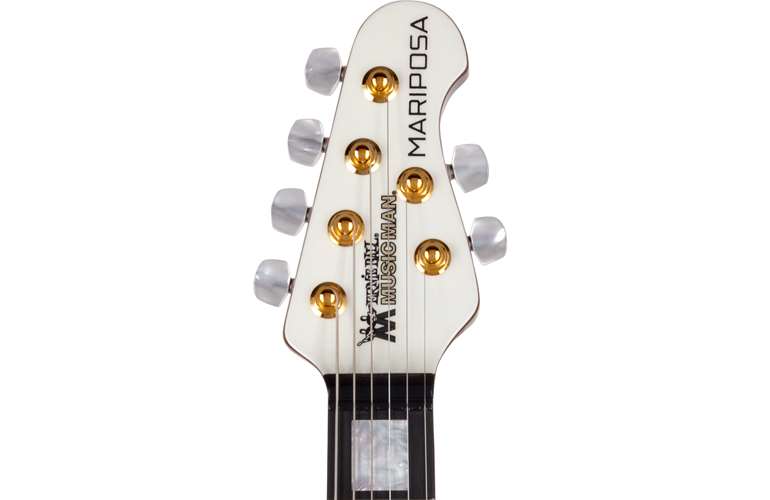

| Headstock Size | 6-3/8" (16.2 cm) long |
| Frets | 22 - High profile, medium width |
| Neck Width | 2-1/4" (56.9 mm) |
| Neck Wood | Roasted maple neck |

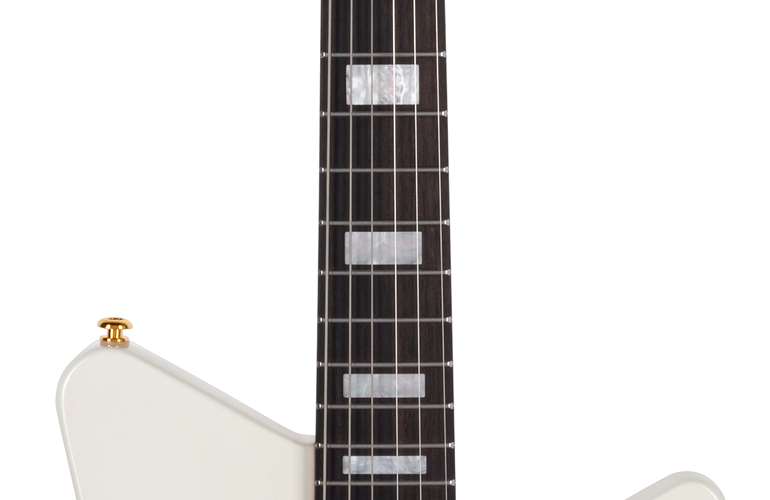

| Fingerboard | Ebony |
| Fret Markers | Atlante Blocks |
| Neck Finish | Gunstock oil and hand-rubbed special wax blend |
| Neck Colors | Natural |
| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | 5 bolt, sculpted neck joint |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover |
| Controls | 500kohm volume for each pickup |
| Switching | 3-way toggle pickup selector |
| Pickups | HH - 2 Music Man® custom wound humbucking |
