RME UCXII Audio Interface

£1,149.00 Pre-Order

RME UCXII Audio Interface

£1,149.00

Pre-Order

Pre-order this now and we will deliver it to you when it becomes available.

3-Year Warranty Included

We're the 1st, and only, UK guitar retailer to offer a 3-year warranty as standard. Buy with confidence today. Learn More

Notify me when in stock

The personal details you entered will only be used to notify you about that stock status of this item. To see the full details of how your data is managed, as well as your rights, please view our full privacy policy.

Manufacturer's ID: FFUCXII

40 Channel Advanced USB Audio Interface

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format for studio and live recordings. It continues RME's long tradition of designing compact high-end interfaces, packing into a half-rack size unit what usually would be spread out over two or three 19 inch panels.

The most powerful & portable RME Audio USB Interface

This unique audio system is capable of transferring analog and digital audio data directly to Windows and Mac computers. The latest Plug and Play technology guarantees a simple installation, even for the inexperienced user. Numerous unique features like a well thought-out Settings dialog and an integrated routing solution realize a quick, comfortable and efficient operation of the Fireface UCX II.

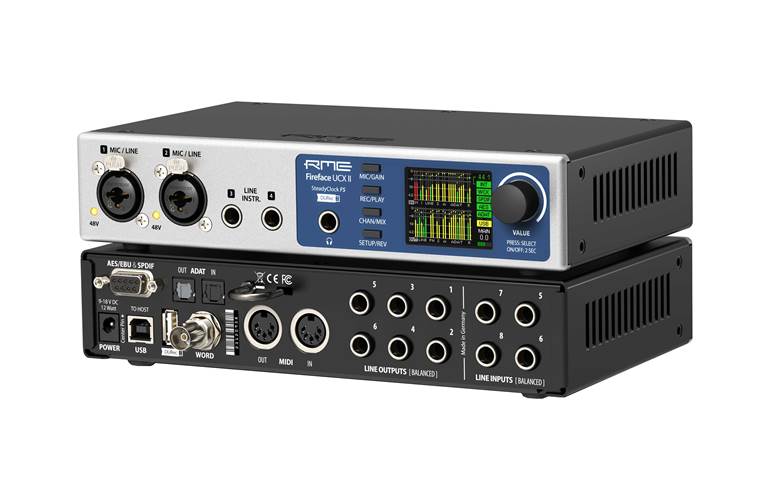

The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.

With the SteadyClock FS, the Fireface UCX II features the latest clock and jitter rejection technology from RME. Based on a femtosecond clock, SteadyClock FS reduces the intrinsic jitter when converting from and to analogue over all digital formats to a new all-time low.

40-Channels ready for your Mobile Recording Rig

DURec is an integrated digital recorder for all inputs and outputs directly to USB memory devices via the rear USB port. It allows to record on USB thumb drives or hard drives with up to 2 TB capacity. The recording functionality is provided by the internal DSP, and is therefore independent from a connected Windows or Mac computer. This USB port can alternatively be used for direct connection of RME’s optional ARC USB remote control.

The Direct USB Recording converts the Fireface UCX II into a stand-alone field recorder and a powerful multichannel live player for previous recordings, e. g. for virtual sound checks. Live concerts, band rehearsals or spontaneous jam sessions can be directly recorded and played back from the medium - even completely stand-alone without computer or software. All input and output channels can be individually chosen for recording and playback.

Powerful Applications for Mixing, Monitoring and Measurement included

The Fireface UCX II comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DIGICheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.

The additional TotalMix Remote is a remote control for TotalMix FX, to control the hardware mixer and effects in RME audio interfaces. TotalMix Remote mirrors the current state of the host system on the iPad and Windows/Mac computers - the entire mixing state, the complete routing, all FX settings, up to the level meters, and everything in real-time. Easily adjust all the mixer and FX settings from a distance, via Ethernet and WiFi.

Specification

AD, Line In 5-8, rear
Signal to Noise ratio (SNR): 112 dB RMS unweighted, 115 dBA
Frequency response @ 44.1 kHz, -0.1 dB 5 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB 3 Hz – 45.8 kHz
Frequency response @ 192 kHz, -1 dB  2 Hz - 92 kHz
THD < -110 dB, < 0.00032 %
THD+N < -104 dB, < 0.00063%
Maximum input level +19 dBu
Channel separation > 110 dB
Input 6.3 mm TRS jack, electronically balanced

DA, Line Out 1-6, rear
Dynamic range (DR) 112 dB RMS unweighted, 115 dBA
Frequency response @ 44.1 kHz, -0.5 dB 5 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB 5 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB 5 Hz - 89 kHz
THD < -108 dB, < 0.0004 %
THD+N < -104 dB, < 0.00063 %
Channel separation > 110 dB
Maximum output level +19 dBu
Output 6.3 mm TRS jack, servo-balanced
Output impedance 75 Ohm
Output level switchable Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ Hi Gain +19 dBu
Output level at 0 dBFS @ +4 dBu +13 dBu
Output level at 0 dBFS @ -10 dBV +2 dBV

Line In 3-4, front
As AD, but:
Additional Gain stage 0 up to +12 dB
Input impedance Inst 470 kOhm
Input Gain Inst +6 dB
CLIP LED 0 dBFS
SIG LED -60 dBFS
