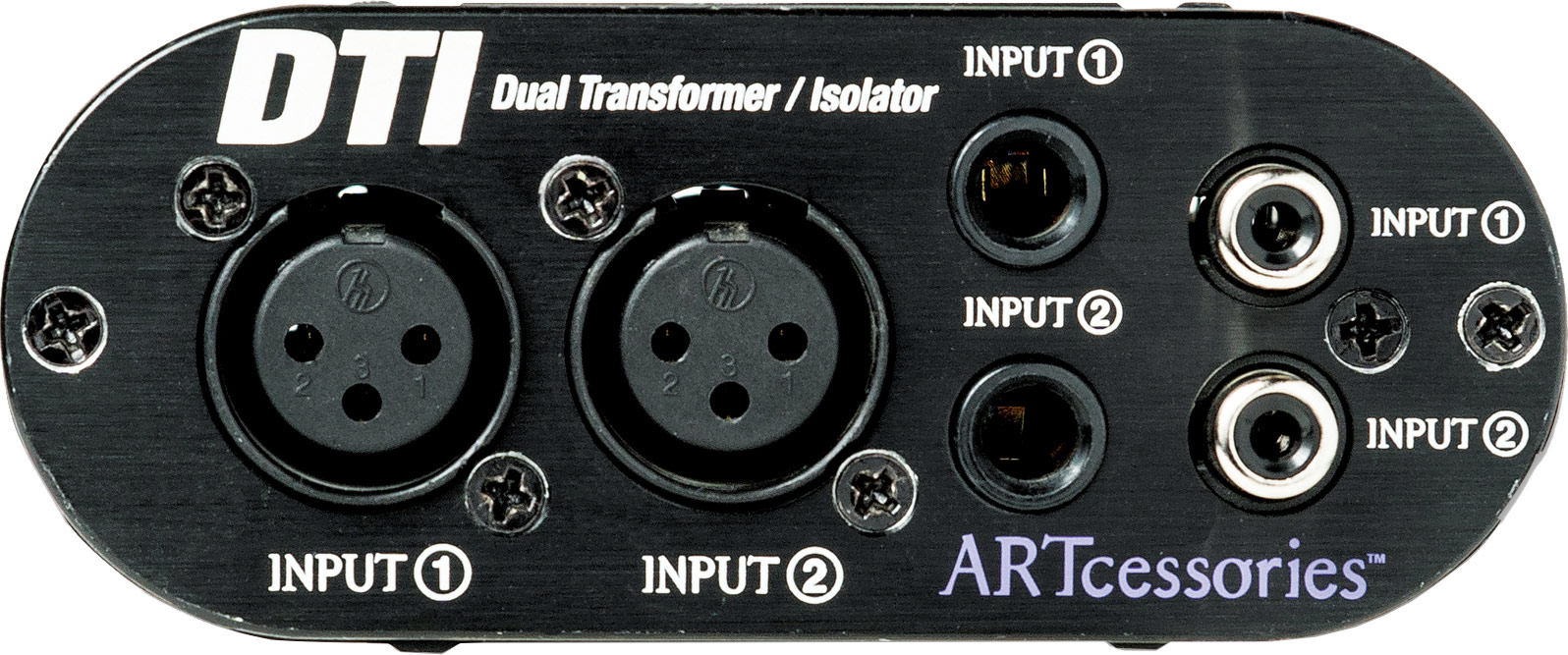

Art DTI Dual Transformer Isolator

Manufacturer's ID: DTI

The DTI (Dual Transformer/Isolater) is a high quality totally passive audio interface that uses a pair of high performance transformers to totally separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise. The DTI's audio transformers have an extremely flat and wide frequency response and can handle high signal levels while maintaining an isolated balanced output. This gives the DTI a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 Ohms to 100k Ohms.

Specification

The DTI (Dual Transformer/Isolater) is a high quality totally passive audio interface that uses a pair of high performance transformers to totally separate input and output signal grounds, thereby isolating two systems and reducing hum and ground-loop noise. The DTI's audio transformers have an extremely flat and wide frequency response and can handle high signal levels while maintaining an isolated balanced output. This gives the DTI a very clean and neutral sound with a wide variety of signal sources. The transformers are wound for 1:1 unity gain and are designed to be used with impedances from 600 Ohms to 100k Ohms.

What further sets the DTI apart from other lesser isolation boxes is its connection versatility. We have provided XLR, 1/4” phone, and RCA type phono connections on all inputs and outputs. This allows it to easily fit into virtually any audio system and be the clean patch point between all types of systems.

Whether you need an interface between a computer based audio workstation and your monitor system, isolation on long cable runs in a fixed installation, isolation of a signal source from your recording equipment, or in many cases, just a safer connection between two audio systems, the DTI can accommodate.

The compact black anodized all aluminum case and it’s passive design allow the DTI to provide years of trouble free service in Live Sound, Permanent/Fixed Install, D.J., and virtually any PA application. It’s full feature set, rugged construction, and high-end specifications make the DTI the obvious choice.

Specifications
  • Frequency Response: 10Hz –50kHz, +/-.5dB @ +4dBu
  • THD: .01% Typical @ 1kHz, +18dBu,
  • <.05% @ 100Hz, +24dBu
  • Insertion Loss: .4dB @ 100k Ohm Load,
  • 5.5dB @ 600 Ohm Load
  • Input Connections: XLR female balanced, 1/4” TRS
  • unbalanced, and RCA type phono jacks
  • Output Connection: XLR male balanced, 1/4” TRS
  • unbalanced, and RCA type phono jacks
  • Power Requirements: Passive
  • Dimensions: 1.75”H x 4.2”W x 3.5”D
  • (44.5mm x 107mm x 89mm)
  • Weight: .75 lbs. (.34kg)
Was £73.20 Save £15.20

£58.00

In Stock

Order now for Delivery on Tuesday

Includes extended exchange

Buy with confidence: Items bought 1st October 2019 to 24th December 2019 are eligible for our Extended Christmas Exchange and can be exchanged until Friday 31st January 2020. Learn More

Delivery on Tuesday

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store Availability
Edinburgh Collect on Thursday
Glasgow In Stock, Collect Today
Newcastle Collect on Thursday
Birmingham Collect on Thursday
Epsom Collect on Thursday
Camden Collect on Thursday

Customer reviews

Overall Rating 4.5 (4 reviews)

Bought this to eliminate a buzzing in a theatre I was playing in. It did reduce it but not as much as I hoped. Solidly constructed and no batteries required.

Mark H. - 18/4/2017

Great product

J.F. - 14/10/2014

Art gear may be cheap and cheerful but their products have always been reliable and well designed given the price point. Happy customer here.

C.W. - 9/4/2013

The isolating transformer works perfectly. The DC noise from my laptop that was ruining the sound from my monitors is a thing of the past!

S.L. - 13/9/2012
