Adam A3X Studio Monitor (Single)
Image Gallery
£229.00
In Stock
4 AvailableOrder now for FREE Delivery on Thursday
Includes extended exchange
Buy with confidence: Items bought 1st October 2020 to 24th December 2020 are eligible for our Extended Christmas Exchange and can be exchanged until Sunday 31st January 2021. Learn More
Frequently Bought Together
Recommended Bundles
Manufacturer's ID: ADAM-A3X
Specification
Stereolink
A very handy and exclusive technology found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.
This new technology connects two A3X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speaker’s gain control. This makes the A3X a natural for “mixer-less” desktop applications where overall system volume needs to be adjusted easily.
Controls and Connectors

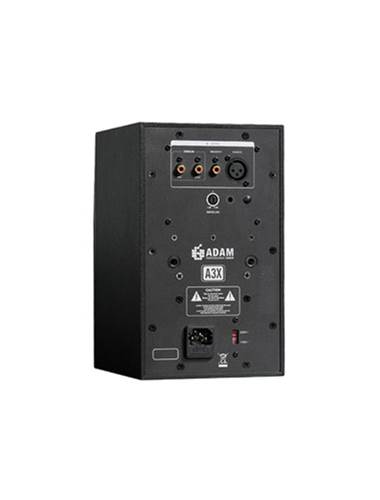

The front of the A3X sports dual ports for surprisingly low frequency response down to 60Hz. The front panel also has power and gain controls. The rear panel includes a tweeter gain control as well as balanced (XLR) jacks and unbalanced (RCA) jacks, allowing for greater connection flexibility. There are also two M6 (6 mm) metric screw threads for stand/wall mounting.
Exlusive Content and Extended Warranty
Create a MyADAM account at the official ADAM Audio website and you will be able to extend the warranty of your Adam Audio products from 2 to 5 years. Other benefits of your MyAdam account includes access to free plugins and software, tutorials, product manuals and exclusive offers
Technical Data
| Mid-Woofer | Number: 1 |
| Basket Ø: 4.5" (120 mm) | |
| Voice coil Ø: (25 mm) | |
| Cone materia: Carbon Fiber | |
| Tweeter | Number: 1 |
| Type: X-ART | |
| Diaphragm area: 4 inch² (2420 mm²) | |
| Equiv. Diaphragm Ø: (56 mm) | |
| Velocity transform ratio: 4:1 | |
| Diaphragm weight: 0.17 g | |
| Built-in Amplifiers | Mid-Woofer: 1 |
| Type: A/B | |
| Amp. power RMS / music: 25 W / 40 W | |
| Tweeter: 1 | |
| Type: A/B | |
| Amp. power RMS / music: 25 W / 40 W | |
| Control panel | Input Sensitivity: -8 to +14 dB |
| Tweeter gain: ±4 dB | |
| Input connectors | Analog: XLR / RCA |
| General data | Frequency response: 60 Hz - 50 kHz |
| THD 90dB/1m: 100 Hz: =0.8 % | |
| Long term output: =98 dB | |
| Max. peak: =106 dB | |
| Crossover frequencies: 2800 Hz | |
| Input impedance: 10 KOhm | |
| Weight: 10.1 lb (4,6 kg) | |
| Magnetically shielded: No | |
| Height x Width x Depth: 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm) | |
| Delivery contents | Cinch-cable, Power cord, Manual |
