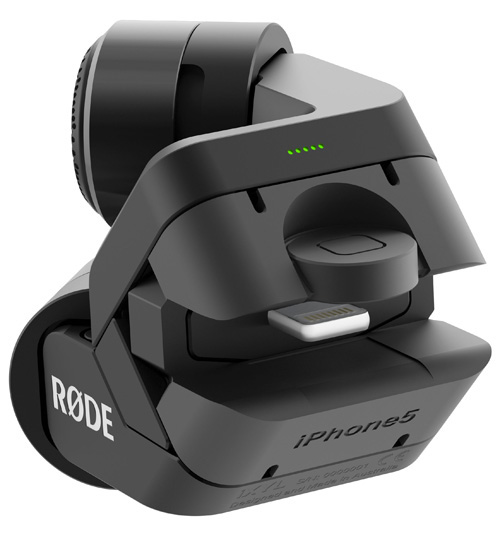

Rode iXY Lightning

Specification

At the heart of the iXY is a matched pair of ½” cardioid condenser capsules, fixed in a perfect 90 degree ‘near-coincident’ alignment. This results in immersive and true-to-life stereo recordings, captured in incredibly high detail.

Designed and manufactured in Australia, the iXY is available in two versions - Lightning and 30-pin. The Lightning version supports the iPhone® 5s, iPhone® 5 and iPhone® 5c. The 30-pin version supports the iPhone® 4S, iPhone® 4, iPad® (3rd generation) and iPad® 2.

A foam windshield is supplied for outdoor recording as well as a reinforced protective zip case to ensure your iXY is available whenever you need it.

*RØDE Rec or RØDE Rec LE app required for 24/96 quality.
iPhone and iPad are trademarks of Apple Inc., registered in the U.S. and other countries.

Specifications

• Acoustic Principle: Pressure Gradient
• Capsule: 0.50"
• Polar Pattern: Cardioid [Paired cardioid capsules in X-Y stereo pattern]
• Address Type: End
• Frequency Range: 20Hz - 20kHz (selected HPF @ 0)
• Output Impedance: 0O
• Maximum SPL: 120dB SPL (@ 1kHz, 1% THD into 1KO load)
• Sensitivity: -42.0dB re 1 Volt/Pascal (8.52mV @ 94 dB SPL) +/- 2 dB @ 1kHz
• Equivalent Noise Level (A-weighted): 18dB-A
• Weight: 40.00gm
• Dimensions: 46.00mmH x 55.00mmW x 40.00mmD
• Dimensions: 46.00mmH x 55.00mmW x 40.00mmD
• Warranty: 1 year
