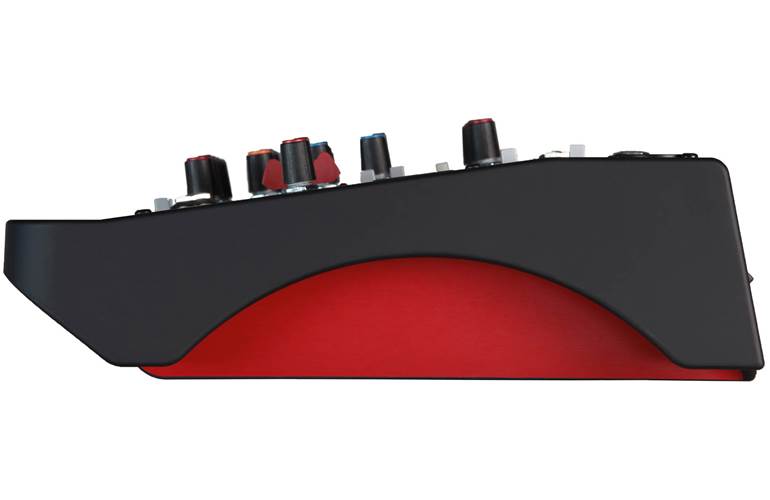

Allen & Heath ZED6FX Mixer

£180.00 In Stock

Delivery on Monday

Click and Collect available

Allen & Heath ZED6FX Mixer


In Stock

4 Available

Order now for Delivery on Monday

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Delivery on Monday

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Collect on Tuesday
Collect on Tuesday
Collect on Tuesday
Collect on Tuesday
Collect on Tuesday
Collect on Tuesday

Manufacturer's ID: ZED-6FX

ZED-6FX delivers Allen & Heath’s renowned build and audio excellence in a compact, portable format, making it the ideal choice for quality conscious musicians, singer / songwriters and venues.

Whether it’s bouncing ideas around at home, performing live or recording tracks to share on YouTube and Soundcloud, ZED-6FX is a versatile companion for every step of the creative journey. Featuring the new GSPre boutique preamp design, developed from the revered GS-R24 studio recording console, the ZED boasts exceptionally low noise and massive headroom, with a signature analogue warmth and depth. ZED-6FX is the first mixer to include a specially created suite of studio quality reverbs, delays and special multi-model FX, crafted by Allen & Heath’s acclaimed in-house effects aficionados. Guitarists will be pleased to know that ZED-6FX comes with a pair of Guitar DI high impedance inputs, allowing guitars to be plugged straight into the mixer without the hassle and expense of carrying separate DI boxes.


  • 2 Mic / Line Inputs with separate XLR and TRS jack sockets
  • 2 Stereo Inputs with TRS jack sockets
  • 2 Guitar DI high impedance inputs, eliminating the need for DI boxes
  • Internal FX engine with tap tempo
  • Lo-cut filter for cleaning up unwanted low frequency noise
  • 2 band EQ for easy creative and corrective tonal shaping
  • 60mm smooth travel fader on main mix
  • XLR main outputs
  • Flexible signal monitoring
  • 8 LED signal metering
  • 48V Phantom Power for condenser mics
  • Robust internal power supply


Operating Levels
Input Mono channel (XLR) Input (For Nominal 0dBu): -5dBu to –60dBu (+13dBu maximum)
Mono channel Instrument/Line Input (Jack socket): +14dBu to -40dBu (+17dBu maximum)
Stereo Input (Jack sockets): 0dBu nominal (control = Off to +15dB Gain)
Output L/R Outputs (XLR): 0dBu (+18dBu maximum)
FX Output (Jack socket): 0dBu (+18dBu maximum)
Frequency Response Mic in to Mix L/R Out, 30dB gain: 10Hz to 20kHz +0.5/-1dB
Instrument/Line in to Mix L/R out 0dB gain: 10Hz to 20kHz +0.5/-1dB
Stereo in to Mix L/R out: 10Hz to 20kHz +0.5/-1dB
THD+n Mic in to Mix L/R Out, 10dB gain: 1kHz +10dBu out (22Hz-22kHz Filter) 0.0025%
Mic in to Mix L/R Out, 30dB gain: 1kHz (22Hz-22kHz Filter) 0.006%
Instrument in to Mix L/R out 0dB gain: 0dBu 1kHz (22Hz-22kHz Filter) 0.03% 2nd Harmonic
Stereo in to Mix L/R out 0dB gain +10dBu 1kHz (22Hz-22kHz Filter): 0.0025%
Headroom Analogue Headroom from nominal (0Vu): 18dB
Noise Mic Pre EIN @ max gain 150R input Z (22Hz-22kHz Filter): -127dBu
Mix L/R out, L/R fader = 0, Channel Levels min (22Hz-22kHz Filter): -94dBu
Mix L/R out, L/R faders = 0, Channel Levels 0dB (22Hz-22kHz Filter): -91dBu

Customer reviews

Overall Rating 5/5 (1 reviews)

Perfect for small set ups, wedding speeches, acoustic and vocals etc. Lightweight and easy to use. Handy to have effects too built in.

Marc B. - 25/7/2021
