Zoom L-20-R LiveTrak - Digital Mixer and Recorder

Was £649.00 Save £70.00

£579.00

In Stock

Order before 3PM for FREE Delivery Tomorrow

Make 3 payments of £193.00 No fees. Learn more

Pay Monthly

  • From £9.27 a month: 9.9% APR
  • Deposit from 0% to 50%
  • Pay over 12, 24 or 36 months
Apply Now

Buy Now, Pay 2022

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

FREE Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Saturday
Glasgow
In Stock, Collect Today
Newcastle
Collect on Saturday
Birmingham
Collect on Saturday
Epsom
Collect on Saturday
Camden
Collect on Saturday

Manufacturer's ID: 10005690

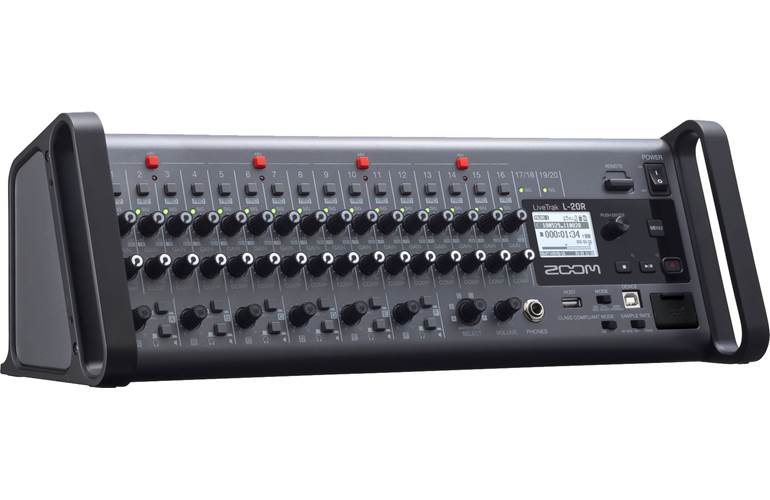

The Zoom LiveTrak™ L-20R is a rack-mountable digital mixer that allows musicians to control their live mix right from the stage with the use of an iPad. With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue

PORTABLE AND POWERFUL

Featuring 16 mono mic/line inputs and two stereo inputs, the L-20R can handle the most demanding stages. The L-20R offers two EFX busses and each channel includes a 3-band EQ, pan controls and compressor.

22 TRACKS OF RECORDING

During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.

*Effects, EQ, overdub, audio interface, and fader modes A-F are not available in 96 kHz.

IT’S YOUR MONITOR MAKE IT YOUR MIX

With six independent monitor outputs, the L-20R enables musicians to create their own custom mix.

A dedicated output enables the FOH engineer to easily switch between monitoring the main and sub mixes.

IPAD CONTROL

With iPads, the FOH engineer and 6 musicians can control their own mix from anywhere in the venue.

*Compatible with all iPad Air models, iPad Mini 2 and later, iPad Pro, and iPad (2017), running iOS 10.3.3 or newer.

SCENE RECALL

With the LiveTrak L-20R’s Scene Recall feature, you can instantly recall up to nine different scenes with monitor mixes, EQ settings, effects, and more.

ACCESSIBLE

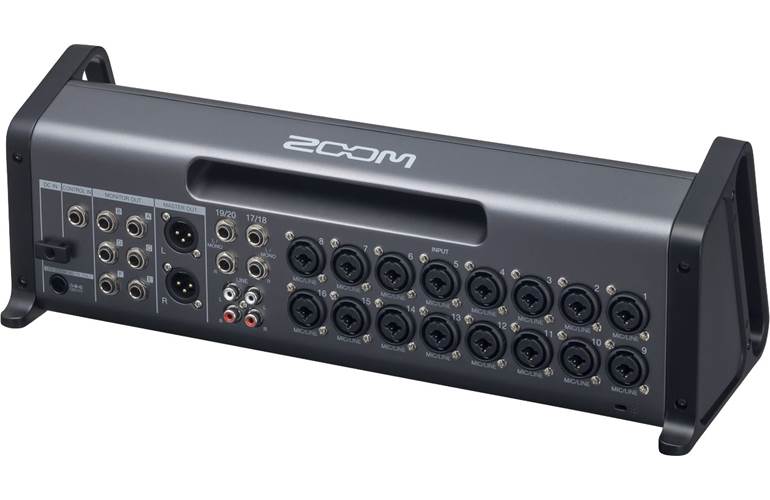

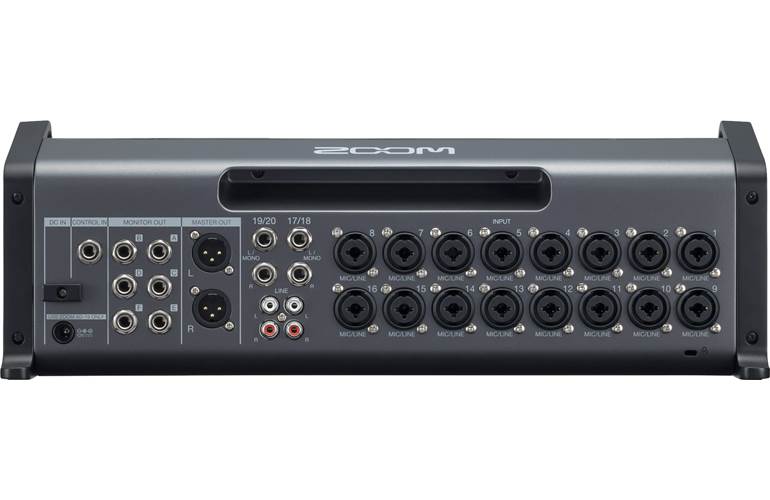

The L-20R’s versatile design provides easy access for plugging in your cables.

A ROBUST AUDIO INTERFACE

The L-20R is a 22-in/4-out USB audio interface. Route inputs to any DAW, streaming software, or iOS device*—even while recording to an SD card.

*Apple Lightning to USB Camera Adapter required.

Specification

INPUTS Mono (MIC/LINE): 16 | Stereo (LINE): 2
OUTPUTS MASTER OUT: 1 | MONITOR OUT: 6 | PHONES : 1

INPUTS 1-16
MONO (MIC/LINE) Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
  Input gain | PAD OFF: +16 – +60dB | PAD ON: − 10 – +34 dB | Hi-Z ON: +6 – +50 dB
  Input impedance | XLR: 3 k Ω | TRS: 10 k Ω /1 M Ω (when Hi-Z ON)
  Maximum input level | PAD OFF: 0 dBu (at 0 dBFS) | PAD ON: +26 dBu (at 0 dBFS)
  Phantom power | +48 V
STEREO (LINE) Type: TS phone/RCA pin (unbalanced) jacks Maximum input level : +10 dBu

OUTPUTS
MASTER OUT Type: XLR jacks (balanced) | Maximum output level :+14.5 dBu | Output impedance: 100 Ω
MONITOR OUT A–F (WITH BALANCED OUTPUT) CONNECTED TO MONITOR SPEAKERS Type: TRS phone jacks (balanced) | Maximum output level: +14.5 dBu |Output impedance: 100 Ω
MONITOR OUT A– F (WITH UNBALANCED OUTPUT) CONNECTED TO HEADPHONES Type: Standard stereo phone jacks | Maximum output level: 42 mW + 42 mW at 60 Ω | Output impedance: 100 Ω
PHONES Type: Standard stereo phone jacks | Maximum output level: 42 mW + 42 mW at 60 Ω | Output impedance: 100 Ω

BUSES
MASTER 1
MONITOR 6
SEND EFX 2

CHANNEL STRIP
COMP
LOW CUT 40–600 Hz, 12dB/OCT
EQ HIGH: 10 kHz, ± 15 dB, shelving | MID: 100 Hz – 8 kHz, ± 15 dB, peaking | LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS
LEVEL SEGMENTS 12

SEND EFFECTS
EFFECTS | 20 TYPES EFX 1 Hall 1 (Reverb) ,Hall 2 (Reverb) , Room 1 (Reverb) ,Plate (Reverb) ,Church (Reverb), DrumAmb (Reverb), GateRev (Reverb) ,Vocal 1 (Delay + Hall Reverb) , Vocal 2 (Delay + Mono Reverb) , Vocal 3 (Delay + Plate Reverb)
  EFX 2 Hall 3 (Reverb) , Room 2 (Reverb) , Spring (Reverb) ,Delay (Delay) ,Analog (Delay) , P-P Dly (Delay) , Vocal 4 (Delay + Room Reverb) , Chorus 1 (Stereo Chorus) ,Chorus 2 (Mono Chorus) ,Cho+Dly (Chorus + Delay)

RECORDER
MAXIMUM SIMULTANEOUS RECORDING TRACKS 22 at 44.1/48/96 kHz
MAXIMUM SIMULTANEOUS PLAYBACK TRACKS 20
RECORDING FORMAT & SAMPLE RATES WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
RECORDING MEDIA 4 GB – 32 GB SDHC cards (Class 10 or higher) | 64 GB – 512 GB SDXC cards (Class 10 or higher)

AUDIO INTERFACE
44.1/48 KHZ Recording: 22 channels | Playback: 4 channels
BIT DEPTH 24-bit
INTERFACE USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
WINDOWS OS: Windows® 8.1 / 10 (32bit/64bit) | CPU: Intel® Core i3 or faster* USB: USB 3.0/USB 2.0** * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD. ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
MAC OS: macOS® 10.14 / 10.15 / 11 | CPU: Intel® Core i3 or faster USB: USB 3.0/USB 2.0* * Operation is not guaranteed when used with USB hubs or expansion cards.
IPHONE/IPAD OS: iOS 9 / 10 / 11 * Apple Lightning-to-USB Camera Adapter required.

CARD READER
CLASS USB 2.0 High Speed

USB HOST
CLASS USB 2.0 High Speed
SAMPLING FREQUENCY 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS 44.1 kHz: −1.0 dB, 20 Hz – 20 kHz 96 kHz: −3.0 dB, 20 Hz – 40 kHz

Additional Specs
EQUIVALENT INPUT NOISE Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input
DISPLAY LCD with backlight (128×64 resolution)
POWER AD-19 AC adapter (DC12V 2A)
POWER CONSUMPTION 24 W maximum
EXTERNAL DIMENSIONS 438 mm (W) × 158.2 mm (D) × 151.7 mm (H)
WEIGHT (MAIN UNIT ONLY) 2.49 kg
INCLUDED ACCESSORIES AD-19 AC Adapter
  BTA-1 Bluetooth Adapter
  Rack Ears
  Quick Guide
