Zoom A1x Four Acoustic Multi E ...

£149.00 In Stock

FREE Delivery Tomorrow

Click and Collect available

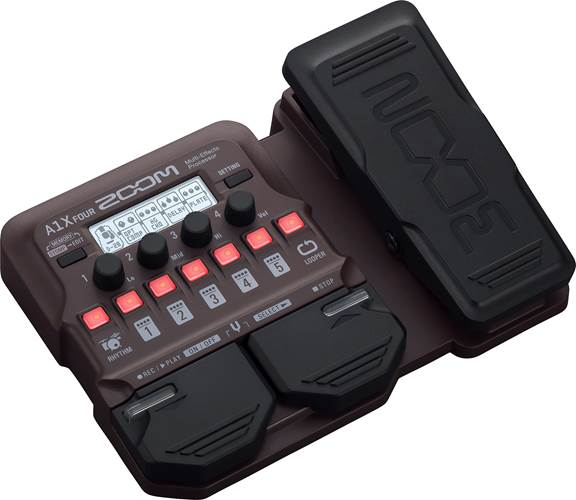

Zoom A1x Four Acoustic Multi Effects Processor

£149.00

In Stock

2 Available

Order before 4PM for FREE Delivery Tomorrow

Includes 30-Day Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended 30-Day exchange as standard.
Buy with confidence today.

Make up to 4 payments of £37.25 No fees.
Learn more about Klarna and Clearpay
18+, T&C apply, Credit subject to status.

FREE Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Friday
Glasgow
Collect on Friday
Newcastle
Collect on Friday
Birmingham
Collect on Friday
Epsom
Collect on Friday
Camden
Collect on Friday

Frequently Bought Together


Total Price: £

Manufacturer's ID: 10001081

What we say:

At A Glance:

The Zoom A1X Four Multi Effects Processor is an inspiring compact pedal packed with features. With over 80 effects to explore you'll be able to create a wide variety of new sounds. The pedal comes pre-loaded with dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica.

Features We Love:

Huge Range of Tones

With over 60 effects and 13 amp models you have a huge range of tones for your bass. Choose from classic amps, and blend them all kinds of effects to sculpt your perfect tone and inspire new songs!

Guitar Lab Software

Connect your A1X Four up to your computer via USB to use the Guitar Lab Software where you can edit patches, organise them, or create entirely new patches.

Looper

A built-in looper allows you to loop up to 30 seconds and overdub that section endlessly. You can use this to create multi-layer arrangements.

Built-in Expression Pedal

To be able to control your effects while you play is always a bonus, which is why we love the built-in Expression pedal. With the ability to assign it to a variety of different parameters it gives you a whole range of new versatility.

Highlights:

  • Lightweight
  • Huge range of tones
  • Flexibility with Guitar Lab Software

Specification

  • A1 FOUR offers over 80 built-in effects
  • Dedicated effects for acoustic guitar, saxophone, trumpet, violin, and harmonica
  • Up to 5 effects can be used simultaneously, chained together in any order
  • 50 memory locations for storing user-created patches
  • Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
  • ZOOM Guitar Lab software for creating, editing and managing effects and patches
  • 68 built-in rhythm patterns tailored for unplugged styles of music can be used in combination with the Looper
  • Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
  • Output jack for connection to amp or headphones
  • A1 FOUR runs on 4 AA batteries, with alkaline battery life of 18 hours; MAA-1 Requires 2 AA batteries
  • USB port for firmware updates, power and connection to ZOOM Guitar Lab

Technical Specifications

Max Number of Simultaneous Effects 5
User Patches 50
Sampling Frequency 44.1kHz
A/D Conversion 24-bit 128× oversampling
D/A Conversion 24-bit 128× oversampling
Signal Processing 32 Bit
Display 128 x 32 dot-matrix LCD

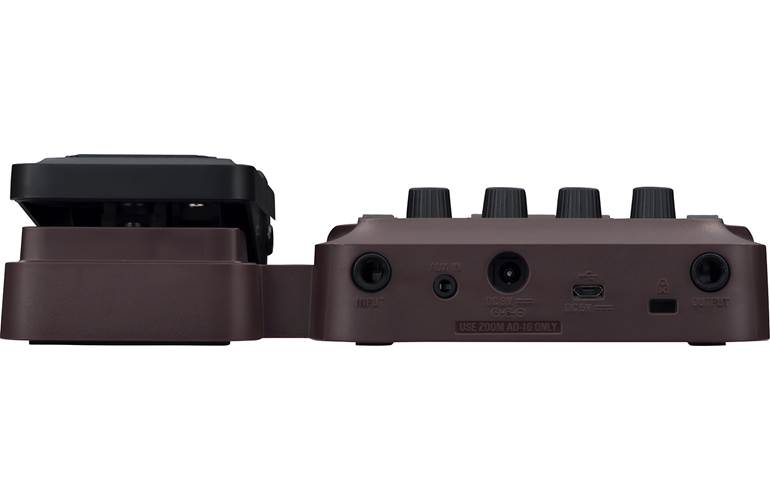

Input Standard mono phone jack
Rated input level: -20 dBu
Input impedance (line): 470 kΩ
Aux In Stereo mini jack
Rated input level: -10 dBu
Input impedance (line): 1kΩ
Outputs Standard stereo phone jack (combined line/headphone)
Maximum output level: Line +2 dBu (10 kΩ or more output impedance)
Headphones 17 mW + 17mW (32Ω load)Input S/N: 120dB
Noise floor (residual noise): -97 dBu
Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16)
4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
USB USB MIDI, USB Micro-B
Power can also be supplied through the USB port
When using a cable designed only for power, other USB functions cannot be used
Dimensions 156 mm (D) × 216 mm (W) × 52 mm (H)
Weight 610g

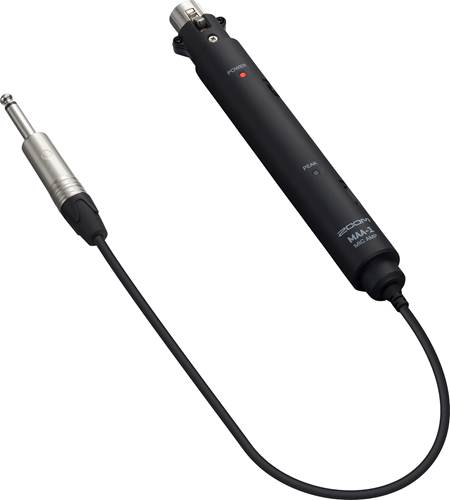

MAA-1 Mic Adapter Specifications

Input INPUT XLR balanced input (2: hot)
Input gain: +3 –+30 dB
Input impedance: 10 kΩ
Max Input Level +4 dBu+48V phantom power
Outputs Standard mono phone jack
Nominal output level: −20 dBu
Maximum output level: +7 dBu
Output impedance: 1 kΩ
Power 2 AA batteries
Continuous operation time (when phantom current is 3 mA)
About 15 hours (using alkaline batteries)
About 15 hours (using nickel metal hydride batteries)
Dimensions Height: 177 mm (D) × 23 mm (W) × 25 mm (H)
Weight 70 g (excluding batteries)

Customer reviews

Overall Rating 4.5/5 (4 reviews)

For the money that I was prepared to spend this really was the only option… the only other I was seriously considering in a similar price range was the Line6 M5, but you can only use one effect at a time. As a saxophonist the zoom is specifically designed for acoustic instruments and comes with an impedance adapter so a mic can be connected, a fairly costly addition for a pedal that comes without. I literally didn’t come across a single other pedal in any price range that A) has patches designed for mic’d instruments or B) comes with an impedance adapter. The Zoom has every effect I wanted and more and the ability to quickly design your own patches on the pedal itself. The interface doesn’t take long to get to grips with and the fact you can chain up to 5 effects in each patch means you can always use the same reverb, for example. Apparently there are even more effects that can be downloaded onto the device. I haven’t explored this yet, I haven’t felt like I’ve needed to. The construction is very durable plastic, it feels like it’ll last. The only draw back is the fact that the numbered buttons for selecting the banks and switching effects on and off are hand switches (maybe you could use your feet but they’re pretty small). Meaning you’ve got to bend down to get to your next effect, a small gripe. If they made a more expensive version with bigger, metal switches like the helix and made the expression pedal larger with more range it’d be a perfect product imo. Though for the price it really is a phenomenal piece of kit.

Michael B. - 14/10/2024

covers all the details i wanted

Nigel K. - 11/4/2024

Paul L. - 11/11/2022

Very useful pedal. Good modelling patches with excellent reverbs and modulation FX. Drum machine and looper really handy both for rehearsing alone and for solo performance.

Jonathan T. - 15/10/2021
