Marantz Turret Video Streaming System
Available to Order
Manufacturer's ID: TURRETXUK
The Marantz Professional Turret is a unique, all-in-one broadcast tool that gives any podcaster, gamer or live internet streamer high-quality components with a multitude of configurations for creating a professional presentation. It’s compact and simple, perfect on a desktop and portable enough to take on location.
To make the system truly self-contained and capable of handling any streaming/podcast/gaming task without the need for additional equipment, Turret has a high-speed USB-C computer output for low latency and an internal USB hub. There is even an onboard headphone amplifier so audio monitoring is a snap. Everything the demanding streaming/broadcasting enthusiast needs is right here, in one convenient, high-performance package.
The camera is an auto-focus design, with Full HD 1080p video (up to 1920 x 1080 pixels) compatible with the latest version of Skype. It supports full HD video recording (up to 1920 x 1080 pixels). It has automatic low-light correction and is compatible with Windows® 7, Windows 8, Windows 10 or later as well as Mac OS 10.6 or later (HD 720p on FaceTime for Mac or other supported video-calling clients; Full HD 1080p video recording with QuickTime Player)
The microphone is also an extremely high performance unit. It’s a condenser design, with a 14mm diameter back electret condenser, sensitivity of -34dB ± 2dB (0dB = 1V/Pa @ 1kHz), max SPL of 132dB (THD: 0.5% 1kHz) and a wide-range frequency response of 150 - 15kHz. For the utmost in user convenience, the preamp is integrated with the microphone gain control on the tower. Users can directly monitor the microphone signal while recording/streaming, without the delay of monitoring through the computer’s headphone output. The headphone output – with level control - is located on the tower.

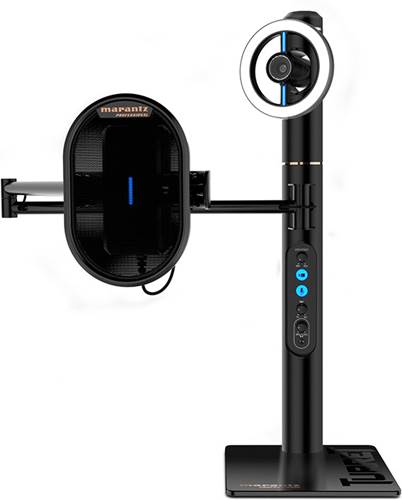

The Tower itself contains the main controls that the streamer/podcaster will access to use the system. There is an LED light dimmer, with click/off at extreme left position, headphone output jack, headphone volume, Mic gain knob, Mic mute button, and camera on/off switch.
On the rear of the tower is the USB-C jack for output to PC/MAC (high speed – low latency), (2) USB 3.0 jacks (internal hub) and the 12VDC input jack
This kind of common-sense user-oriented layout and design makes the Turret both extremely easy and intuitive to use, while delivering extremely high, effortless performance. To the end user, the system is seamless and transparent.
The LED Ring Light has a 100mm diameter with a color temperature of 5600K (daylight-balanced). It’s dimmable and includes a Cool Filter accessory (plastic, snap-on) 7000K, a Warm Filter accessory (plastic, snap-on) 3000K, and a Diffused Daylight Filter accessory (plastic, snap-on).
An extremely high-quality headphone amplifier is a critical part of the Turret system. Without a pristine, articulate signal being sent to the headphones, the entire broadcasting/podcasting/gaming experience falls apart. The Turret hits the mark squarely here with a headphone amplifier of unimpeachable quality: THD <0.009%, Signal-to-Noise ratio >100dB and a frequency response of 20-20kHz. With an RMS power output of 130mW and an impedance of 30 ohms, the Turret headphone amplifier will drive virtually any headphone to extremely loud levels, with the utmost clarity and accuracy.
|Camera||Multi-step auto focus
Diagonal field of view: 78°
Optical resolution: 2MP native
Full HD 1080p video (up to 1920 x 1080 pixels) recording
Frame rate: 30 fps/1080p, 30 fps/720p
H.264 video compression, M-JPEG compatible
Automatic low-light correction
Compatible with Windows® 7, 8, 10 & Mac OS 10.6 or later
Operates in USB Video Device Class (UVC) mode
USB 2.0 – Class 2 Compliant Driver
|Boundary Microphone||Electret condenser capsule: 14mm diameter
Sensitivity: -34dB ± 2dB (0db = 1V/Pa @ 1KHZ)
Output impedance: 100 â„¦ ± 30% (@ 1kHz)
Polar pattern: Cardioid
Pad Switch: 0 dB / -10 dB
Sample rate: 32 kHz / 44.1 kHz / 48 kHz @16-bit
USB 2.0 Class Compliant
Frequency response: 150 Hz - 15 kHz
Equivalent noise level: < 12 dbA (A-weighted)
Self noise: < 12dBA
|Headphone Amplifier||Frequency Response: 20 Hz – 20 kHz
Output power: 130mW
3.5mm stereo output
Mix control to mix microphone audio with USB audio input
|LED Light Ring||4" dimmable LED light ring
(30) wide-angle white LEDs @ 5600K
|Light Accessory Filters||Diffused daylight
|USB||USB 1 & 2: (2) Type A USB 3.0, 0.75A total available current between two ports for powering devices
To PC: (1) USB-C connector / USB 3.0 connection
USB Audio In: Class 2 compliant speaker device for audio to be monitored in headphone output – set by user in the computer
|Microphone Auxiliary Output||Fixed line-level output on 3.5mm TRS jack|
|Dimensions||With Arm fully in: 16.7" (424mm) Width including base (max)
With Arm fully out: 33.9" (860mm) Width including base (max)
Base Dimensions (width x length): 6.85" x 8.04" (174mm x 204mm)
Height with Extension: 19.6" (498mm)
Height without Extension: 17.7" (449mm)
Weight: 7.7 lbs (3.5 kg)
|Power||AC-DC power supply
100 ~ 240 VAC compatible
12 VDC @ 1 amp output
