Modal Electronics COBALT8X 8-voice Extended VA-synthesizer with 61 keys
In Stock4 Available
Order now for FREE Delivery on Wednesday
3-Year Warranty Included
We're the 1st, and only, UK guitar retailer to offer a 3-year warranty as standard. Buy with confidence today. Learn More
Manufacturer's ID: COBALT8X
COBALT8X: 8 voice extended virtual-analogue synthesiser
Building on the tradition of warm and punchy analogue-style synth sounds, conceived by legendary synthesisers from the past, COBALT8X unlocks the full creative potential of analogue waveforms. This powerful, inspiring instrument reinvents the aesthetics of analogue sounds and invites musicians, producers and sound designers to explore a new era of virtual-analogue synthesiser textures, far beyond the limits of its analogue forefathers.
On top of the innovative oscillator engine of COBALT8X, we added a new morphable 4-Pole Ladder Filter. Combined with Modal’s unparalleled modulation options, an inspiring real-time / step sequencer, the energising arpeggiator, the Premium FATAR 61-note keyboard, MPE, studio-quality effects and MODALapp integration, COBALT8X is the perfect synth for everyone who wants a versatile electronic music instrument to play vintage synth sounds and is eager to enter new sound dimensions.
Eight true polyphonic voices tempt players to lay out wide string or rich synth pad chords, while a monophonic bass or lead patch, played with 64 oscillators can shake the walls of every stadium. And with the avant-garde sound forming features, every synth enthusiast can refine his performance with sounds that no other synthesiser is able to generate.
- Play rich analogue-style sounds driven by COBALT8X’s Extended Virtual-Analogue Synthesis, combining traditional technology with modern synth features
- Create your own signature sounds by harnessing the power of COBALT8X’s unique waveform architecture with 40 complex sophisticated algorithms and Modal’s morphable 4-pole Ladder Filter
- Bring performance to a new level with MPE support, the integrated 512-note Realtime/Step Sequencer, 32-step programmable Arpeggiator and powerful Animation Lanes
- Express yourself with the class-leading 61-note key bed with aftertouch, built into a road-ready aluminium enclosure
- Integrate COBALT8 into your production and live performances with the full-size MIDI connections and the 3.5mm Sync Ins and Outs
- Access all synthesiser functions and update COBALT8 via the free MODALapp, available on macOS, Windows, iOS, iPadOS, Android and AU/VST3
Analogue Goodness and so much more
Two independent oscillator groups with up to 4 oscillators each generate not only powerful virtual-analogue goodness, but like no other synthesiser before, 40 unique complex algorithms like Sync, Ring Modulation, Waveform Morphing, and many more are available to increase the creative options for new-generation synth sounds. Each Algorithm has a simple-to-use pair of controls selected to suit the particular algorithm or character, providing musicians the power of traditionally complex oscillator modulations or processes spontaneously.
For every synth lover: our 4-Pole Ladder Filter
COBALT8X’s newly designed, self-oscillating 4-Pole Morphable Ladder Filter with Resonance injects more warmth and bite. Switch between the four different filter modes, get creative with the Notch filter and form unusual synth textures with the Phasor. Two different characteristics allow to instil a more subtle behaviour or process the sound with sheer raw power.
Shape your sound
Three flexible audio-rate (2 x polyphonic) LFOs can be routed to a massive amount of destinations using the modulation matrix and sync to internal or external tempo. Three dedicated envelopes for the filter, amp and modulation allow excessive control over dynamics and expression. Switchable envelope types provide greater options to tailor the envelopes for specific sound purposes. COBALT8X’s sophisticated 12-slot modulation matrix supports easy assignments of complex modulation routes to keep the sound evolving. Four common modulation routings are pre-set here to free up space for more exciting ideas.
Next generation Sequencer and Arp
The integrated 512-note Realtime / Step Sequencer with four powerful Animation Lanes invites to compose massive and complex melodic patterns. The polyphonic 64-note step sequencer mode enables easy step input for note and animation values. Multiple sequencer trigger modes coupled with the powerful onboard arpeggiator (programmable up to 32 steps) and performance features such as Chord Hold, Inversions, Transpose, Sustain Latch.
It’s about playing
Professional keyboard players will love COBALT8X’s rugged steel and aluminium chassis and the premium FATAR 61-note full-size key bed. The keys support channel aftertouch and deliver smooth action to express powerful playing performances. For direct access of the parameters, COBALT8X features 29 endless knobs, 24 buttons and an X/Y joystick for pitch or modulation, and MPE support offers new ways of creative expression for sophisticated performers.
Polish your patches with studio-grade FX
Reshape your sounds completely with the onboard stereo effects engine. COBALT8X comes with a 3-slot FX engine with in-depth FX programming. To polish the sound, a total of 11 FX algorithms add character and depth, including Chorus, Phaser, Flanger (Pos), Flanger (Neg), Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb.

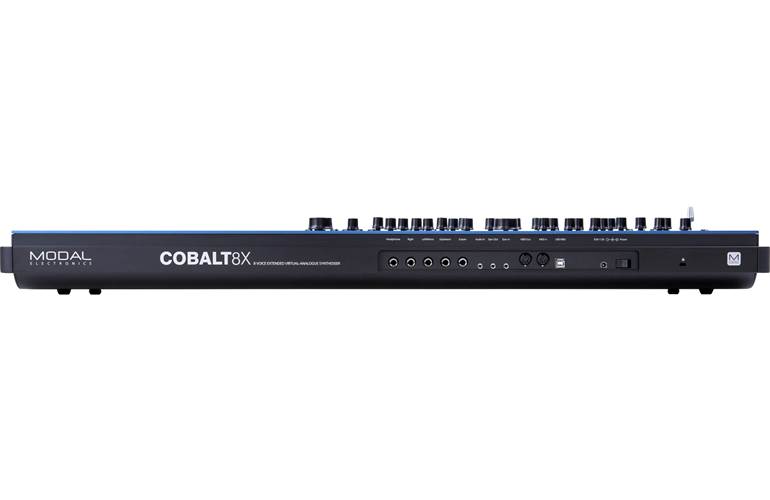

Looking to connect
Set to be played in any synth environment, COBALT8X comes with all physical connections required. Control the synth using USB, monitor with headphones or using the dedicated line outputs, sync with external gear using the full-size MIDI in and out or the 3.5 mm Sync in or outputs and take control of your sound using the built-in Sustain and Expression inputs. By poly-chaining any two COBALT8 devices, the amount of voices is easily doubled to 16 voices and 128 oscillators.
Access all Areas
There is plenty of room to store patch, effects and sequence creations. Out of the box, 300 of the total 500 patches are filled with factory patch banks, carefully programmed by some of the most accomplished sound designers of the world. One hundred customised effects configurations and sequences can be stored as well to be applied to any sound while performing.

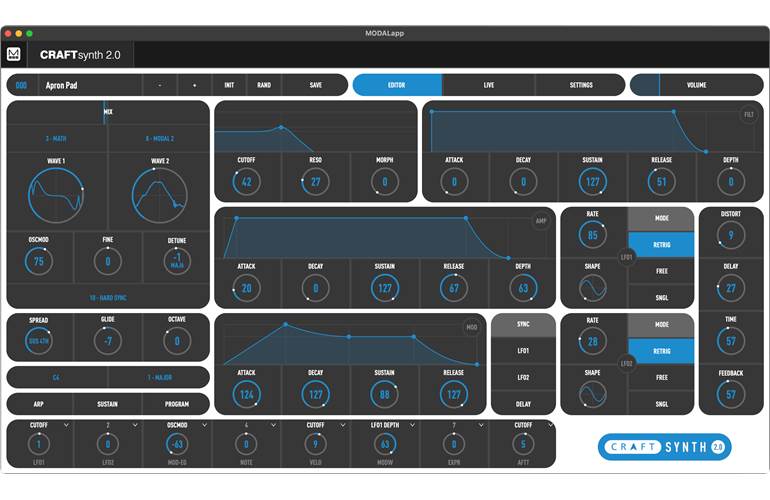

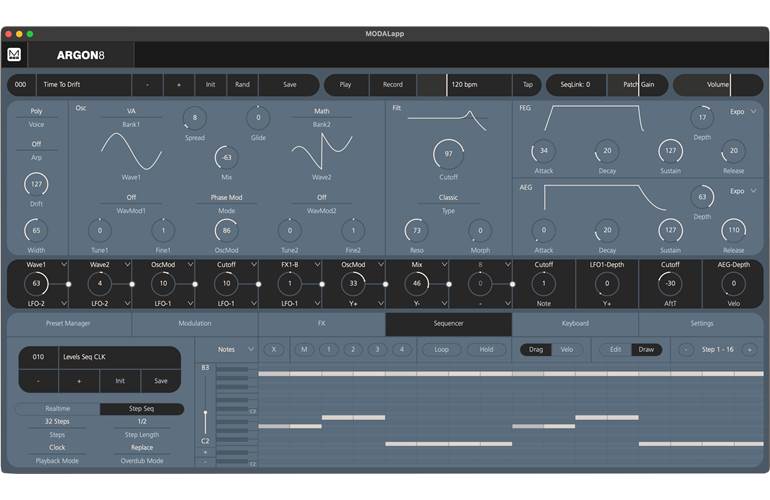

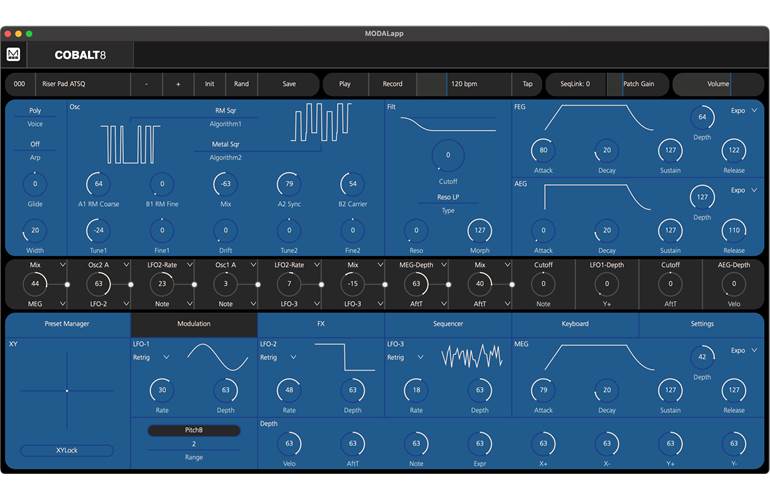

Free MODALapp for immersive sound programming sessions
The free MODALapp brings the comfort of screen-based editing on your computer or mobile device. Available as a standalone app for macOS, Windows, iOS, iPadOS or Android systems and in VST3 and AU plug-in formats it is the perfect companion for synth enthusiasts looking to deep dive to all sound forming and performance parameters to create their own signature sounds, and to backup and manage patches and sequences.
INTRODUCING ALGORHYTHMS FOR THE COBALT SERIES
Hot-on-the-heels of the COBALT Series firmware v1.1, Modal Electronics’ have just announced AlgoRhythms - an expertly curated preset pack comprising 30 unique sounds, 20 sequences, 25 rhythmic sounds and 5 uber- expressive performance centric patches.
Seeking the ultimate in sound sculpting creativity and creative expression fused with unrivalled polyrhythmic prowess? Look no further than the COBALT Series. Complete with aftertouch, an expensive mod-matrix and 3-clock synable LFOs (2 polyphonic and 1 global), there’s no denying the rhythmic presets scattered throughout the factory preset banks separate from the pack.
Modal Electronics set thier sound designers a challenge. Arm the Modal Community with a preset pack brimming with pulsating textures, reactive to the subtle inflection of a truly expressive performance and mapped for tactile control to switch your sound up on the fly. The result: AlgoRhythms. A collection of 30 unique sounds, 20 sequences, 25 rhythmic sounds and 5 uber-expressive performance centric patches, that showcase the sheer power the firmware v1.1 update provides.
From pulsating beds, to edgy leads and driving basses, everything the forward thinking creative is included to pepper your production with the power of polyrhythms.
New in Firmware v1.1
With the introduction of COBALT8 Firmware v1.1, users have access to six new unique algorithms firmly focussed on FM and AM oscillation models complete with dual controls for precise sound sculpting capability. These new algorithms include:
- FM Saw:Square: Frequency Modulation using a Sawtooth as the carrier and a Square as the modulator with full control over FM Depth (A) and Modulator Frequency Ratio (B)
- FM Square:Square: Frequency Modulation using a Square as both the carrier and modulator with full control over FM Depth (A) and Modulator Frequency Ratio (B)
- FM Tri:Square: Frequency Modulation using a Triangle as the carrier and a Square as the modulator with full control over FM Depth (A) and Modulator Frequency Ratio (B)
- Noise AM Saw: Sawtooth Wave amplitude modulated by a filtered noise source with full control over AM Depth (A) and Noise filter cutoff (B)
- Noise AM Square: Square Wave amplitude modulated by a filtered noise source with full control over AM Depth (A) and Noise filter cutoff (B)
- Noise AM Tri: Triangle Wave amplitude modulated by a filtered noise source with full control over AM Depth (A) and Noise filter cutoff (B)
In addition, Firmware v1.1 adds a raft of new feature updates and workflow enhancements including a Master Clock Mode to continually send MIDI clock information to compatible studio peripherals. For a full breakdown of the enhancements facilitated by Firmware Update 1.1, please visit the Modal Electronics Blog
Looking to jump into a world of extended virtual analogue synthesis? The COBALT Series are available immediately - what are you waiting for? A universe of sonic exploration awaits
|Polyphony||True 8 voice polyphonic|
|MPE||Supports MPE-compatible MIDI controllers, allowing you to apply polyphonic control and expression to individual notes|
|Oscillators||64 high-resolution virtual-analogue oscillators, up to 8 per voice|
|Two independent and self-contained oscillator groups with sine, pulse, triangle, sawtooth waveforms, 40 different algorithms including: complex analogue synthesis techniques, built-in crossmodulation (SYNC, RM, and many more), PWM, smooth morphing between VA waves, bit crushing, filtered noise.|
|Extended Oscillator Drift|
|Filter||4-Pole Morphable Ladder Filter with Resonance and four switchable configurations|
|Resonance and Balanced Filter Modes|
|Modulation||Three dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously including negative (reverse) versions for MOD and FILTER ENVs|
|Three audio-rate LFO’s with tempo sync (two poly, one global) with seven different shapes|
|Eight assignable modulation slots and four additional fixed modulation routings for common assignments with 12 modulation sources and 55 modulation destinations|
|Sequencer and Arpeggiator||Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations (Delay FX, LFO’s, sequencer and arpeggiator can be either clocked internally or externally)|
|Polyphonic Step Sequencer with 64 steps, 8 notes per step, 4 lanes of Parameter-Lock style animation, Step Input mode, multiple playback modes including gate modes and rest function|
|Built-In sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating|
|FX||Three incredibly powerful independent and user-configurable stereo FX engines for Chorus, Phaser, Flanger (Pos), Flanger (Neg), Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb that can be arranged in any order|
|User Memory||500 patch memories, all fully editable and ships with 300 factory programs|
|100 sequencer presets that can be linked to any patch for quickly loading arrangements|
|100 FX presets|
|8 Quick Recall slots accessible from the panel for quickly loading your favourite patches|
|Controls and Performance||Premium FATAR 61-key Keyboard with velocity and channel aftertouch|
|29 endless encoders, 24 buttons|
|4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired|
|Multiple keyboard modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4|
|Glide/Portamento with both legato and staccato modes|
|Chord Invert control to easily create chord inversions and variations|
|Inputs and Outputs||6.35 mm / 1/4″ TS dual-mono line outputs|
|6.35 mm / 1/4″ TRS headphone output|
|3.5 mm / 1/8″ TRS stereo audio input|
|MIDI DIN In and Out|
|3.5 mm / 1/8″ TS Analogue clock sync In and Out|
|Class compliant MIDI over USB connection|
|6.35 mm / 1/4″ TRS expression pedal input|
|6.35 mm / 1/4″ TS sustain pedal input|
|Enclosure and Display||Road-ready steel and aluminium enclosure with economical stained bamboo end cheeks|
|1.54-inch large OLED display for instant visual feedback at all times of playing/editing|
|Power||Power: DC-9.0V – 1.5A centre-positive|
|Dimensions (L x W x H)||855 x 300 x 100 mm / 33.7″ x 11.8″ x 4″|
|Weight||9 kg / 19.9 lbs|
