Yamaha DHR15 Powered PA Speaker

Was £639.00 Save £70.00

£569.00

In Stock

2 Available

Order before 3PM for FREE Delivery Tomorrow

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Make 3 payments of £189.67 No fees. Learn more

Pay Monthly

  • From £9.11 a month: 9.9% APR
  • Deposit from 0% to 50%
  • Pay over 12, 24 or 36 months
Apply Now

Buy Now, Pay 2023

  • No Deposit
  • Pay nothing for up to 12 months
  • Apply in minutes
Apply Now

FREE Delivery Tomorrow

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
Collect on Saturday
Glasgow
Collect on Saturday
Newcastle
Collect on Saturday
Birmingham
Collect on Saturday
Epsom
Collect on Saturday
Camden
Collect on Saturday

Manufacturer's ID: CDHR15UK

What we say:

At A Glance:

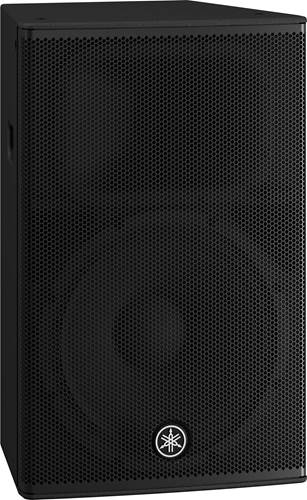

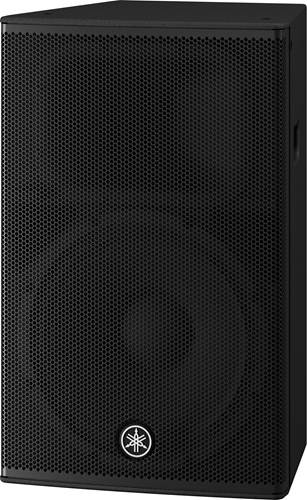

The Yamaha DHR15 is a versatile 15" 1000w powered PA speaker designed for use in fixed installations and mobile PA systems.

Features We Love:

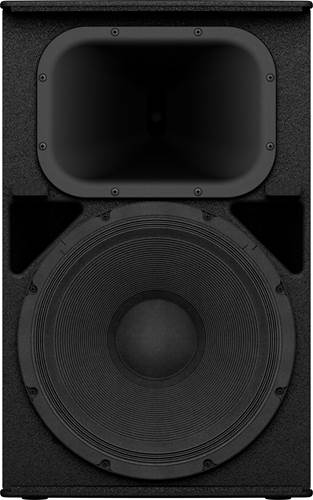

Custom-Designed Transducers

The proprietary transducers have been designed to work with the speaker's cabinet to offer a pronounced sound with minimal distortion.

2-Channel Mixer

The onboard two-channel mixer features a pair of combination XLR/TRS inputs, two RCA inputs and an XLR output. Making the DHR a versatile speaker that's easy to use as part of a PA system, or simply to plug a microphone into for presentations. The mixer also makes it possible to mix a stereo line-level input, which could be from a DJ set up and send that mix to another speaker to form a full system.

D-Contour

The speaker also features Yamahas D-Contour DSP processing that enhances the speaker's frequency response to work as a front of house speaker, or as a floor monitor. The DSP also allows for high pass filtering for when you use the speaker with a sub.

Fixed Installation

While the DHR15 can be pole-mounted for use in a mobile PA, it can also be suspended using its three rigging points, ideal for a fixed installation in your venue.

Highlights:

  • Clear sound quality with low distortion
  • Two channel mixer
  • Lightweight and portable
  • Can be suspended for fixed installation

Specification

System Type 2-way. Bi-amped Powered S[ealer. Bass-reflex
Frequency Range (-10dB) 44 Hz - 20 kHz
Crossover Type FIR-X Tuning™ (Linear phase FIR filter)
Crossover Frequency 1.8kHz
Maximum SPL*1 131dB SP

Transducer
LF Diameter 15" Cone
LF Voice Coil 2.5"
LF Magnet Ferrite
HF Diaphragm 1.4" PET
HF Type 1" Throat Compression Driver
HF Magnet Ferrite

Enclosure
Material, Finish, Colour Plywood, Durable Polyurea coating, Black
Floor Monitor Angle 57°
Dimensions (W x H x D with rubber feet) 432 x 692 x 405mm
  17" x 27.2 x 15.9"
Weight 24 kg (52.9 lbs)
Handles Side x2
Pole Pocket Φ35 mm x2 (0° or -7°)
Rigging Points for eyebolts M10 x3 (Top x2, Rear x1, L:30-50mm)

Amplifier & DSP
Amplifier Type Class-D
Power Rating Dynamic 2 1000W (LF:800W, HF:200)
Power Rating Continuous 465W (LF: 400W, HF: 65W)
Cooling Fan cooling, 4 speeds
AD/DA 24 bit / 48 kHz Sampling
HPF/LPF OFF, 100, 120Hz 24dB/oct HPF
DSP control, preset D-Contour (FOH/Main, Monitor, Off)
Speaker Protection Clip limiting, Integral Power Protetion, DC-fault
Amplifier Protection Thermal, Output over current
Power Supply Protection Thermal, Output over voltage, Output over current
Analog Input INPUT1: Combo x1, INPUT2: Combo x1 + RCA-pin x2 (Unbalanced)
Analog Output XLR3-32 x1 (CH! Parallel Through or CH1+CH2 Mix)
AC IN IEC AC inlet x1
Analog Input Impedance INPUR1 (XLR, TRS Phone) : 3kΩ, INPUT2 (XLR, TRS Phone, RCA Pin) : 10kΩ
Analog Input Sensitivety (LEVEL: Maximum) INPUR1: LINE= 0dBu / MIC= 32dBu, INPUT2= 0dBu
Analog Input Sensitivety (LEVEL: Center) INPUT1 : LINE= +10dBU / MIC= 22dBu, INPUT2= +10dBu
Maximum Analog Input Level INPUT1 : LINE: +24dBu, MIC: -8dBu, INPUT2: +24dBu
Controls LEVEL x2, LINE/MIC, HPF, D-CONTOUR, THRU/MIX, POWER
Power Consumption (Idle) 18w
Power Consumption (1/8 power) 74w
