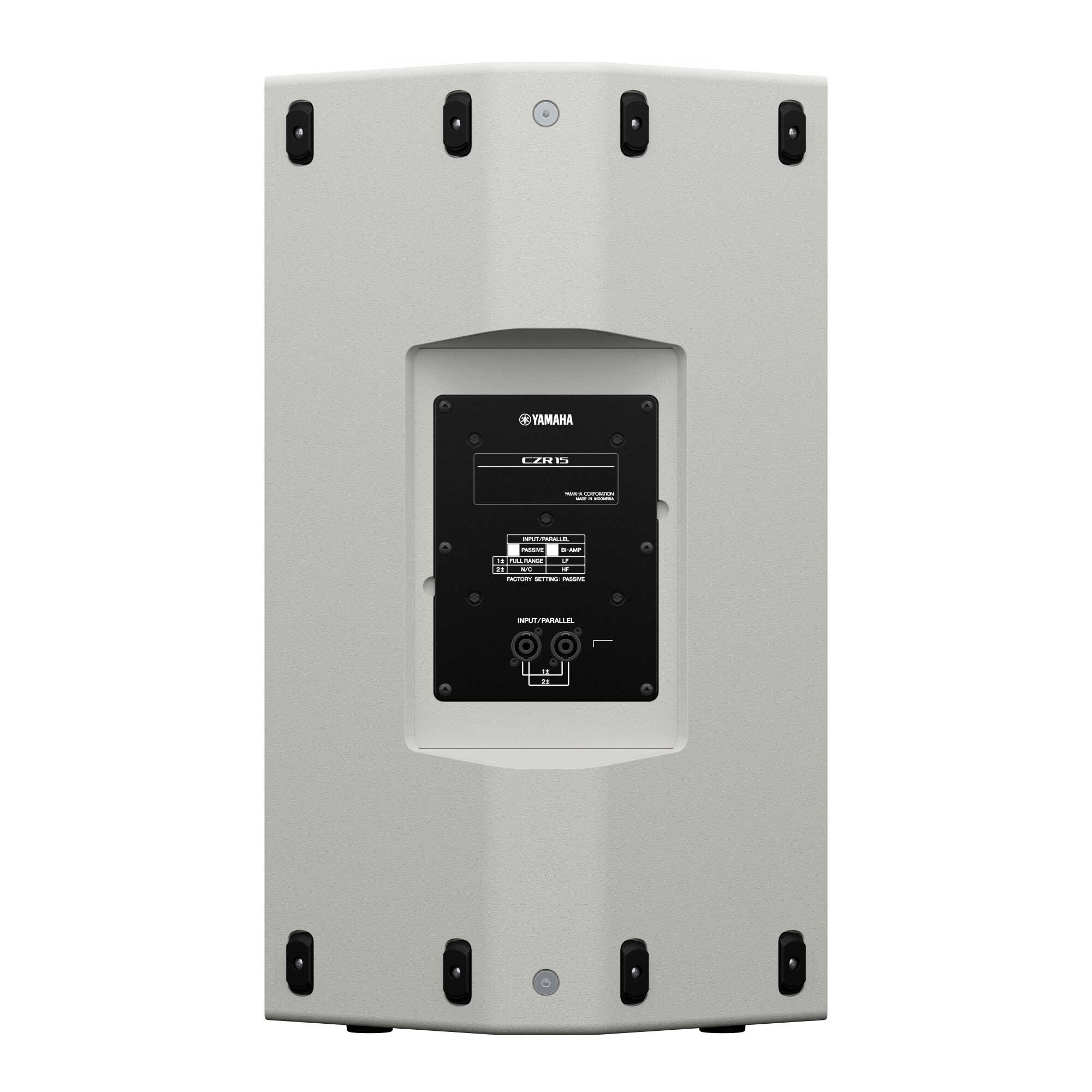

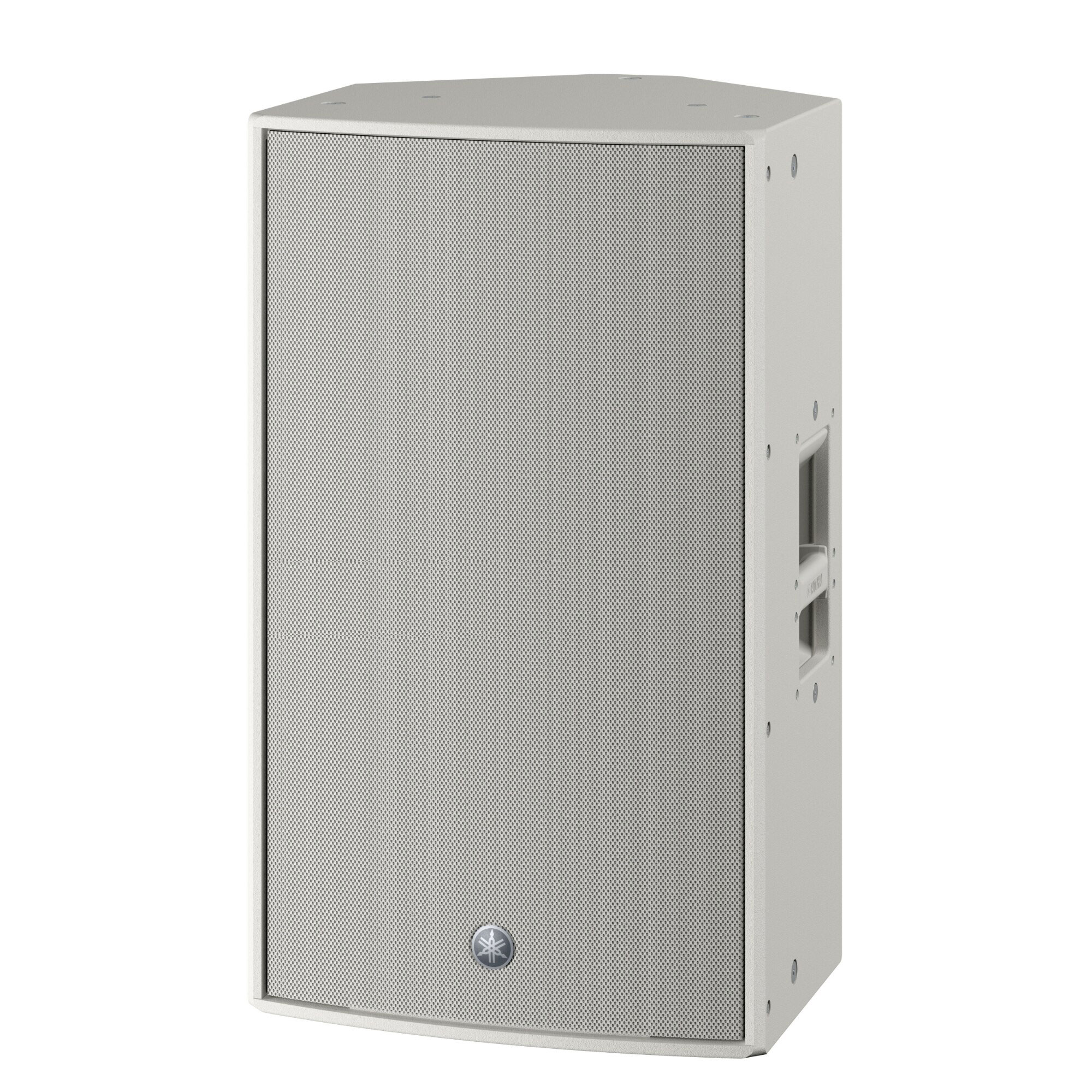

Yamaha CCZR15W Loudspeaker
Image Gallery
RRP £1,559.00 Save £230.00
£1,329.00
In Stock
2 AvailableOrder before 12PM for FREE Delivery Tomorrow
Includes 3-Year Warranty & Extended Exchange
Frequently Bought Together
Manufacturer's ID: VDD6370
The CZR15 is a 2-way loudspeaker offering high power handling and outstanding sonic performance in a portable, lightweight, yet rugged design. Its versatile, compact enclosure design makes the lightweight CZR15 ideal for range of live performance and installed sound environments—from live bands at outdoor festivals to DJ’s in clubs—these loudspeakers deliver crystal clear, high-quality sound with impressive low frequency performance.
- 2-way loudspeaker with a 2” HF and a 15" LF
- Features Yamaha's own Wide Dispersion CD Waveguide Horn
- High power 800W(PGM) power handling and Bi-amp capable
- Floor monitoring setting enables mirroring configuration
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating
- Dual-angle pole socket
- Optional speaker cover (SPCVR-DZR15)
- Rotatable horn and variety of U-bracket options (UB-DZR15H/V) for rigging allow for very flexible setup and speaker placement
Specification
|
Speaker type |
|
2-way Speaker, Bass-reflex |
|
Frequency range (-10dB) |
|
Passive: 43 Hz - 20 kHz, Normal (*1): 34 Hz - 20 kHz, FOH (*1): 33 Hz - 20 kHz |
|
Coverage area |
|
H90ﾟ x V50ﾟRotatable Constant Directivity Horn |
|
Floor Monitor Angle |
|
50° Symmetrical |
|
Components |
LF |
15" Cone, 3" Voice Coil, Neodymium magnet |
|
HF |
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet |
|
|
Crossover |
|
2.0 kHz |
|
Power rating |
NOISE |
Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W |
|
PGM |
Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W |
|
|
PEAK |
Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W |
|
|
Nominal impedance |
|
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω |
|
SPL |
Sensitivity (1W; 1m on axis) |
Passive: 97dB SPL, Bi-amp: LF: 99dB SPL, HF: 108dB SPL |
|
Peak (Calculated) |
Passive: 129 dB SPL, Bi-amp: LF: 131dB SPL, HF: 131dB SPL |
|
|
I/O connectors |
|
SpeakON NL4MP x 2 (Parallel) |
|
Handle |
|
Aluminium die-cast, Side x2 |
|
Pole socket |
|
Φ35 mm x2 (0° or -7°) |
|
Rigging |
|
M10 x 12 |
|
Dimensions |
W |
450 mm (17.7") |
|
H |
761 mm (30.0") (with rubber feet) |
|
|
D |
460 mm (18.1") |
|
|
Net weight |
|
21.3 kg (47.0 lbs) |
|
Options |
|
Bracket: UB-DZR15H/V, Cover: SPCVR-DZR15 |
|
Others |
|
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black |
