HH Tessen Array TNA-2051 Passive 2-way Enclosure

£699.00

Out of Stock

Please contact us for an estimated delivery time.

Includes Extended Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended Christmas Exchange as standard.
Buy now and exchange until 31st January 2025

Notify me when in stock

We'll share some similar product recommendations, and if the item does not come back in stock we will let you know.

Frequently Bought Together


Total Price: £

Manufacturer's ID: TNA-2051:P

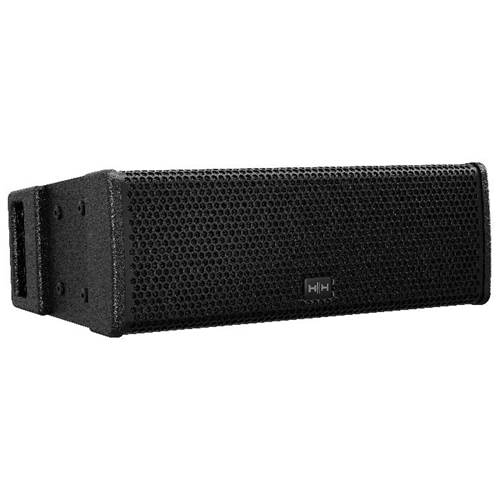

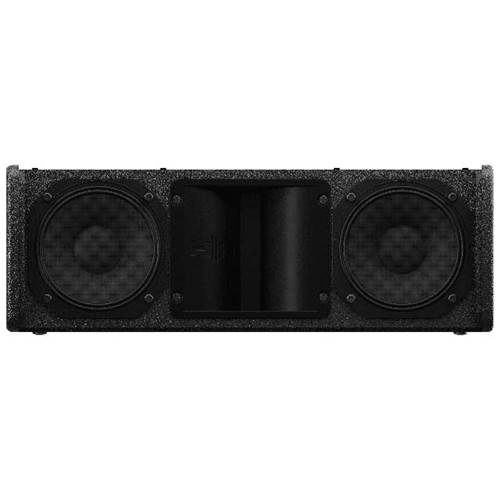

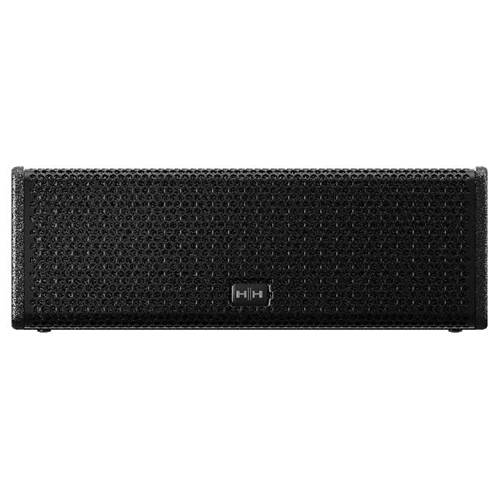

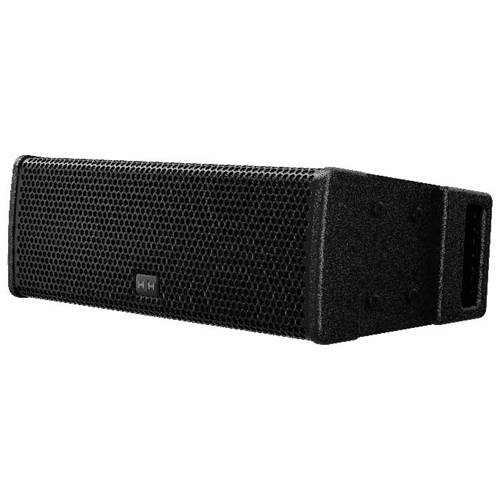

The TNA-2051 passive line array mid/high enclosure features dual 5-inch HH designed drivers alongside a 1.33-inch custom designed Celestion compression driver, mounted to a custom designed Celestion wave guide and horn. Equipped with integrated rigging hardware, the TNA-2051 can be installed efficiently. The TNA-2051 delivers a max SPL of 124dB with a wide frequency range of 65Hz > 20kHz. When combined with the TNA-2051, the TNA system provides a high specification flown installation system or ground stacked point source solution. The perfect live sound system.

Specification

Frequency Response (-10) 65Hz - 20kHz
Power 200W AES, 800W Peak
Max SPL (1M) (Peak) 123dB

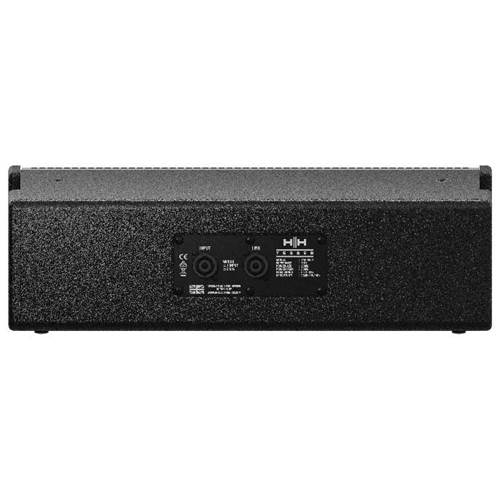

Input Connector NL4 ±1 Twist Lock Connector
HF Driver 1 x 1.33 Inch Celestion Compression Driver, mounted to Celestion Designed wave guide and horn
Crossover Frequency 2000HZ
Splay Angle Settings Dual Angle, 0° and 8°
Cabinet 15mm Plywood
Grille 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
Unit Weight 8.4 Kg, 18.5 lbs (each)
Frequency Response (-3) 100Hz - 18KHz
Sensitivity (1W/1M) 94dB
Nominal System Impedance 16 Ohms
Link Connector NL4 ±1 Twist Lock Connector
LF Driver 2 x 5 Inch HH designed driver
Nominal Dispersion 120° x 60° (120° x 30° single point)
Recommended HPF Frequency 100Hz
Finish Painted Black
Mounting Points M8 fixings for optional TNA-BRK1 flying bracket assembly (available separately)
Unit Dimensions (H x W x D) 158 x 460 x 265mm / 6.2" x 18.1" x 10.4"
