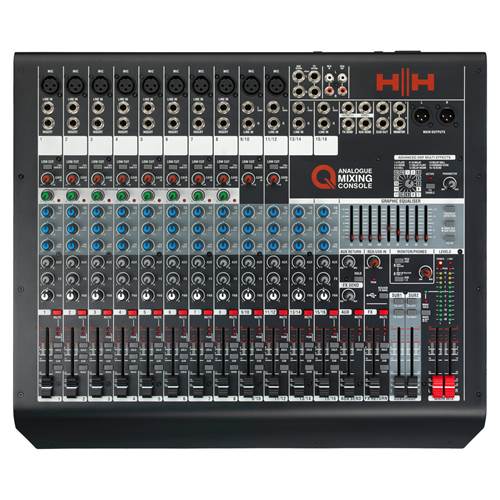

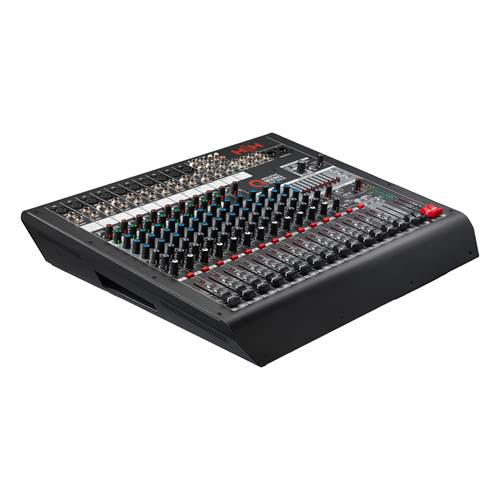

HH Q Series Q16FX Analogue Mixing Console
Image Gallery
£419.00
In Stock
2 AvailableOrder before 12PM for FREE Delivery Tomorrow
Includes Extended Exchange & 3-Year Warranty
Frequently Bought Together
Manufacturer's ID: Q16FX:U:DL
The Q16FX is a 16-channel analogue mixing console designed and engineered in the UK. The Q16FX consists of 16 input channels: 10 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.
Channels 1 to 8 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.
16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.
The Q16FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q16FX the perfect tool for recording performances, podcasts, and music production.
All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q16FX a complete portable powerhouse for traveling musicians and engineers alike.
Specification
| Mic Inputs | 10 x XLR CH1-12 |
| Line Inputs (Mono) | 8 x ¼” 6.3mm TRS CH1-8 |
| Line Inputs with Mic (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH9-12 |
| Line Inputs (Stereo) | 2 x Stereo ¼” 6.3mm TRS CH13-16 |
| EQ | 3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel |
| Low Cut | 75Hz cut off @ 18dB/Octave (CH1-12) |
| Compressor | 2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8) |
| Main Outputs | Balanced Stereo XLR |
| Monitors | Stereo ¼” 6.3mm TRS Sockets |
| Sub Outputs | 2 x ¼” 6.3mm TRS Sockets |
| FX Send | Mono ¼” 6.3mm TRS |
| Aux Send | Mono ¼” 6.3mm TRS |
| Phones | Mono ¼” 6.3mm TRS |
| RCA | Stereo Phono Sockets |
| Effects | 16 Reverb and delay effects with enable switch and parameter control. |
| Graphic EQ | Master 9 Band Graphic EQ with feedback detect, on/off toggle |
| USB Audio | Inputs/Outputs: 2-in/2-out, 24-bit, Sample Rate 48kHz |
| AC Power | Universal 100-240V ~ 50/60Hz (EIC C14 Socket, AC Cord included) |
