Zoom L-6 LiveTrak 10-Track Dig ...

£299.00 Available to Order

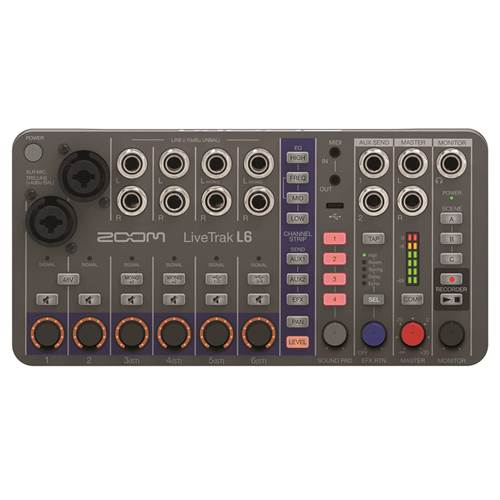

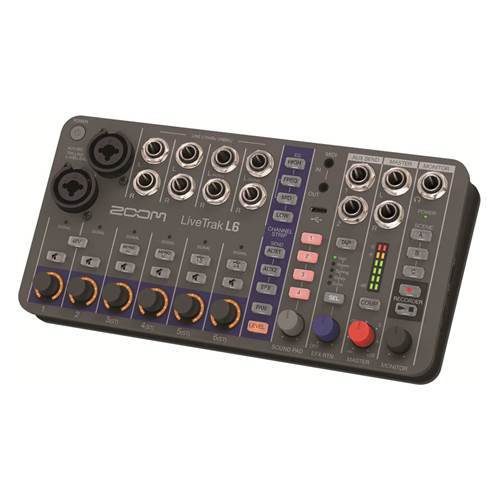

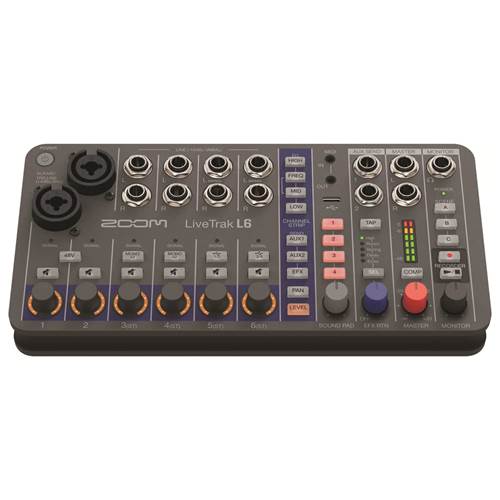

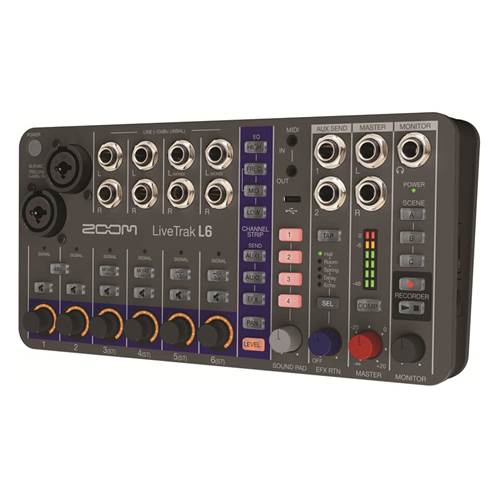

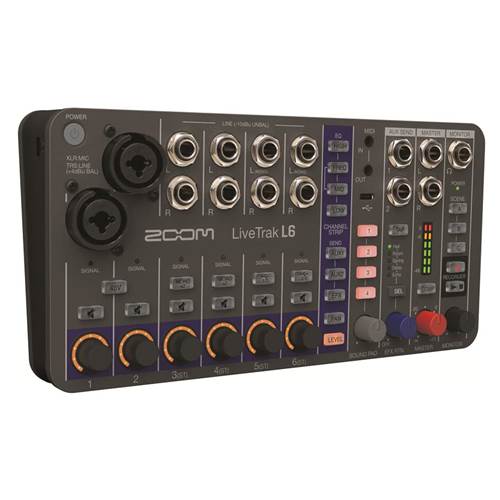

Zoom L-6 LiveTrak 10-Track Digital Mixer/Recorder

£299.00

Available to Order

Stock expected 12th December 2024

Includes Christmas Exchange & 3-Year Warranty

We're the first and only UK guitar retailer to offer a 3-year warranty & extended Christmas Exchange as standard.
Buy now and exchange until 31st January 2025

Notify me when in stock

We'll share some similar product recommendations, and if the item does not come back in stock we will let you know.

Frequently Bought Together


Total Price: £

Manufacturer's ID: 10012758

Small Just Got Very Big

The LiveTrak L6 is ZOOMs most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it’s perfect for bands, synth players, live streaming, and more.

Full Featured Mixer

Don’t let its size fool you. The L6 is designed with big mixer capabilities; full channel strip controls for each track including 3-band mid-sweepable EQ, aux sends, pan, and effects.

Powerful Multi-Track Recording

The L6 records 10 discrete tracks plus the full stereo mix on an SD card up to 1TB. Share the live mix, or transfer your multi-track audio files to your favorite DAW for editing and mixing.

32-Bit Float Technology

With 32-bit float and pristine sounding preamps, you will get clip-free audio every time, without the need to set gain.

Battery Power

Use four AA’s for up to 3 hours of power or an external USB battery for extended use.

Plenty of Inputs

  • INPUTS: 2 XLR/TRS combo inputs plus 4-stereo ¼” inputs.
  • MONO X2: Get two additional mono inputs instead of a stereo input.
  • USB RETURN: USB Audio Return for backing tracks and other audio from a laptop

The Right Outputs

  • AUX OUTPUTS: Send custom mixes to monitors, effects, or external devices.
  • MAIN OUTPUTS: Connect to studio monitors or live speakers
  • HEADPHONE OUTPUT: Headphone output with volume control

Loaded with Effects

Enhance your mix with effects including Delay, Echo, and Spring, Room, and Hall reverbs.

Advanced Compressor

The L6’s main output compressor increases loudness while adding natural saturation. With 32-bit float, the audio will never clip, even at high volume.

MIDI Connectivity

Connect, program, and sync the L6 to your outboard gear via the 3.5mm MIDI I/O, or to a computer via USB.

  • Connect Outboard gear like drum machines and synths
  • Map parameter controls such as volume, pan, and EQ to outboard gear
  • Tempo synchronization with effects like delay

Record & Control

The L6 can be used as a 32-bit float 10-in / 4-out USB audio interface for your computer, iOS, or Android device while recording simultaneously to the SD card. It’s also a control surface for your favorite DAW.

Broadcast & Stream

The L6 is the perfect companion for video streams that need broadcast quality audio no matter the location. Connect to your favorite streaming software on PC, Mac, iOS devices.

LED Control Knobs

Adjust levels and parameters quickly and precisely with the LED control knobs.

Scene Saving

Once you’ve dialed in your mix, save it to one of the three Scene memories for instant recall.

Package Includes:

  • LiveTrak L6
  • AD-17 USB AC Adapter
  • USB-C Cable

Features:

  • 10-channel ultra-Compact digital mixer
  • 2 XLR/TRS Combo inputs + 4-Stereo inputs
  • 12-track simultaneous recording
  • MIDI In/Out for mixer control and USB MIDI interface
  • 3 Scene memory for storing mixer and tempo setting
  • 32-bit float multi-track recording to micro-SD card
  • 5 Internal Send Effects
  • 2 AUX send outputs
  • 4 Assignable sound pads (sample player)
  • 3-Band EQ with MID freq control for each channel
  • Headphone output + Master output
  • Eurorack compatible
  • 12-in / 4-out Audio interface
  • 4 AA battery power operation or USB power

Specification

Input and output channels:

  • Inputs
    • MIC/LINE (mono): 2
    • LINE (stereo): 4
  • Outputs
  • AUX SEND (mono): 2
  • MASTER (stereo): 1
  • MONITOR (stereo): 1

Inputs:

  • MIC/LINE
    • Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
    • Input gain: Adjustment unnecessary (dual A/D converter circuits used)
    • Input impedance: XLR: 3.8 kΩ or more
    • TRS: 39 kΩ or more
    • Maximum input level: XLR: +4 dBu, TRS: +24 dBu
    • Phantom power: +48 V, Channel total of 10 mA or less
  • LINE
  • Connectors: 8 TS phone jacks (balanced)
  • Input impedance: 10 kΩ
  • Maximum input level: +9 dBu

Outputs:

  • AUX SEND
    • Connectors: 2 TRS phone jacks (impedance balanced)
    • Maximum output level: +9.5 dBu
    • Output impedance: 147 Ω
  • MASTER
    • Connectors: 2 TRS phone jacks (balanced)
    • Maximum output level: +15 dBu
    • Output impedance 147 Ω
  • MONITOR
    • Connector: TRS phone jack
    • Maximum output level: 50 mW + 50 mW (63 Ω load)
    • Output impedance: 14.7 Ω
  • Buses
    • MASTER: 1
    • AUX SEND: 2
    • SEND EFX: 1

Audio interface

  • Input and output channels:
    • Input: 12 channels
    • Output: 4 channels
    • Sampling frequency: 48 kHz
    • Bit depth: 32-bit float / 24-bit
    • Interface: USB 2.0

  • Maximum simultaneous recording tracks: 12
  • Maximum simultaneous playback tracks: 2
  • Recording formats: 48kHz, 32-bit float, mono/stereo WAV
  • Card reader
  • Class: Mass storage class USB 2.0 High Speed
  • Sampling frequency
  • 48 kHz
  • Frequency response
  • 20 Hz – 20 kHz / -1.0 dB
  • Power
  • 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
  • AC adapter (ZOOM AD-17): DC 5V/1A
  • USB bus power is supported
  • Power consumption
  • 5W maximum
