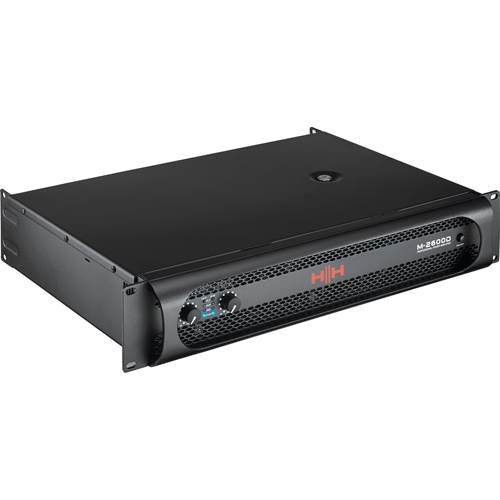

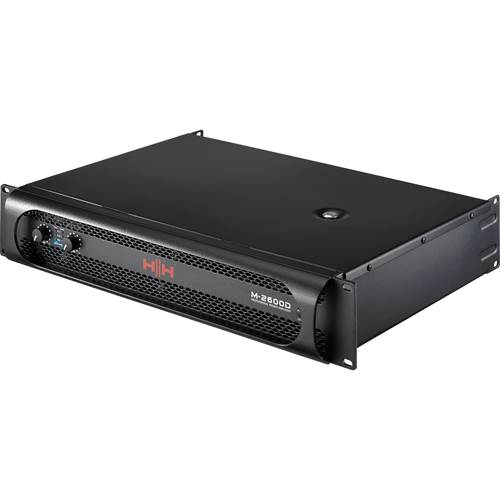

HH M Series M2600D Stereo Power Amplifier
Image Gallery
£1,099.00
Awaiting Stock
Place your order today and we will email you when we have an estimated delivery date.Includes 3-Year Warranty & 30-Day Exchange
Manufacturer's ID: M-2600D:220240
M-2600D M-Series Power Amplifiers
HH M-Series power amplifiers are high power, 2U rack amplifers designed to provide maximum performance for demanding applications. Three models are available all featuring heavy duty low noise toroidal power supplies and rugged construction. Suitable for anywhere you need high fidelity, high power amplification.
Featuring high quality balanced XLR inputs, user selectable input sensitivity , SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls and comprehensive protection circuits.
HH has over five decades of experience designing quality power amplifiers, and indeed was one of the pioneers in this area.
Specification
|
Amplifier Type
|
Class H High Performance Professional linear design |
| Cooling | Forced air, variable speed fan, air flow front to back |
| Dimensions | 88 x 482 x 297mm, 3.5 x 19 x 11.7" |
|
Input Impedance (Bal/Unbal)
|
20KΩ/10KΩ |
| Inputs | 2x Balanced XLRs |
| Output Power : 8 Ohm Stereo | 2x1500W |
|
Output Power : 4 Ohm Stereo
|
2x2600W |
|
Output Power : 8 Ohm Bridge
|
5150W |

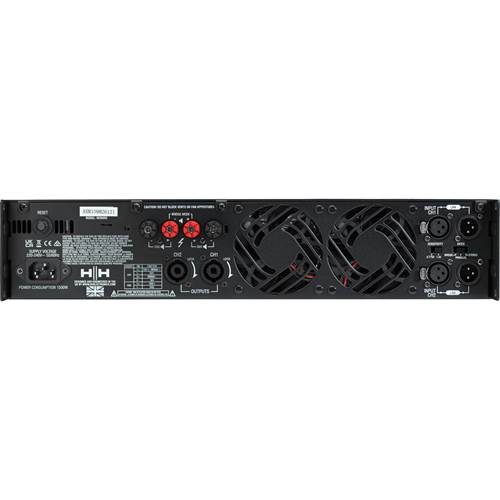

| Outputs | 2x locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced XLR link outs |
|
Power Connector
|
Removeable IEC Power Cord C14 |
|
System Type
|
2U Professional Power Amplifier |
|
Voltage Gain (8Ω)
|
37dB |
|
Frequency Response
|
20Hz - 20KHz (+0, -1dB) |
|
Controls
|
Volume Controls (per channel), Power switch, Input Sensitivity Switch, Bridge/Routing Mode Switch |
|
Features
|
Soft start, comprehensive protection |
|
Input Sensitivity
|
0.775V/1.4V |
|
Protection
|
Soft start, VHF, RF, short circuit, over load, clip limit, over heat |
|
Weight
|
24.2Kg/pc, 53.4 lbs/pc |
