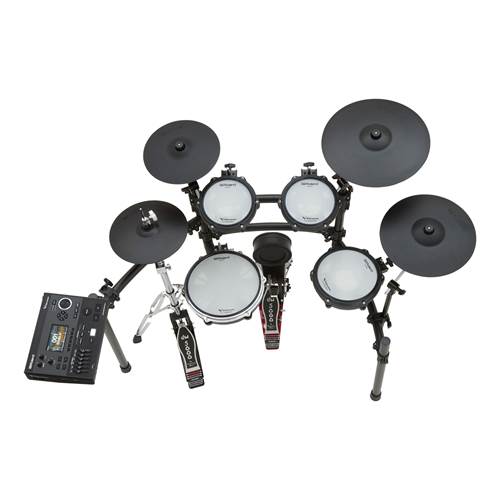

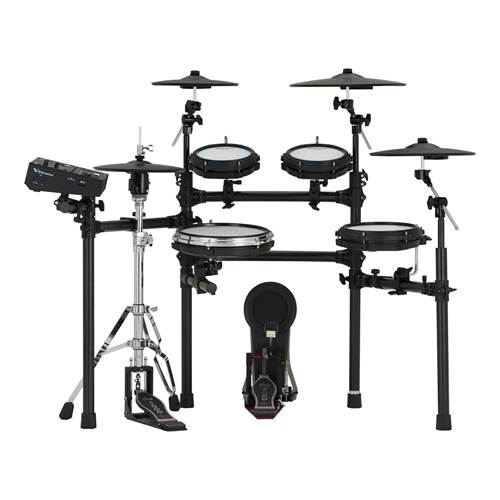

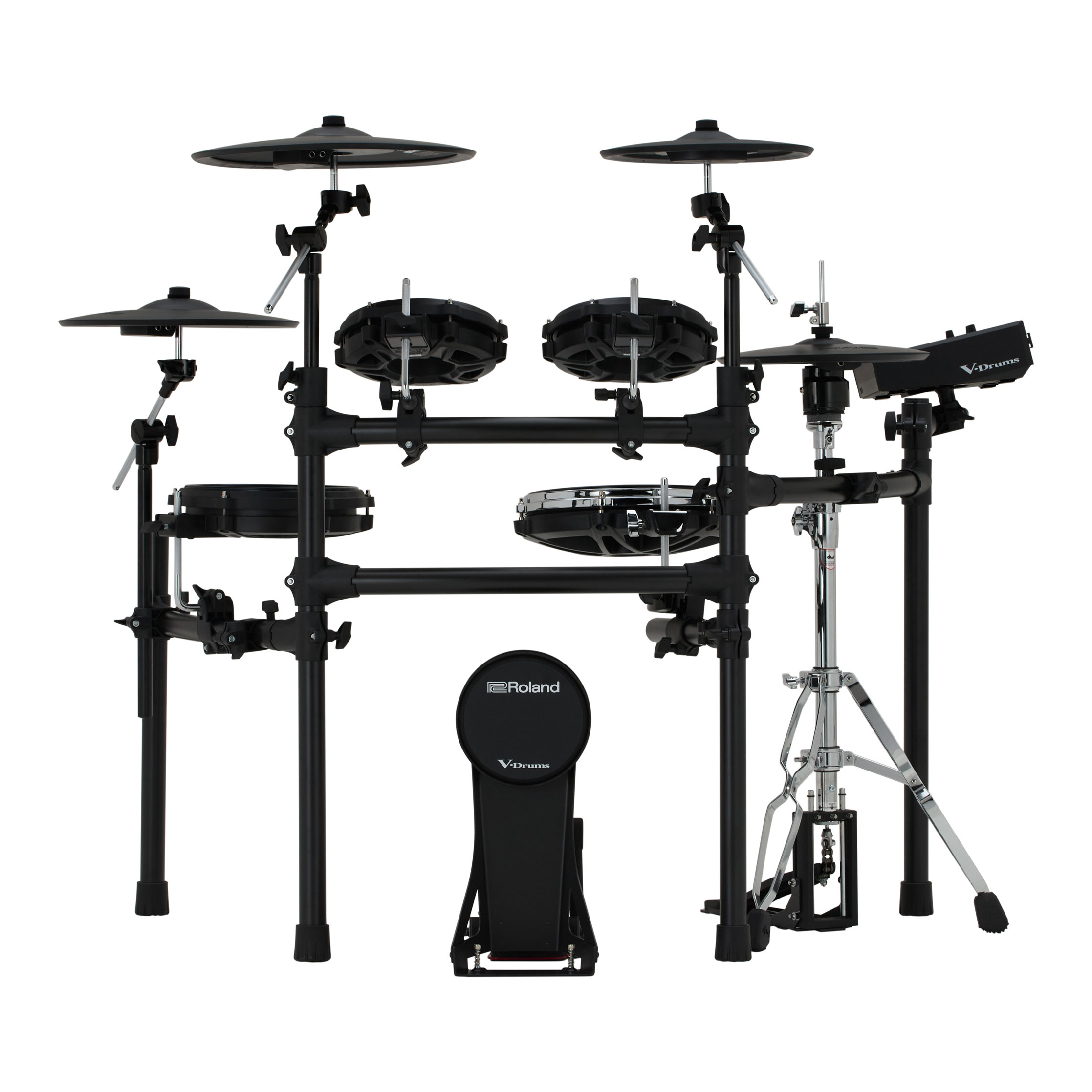

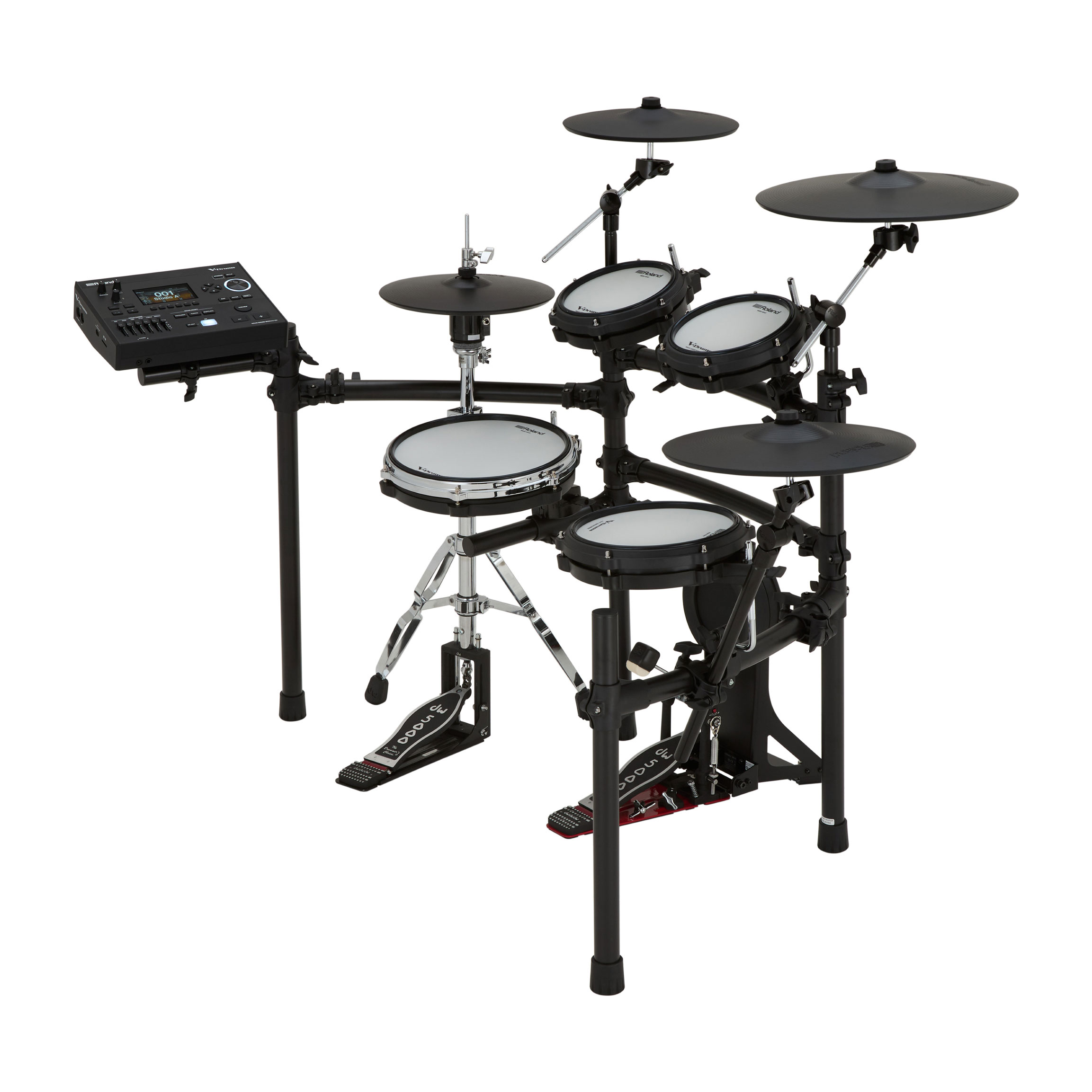

Roland TD513 Electronic Drum Kit

Specification

(kick pedal and throne sold separately)

Drum Kits
200 (Preset: More than 70)

Instruments
More than 1,000

Effect Types
Layer Transient: each layer
Layer Equalizer: each layer
Pad Equalizer: each pad (by head and rim)
Pad Compressor: each pad (head and rim common)
Overhead Mic Simulator
Room/Reverb/Kit Resonance
Bus Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types
Bus Reverb
Master Compressor
Master Equalizer

User Sample Import
Number of User Sample: Maximum 500 (includes factory preloaded user samples)
Sound Length (total): 24 minutes in mono, 12 minutes in stereo
File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)

Song Player (SD card)
Audio File: WAV (44.1 kHz, 16/24 bits), MP3

Recorder
Recording Method: Realtime
Maximum Note Storage: approx. 40,000 notes
Export File Format: WAV (44.1 kHz, 16 bits), SMF
or
Recording Method: Realtime
Maximum length: 60 min (temporary recording: 1 min) (*1)
File format: WAV (44.1 kHz, 16 bits)

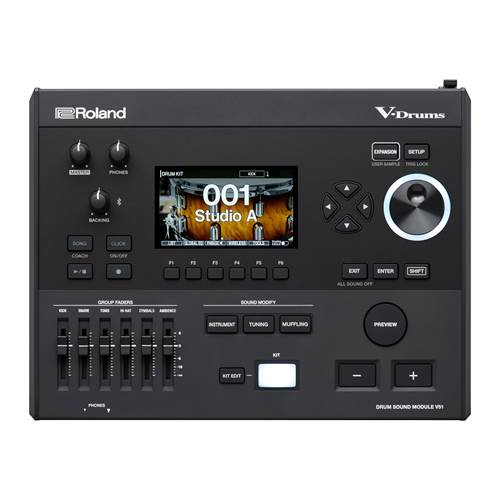

Display
Graphic color LCD 4.3 inch

Faders
6 (KICK, SNARE, TOMS, HI-HAT, CYMBALS, AMBIENCE)

External Memory
SD card (SDHC supported)

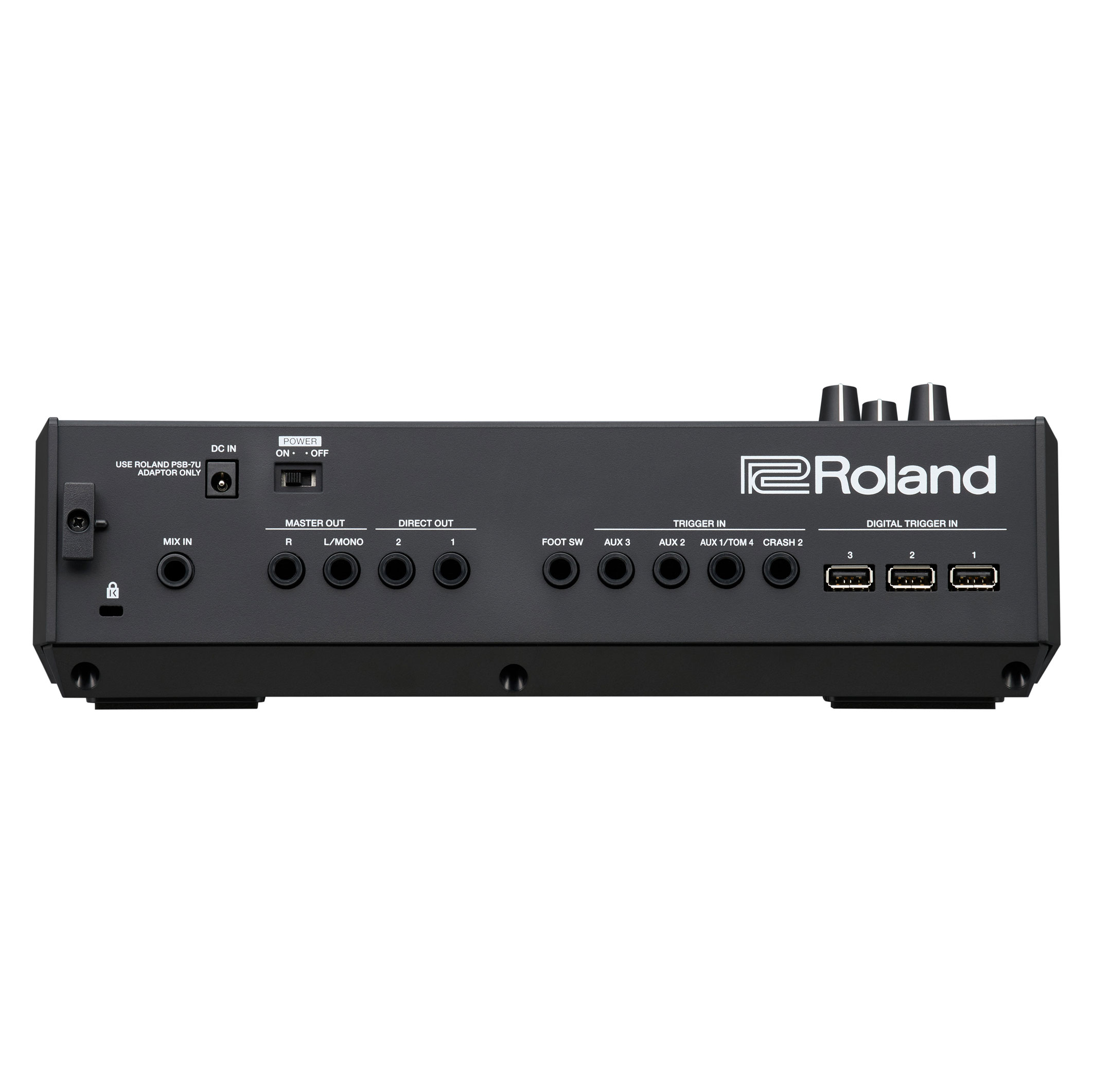

Connectors
TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) (Exclusion use with digital pad)
TRIGGER IN jack x 4: 1/4-inch TRS phone type (CRASH 2, AUX 1/TOM 4, AUX 2, AUX 3)
DIGITAL TRIGGER IN port x 3: USB A
MASTER OUT jacks (L/MONO, R): 1/4-inch phone type, unbalanced
DIRECT OUT jack x 2: 1/4-inch TRS phone type, unbalanced

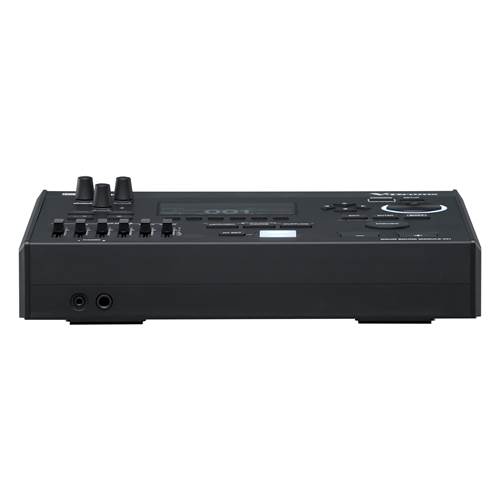

PHONES jack x 2: Stereo 1/4-inch phone type, Stereo miniature phone type
MIX IN jack x 1: Stereo 1/4-inch phone type

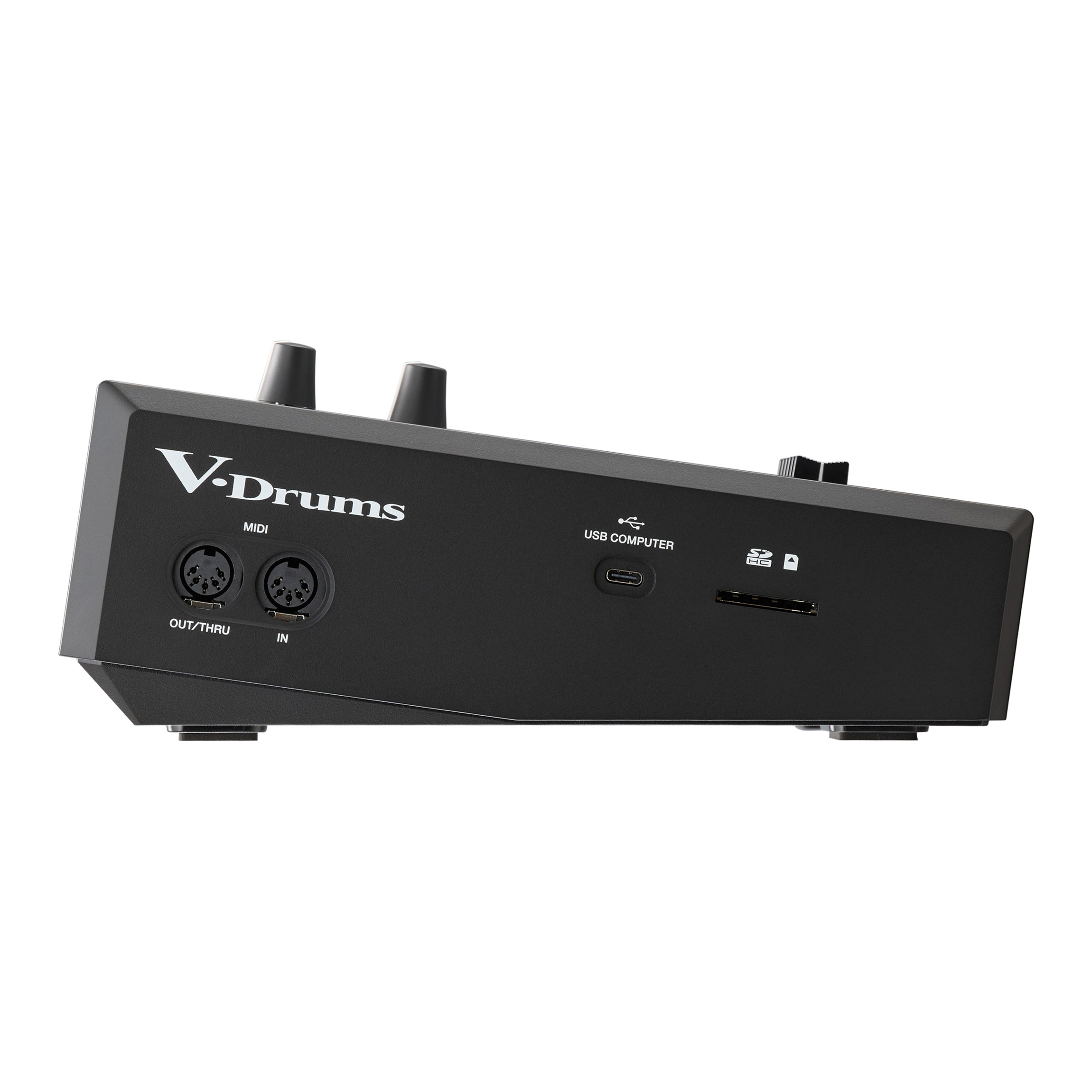

MIDI (IN, OUT/THRU) connectors
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
FOOT SW jack: 1/4-inch TRS phone type
DC IN jack

Number of USB Audio Record/Playback Channels
-Vendor Mode
Sampling Rate (Original): 44.1 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 48 kHz
Record: 32 channels
Playback: 32 channels

-Generic Mode
Sampling Rate (Original): 44.1 kHz
Record: 2 channels
Playback: 2 channels

Power Supply
AC adaptor

Current Draw
1,700 mA

Power consumption when in off mode (when the power automatically turns off)
0.24 W

Dimensions
316 (W) x 246 (D) x 103 (H) mm
12-1/2 (W) x 9-11/16 (D) x 4-1/16 (H) inches

Weight
2.4 kg
5 lbs 5 oz

Accessories
Quick Start
Roland Cloud Connect Setup Guide
AC adaptor (PSB-7U)
Special connection cable
Sound module mounting plate set
Leaflet "USING THE UNIT SAFELY"

Options (sold separately)
Pad: PD series, PDX series, PDQ series, BT-1
Cymbal: CY series, CYQ series
Kick: KD series, KDQ series, KT series
Hi-Hat: VH series
Hi-Hat Control Pedal: FD series
Acoustic Drum Trigger: RT series
Footswitch: BOSS FS-5U, FS-6
Personal Drum Monitor: PM series
V-Drums Accessory Package: DAP-3X
V-Drums Mat: TDM Series
Noise Eater: NE series

(*1) Song recording is required SD card. The case of no inserted is capable to record the temporary recording approximately 1 minutes.
