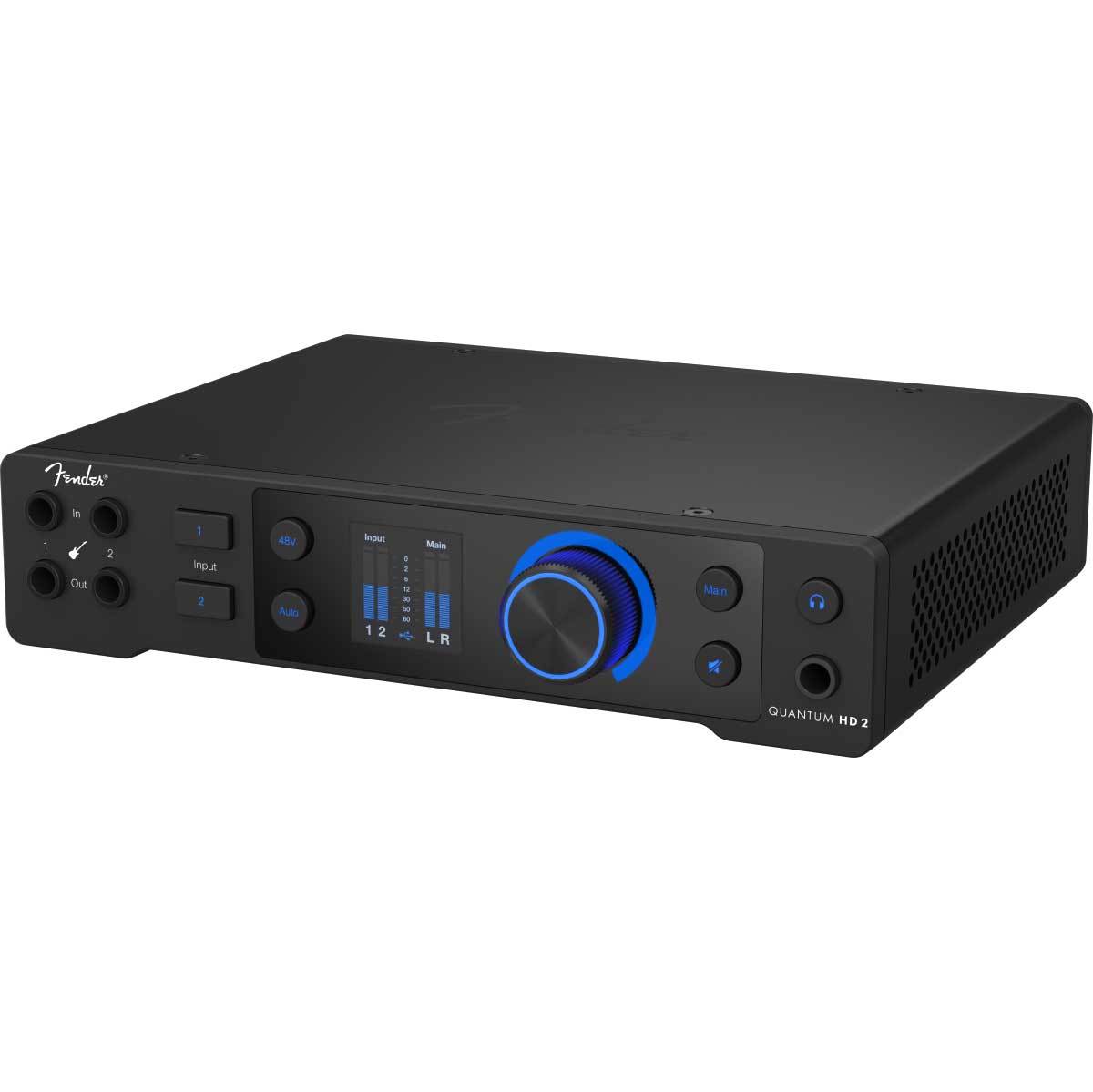

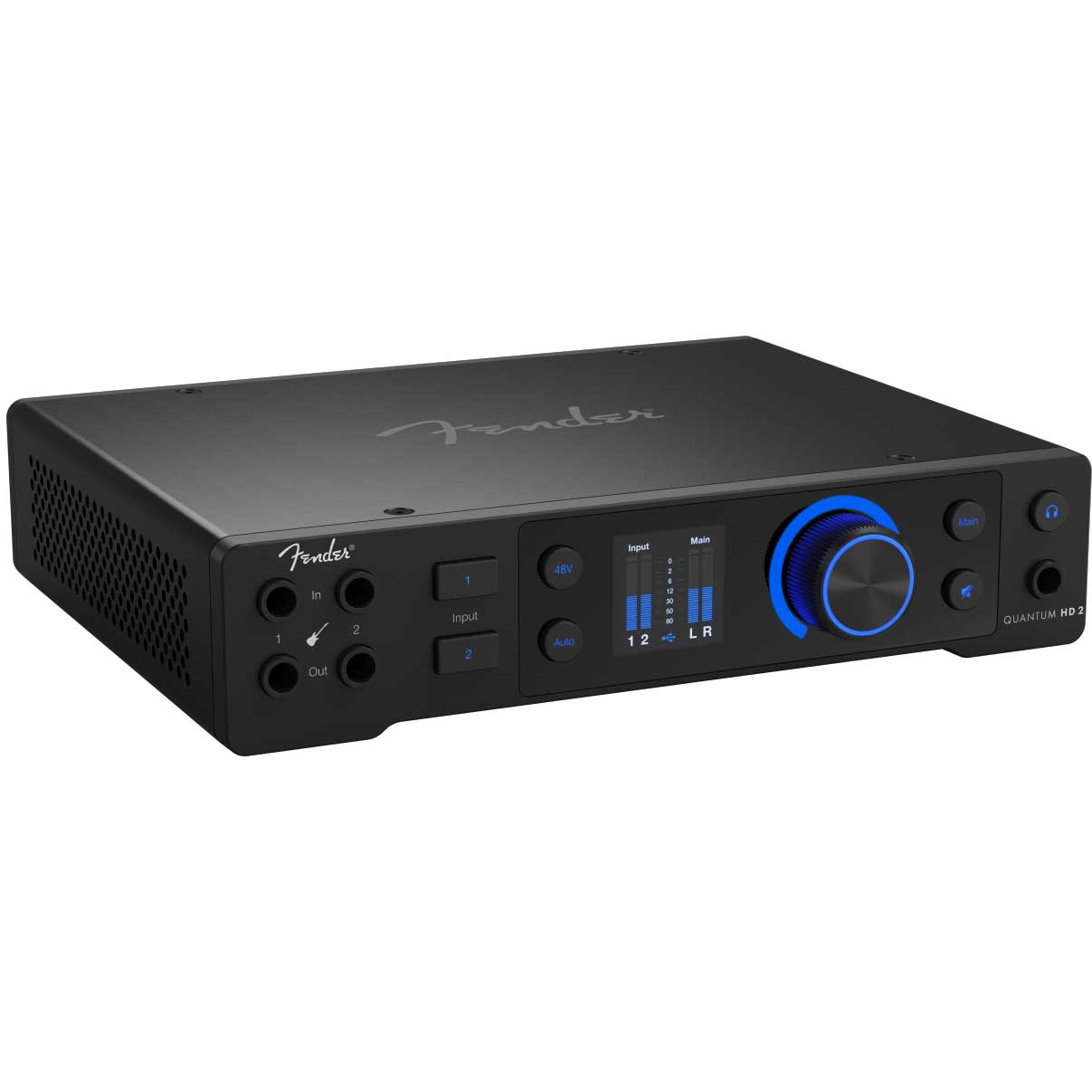

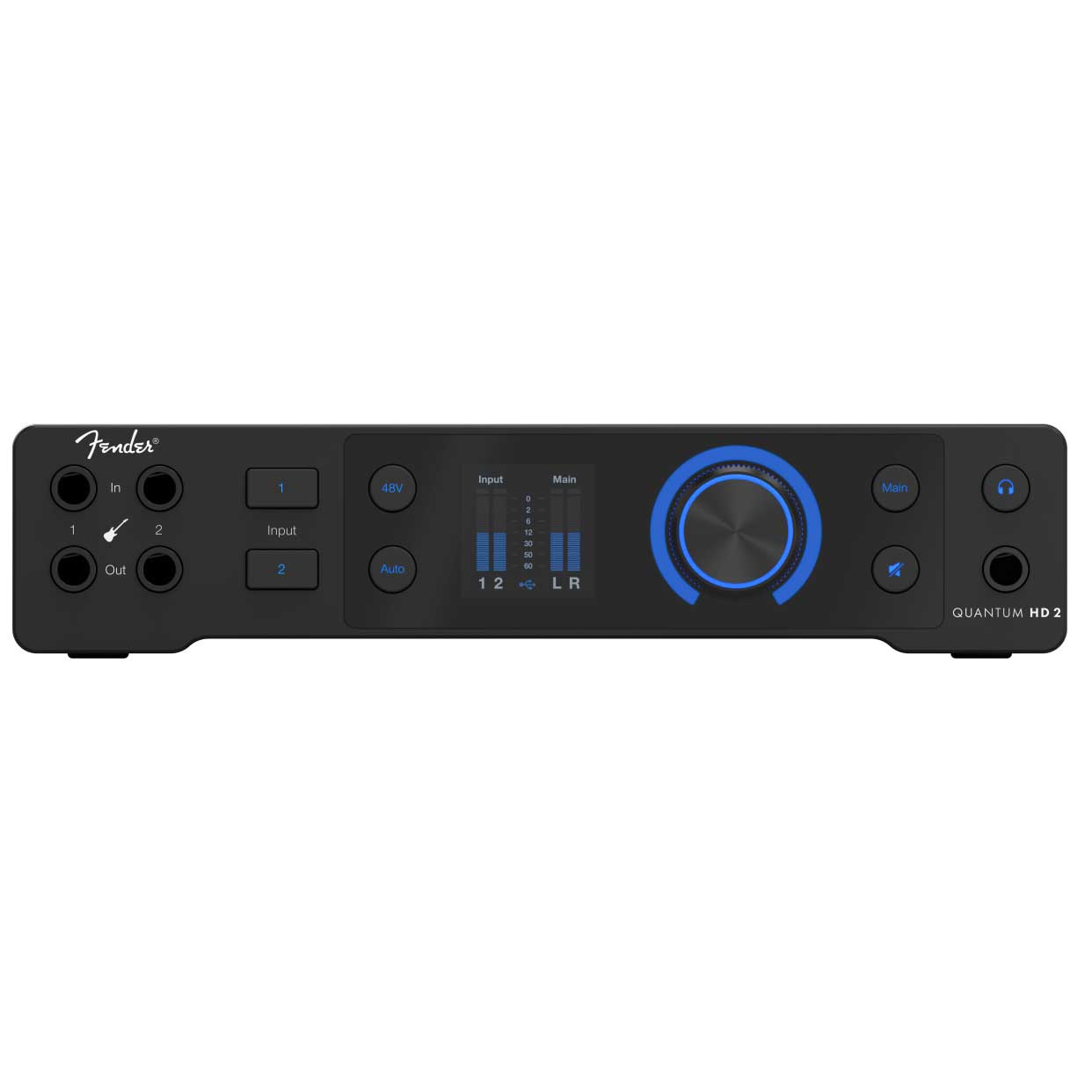

Fender Quantum HD 2 USB-C Audio Interface
Image Gallery
£479.00
In Stock
6 AvailableOrder before 4PM for FREE Delivery Tomorrow
Includes 3-Year Warranty & 30-Day Exchange
Manufacturer's ID: 2777704608
The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.
Front-facing Fender instrument inputs provide transparent, studio-ready recordings for guitar and bass, while Auto Gain simplifies setup and re-amp outputs allow tonal experimentation without extra takes. Integrated DSP monitor mixing and loopback routing streamline streaming, podcasting, and recording workflows.
Control preamp gain, phantom power, and monitoring remotely via the Fender Studio Pro or Universal Control app for seamless integration. Ideal for project studios, the Fender Quantum HD 2 balances compact size with professional-grade I/O
- Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
- 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
- Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.
- Front-facing Fender instrument inputs optimized for guitar and bass
- Auto Gain button for instant, hassle-free recording levels
- Re-amp outputs for creative tone exploration with amps and pedals
- DSP monitor mixer and loopback routing for streaming and monitoring
- Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
- Professional software included: Fender Studio Pro perpetual license
Specification
| Electronics | |
| Headphone Jack | One - 1/4" TRS Female Stereo |
| Connectivity | USB-C |
| Voltage | 230V UK |
| Phantom Power | +48 VDC |
| Performance | |
| Digital Audio Bit Depth | 32-bit |
| Digital Audio Dynamic Range | 124 dB |
| Inputs | |
| Instrument Inputs Dynamic Range | 111 dB (A-Weighted, Minimum Gain) |
| Instrument Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Instrument Inputs Gain Range | 75 dB |
| Instrument Inputs Maximum Level | +21 dBu (Unbalanced, Minimum Gain) |
| Line Inputs Dynamic Range | 118 dB (A-Weighted, Minimum Gain) |
| Line Inputs Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Line Inputs Gain Range | ± 10 dB |
| Line Inputs Impedance | 10K Ohms |
| Line Inputs Maximum Level | +18 dBu (Balanced, Minimum Gain) |
| Microphone Input Connection Type | XLR Female (Combo), Balanced |
| Microphone Preamp Dynamic Range | 116 dB (A-Weighted, Minimum Gain) |
| Microphone Preamp Equivalent Input Noise | -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted) |
| Microphone Preamp Frequency Response | 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz) |
| Microphone Preamp Input Impedance | 1600 Ohms |
| Microphone Preamp Maximum Input Level | +18 dBu (Balanced, Minimum Gain) |
| Outputs | |
| Headphone Outputs Dynamic Range | 118 dB (A-Weighted) |
| Headphone Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz) |
| Headphone Outputs Impedance Working Range | 33 Ohms |
| Headphone Outputs Maximum Output | 11 dBu (50 Ohms) |
| Line Outputs Connection Type | 1/4" TRS Female |
| Main And Line Outputs Dynamic Range | 123 dB (A-Weighted) |
| Main And Line Outputs Frequency Response | 20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz) |
| Main And Line Outputs Maximum Level | +18 dBu (Balanced) |
| Main And Line Outputs Output Impedance | 51 Ohms |
| Main Outputs Connection Type | 1/4" TRS Female |
| Included Accessories | DB-9 breakout cable, 1.5M USB-C to USB-C cable |
