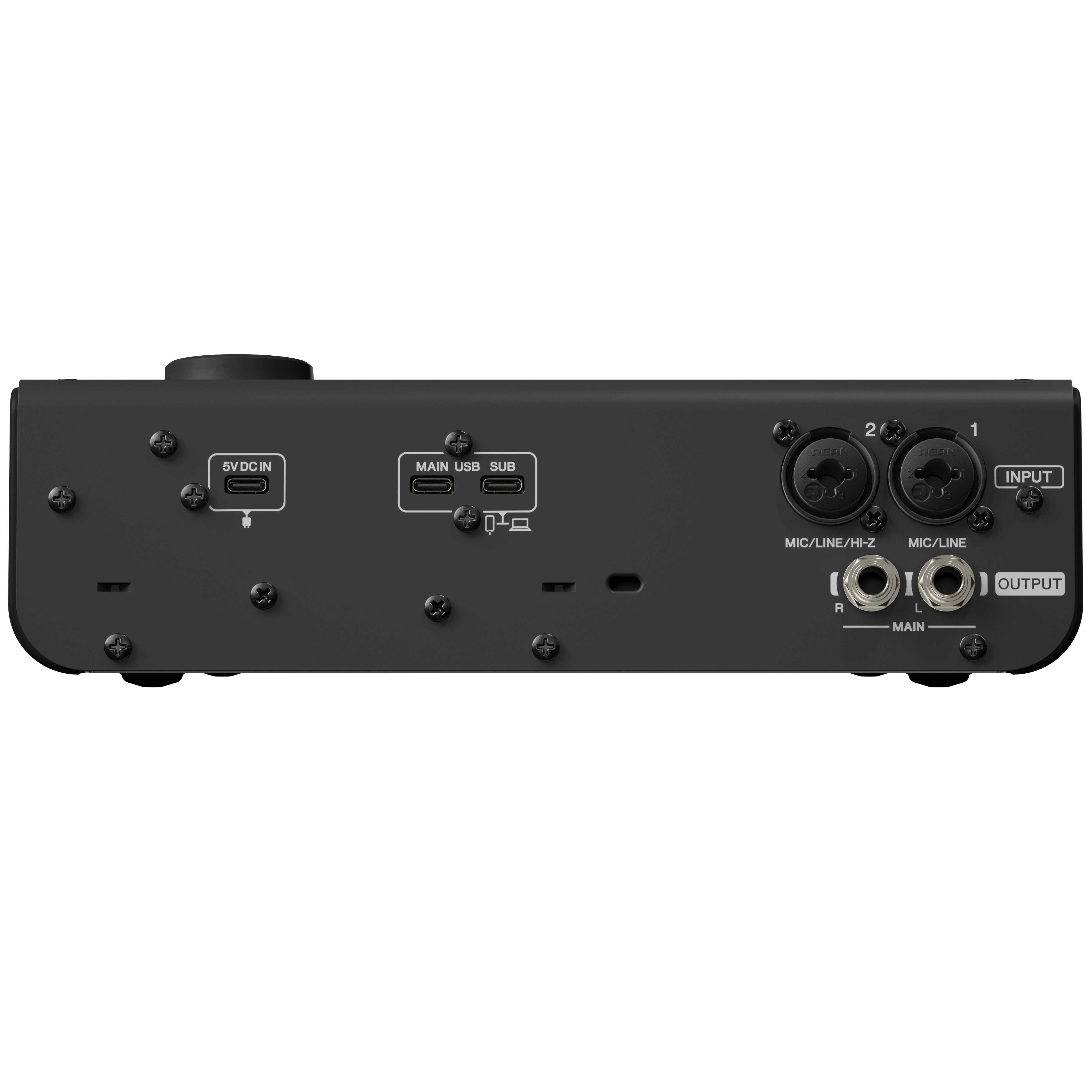

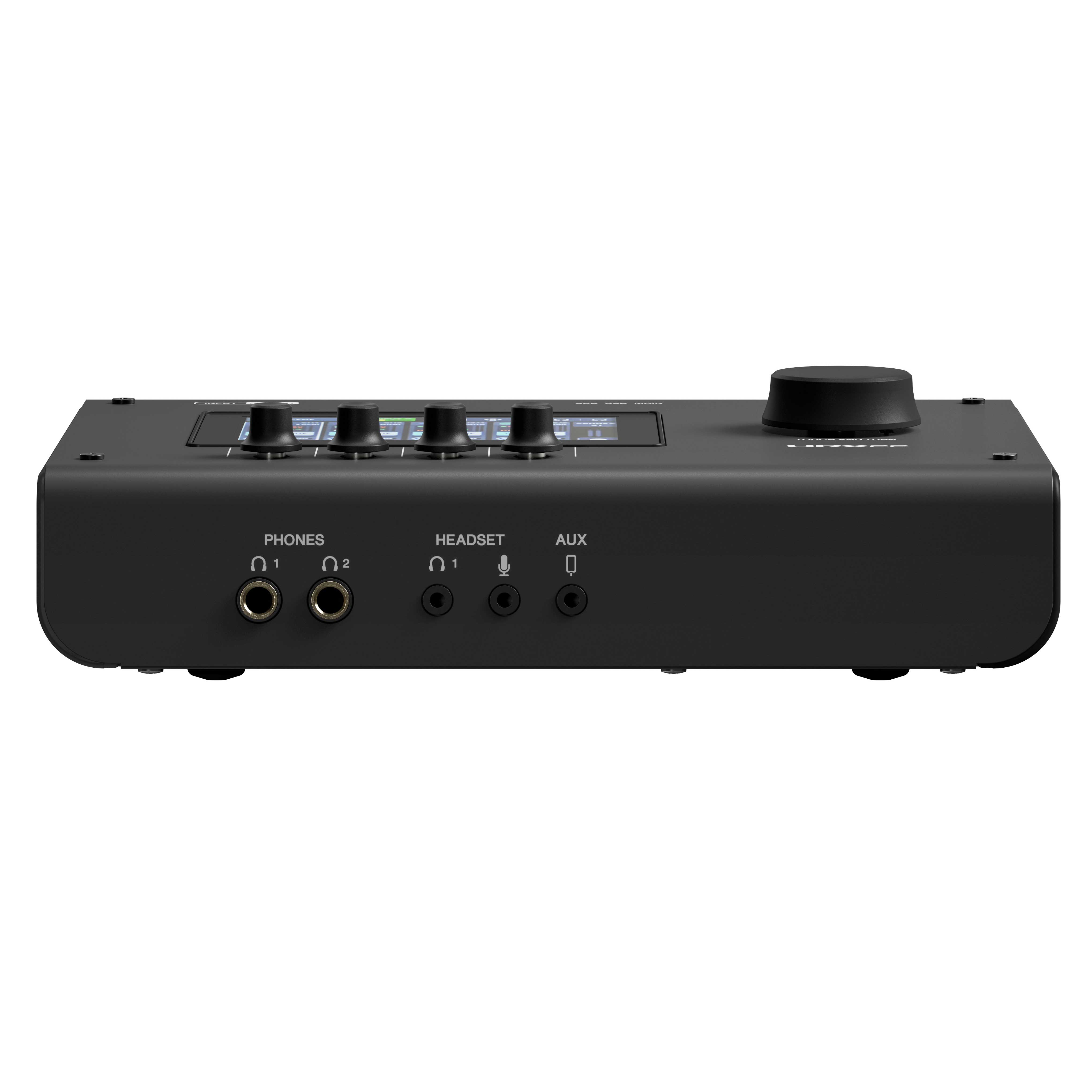

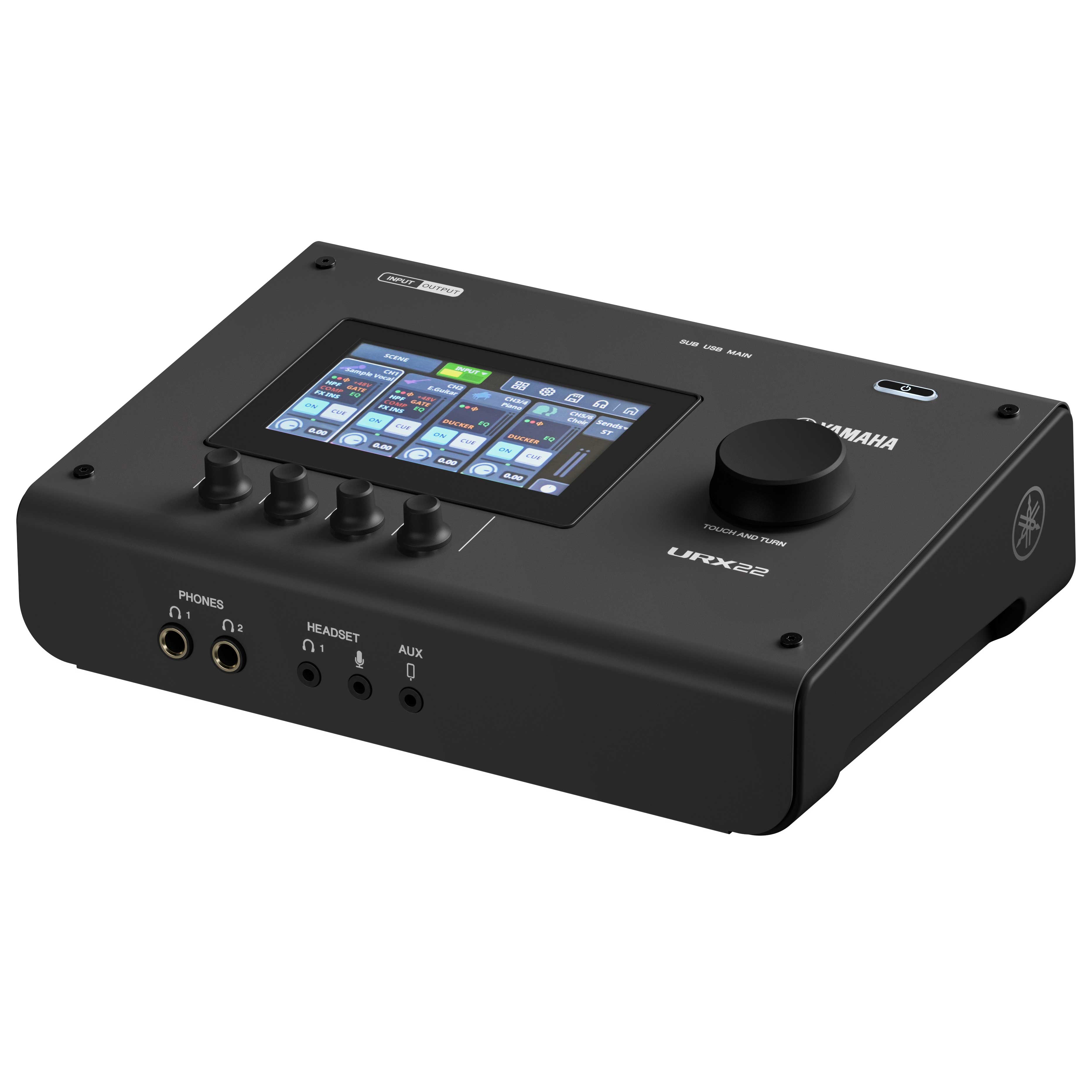

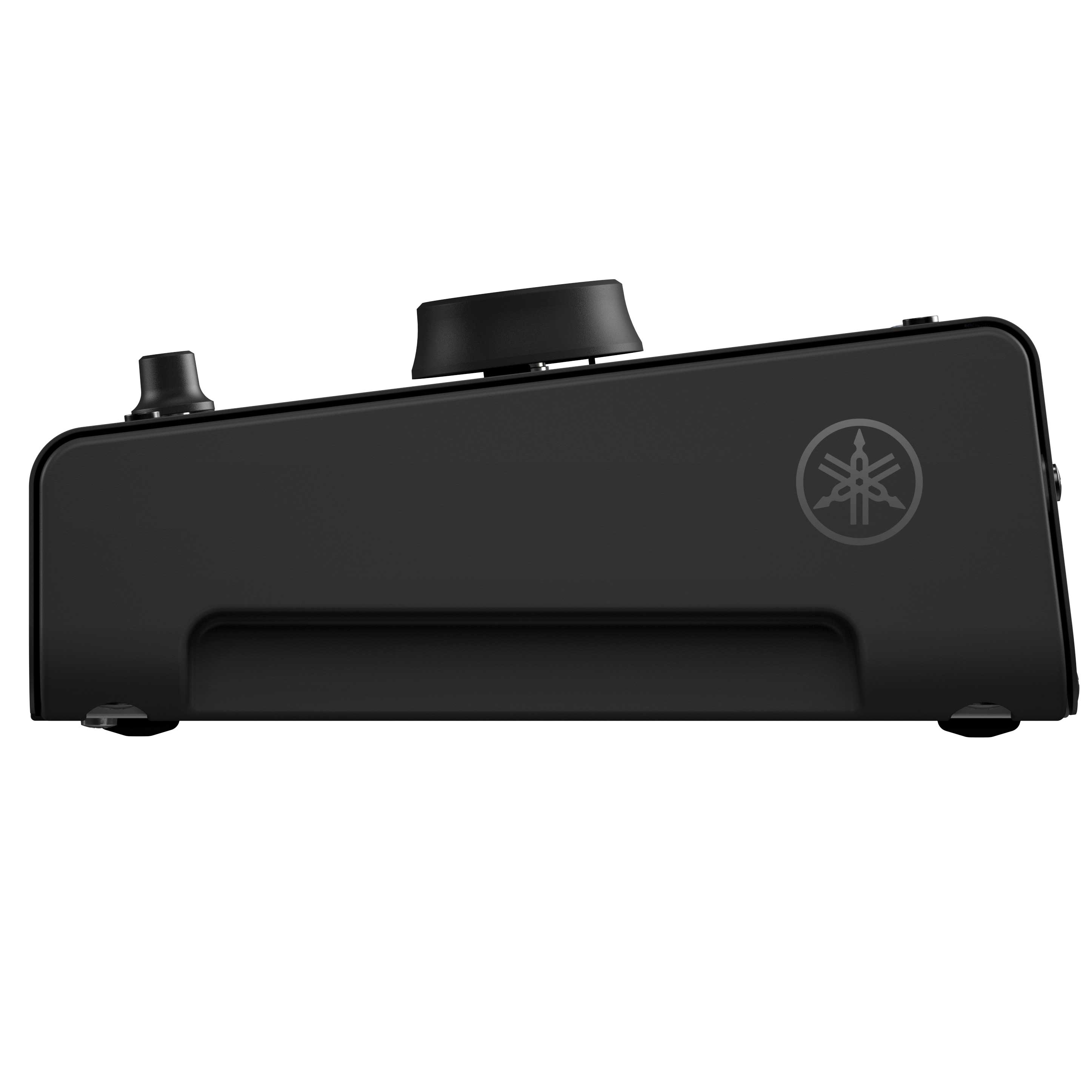

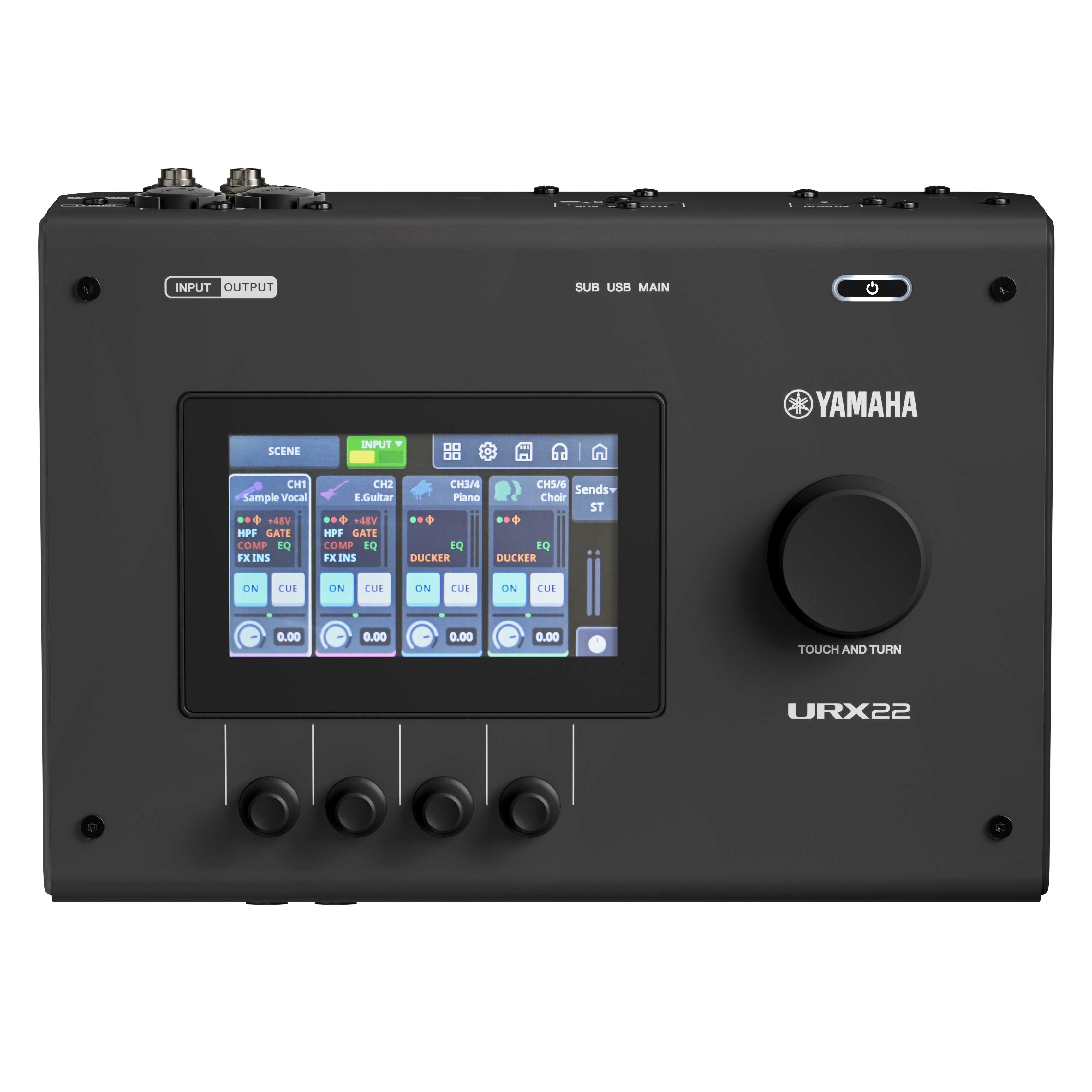

Yamaha URX22 Black Audio Interface
New Arrival
![Yamaha URX22 Black Audio Interface]( "Yamaha URX22 Black Audio Interface")
![Yamaha URX22 Black Audio Interface]( "Yamaha URX22 Black Audio Interface")
![Yamaha URX22 Black Audio Interface]( "Yamaha URX22 Black Audio Interface")
![Yamaha URX22 Black Audio Interface]( "Yamaha URX22 Black Audio Interface")
![Yamaha URX22 Black Audio Interface]( "Yamaha URX22 Black Audio Interface")
Image & Video Gallery
£379.00
In Stock
3 AvailableOrder before 4PM for FREE Delivery Tomorrow
Includes 3-Year Warranty & 30-Day Exchange
Frequently Bought Together
Manufacturer's ID: VHY9620
You know the fundamentals, you've put in the hours, and your audio production game is getting to the level where you need that extra functionality, connectivity, and sound quality to make your recordings, streams, and productions truly match your creative vision?
The URX series digital interfaces mark a significant step up in quality and flexibility from entry level interfaces while retaining their greatest attributes; a compact, unobtrusive design, simple connectivity, and ease of operation. As all-in-one solutions, all three URX models come equipped with onboard DSP mixing tools and effects integrated into the LCD panel’sGUI, as well as a touch panel interface, carefully selected physical knobs, and support for compatible controllers, enabling a highly intuitive and speedy workflow.
Each URX model comes bundled with a comprehensive suite of music production software to support every stage of your workflow—from creation and audio management to system expansion. Backed by the rock-solid stability and reliability trusted by audio professionals worldwide, Yamaha and Steinberg provide the confidence you need to take on your next creative challenge.
Specification
| I/0 Connectors | |
| Analog Input | 2 Combo (1 Mic/Line/3.5 mm headsetmic, 1 Mic/Line/Hi-Z) + 1 AUX (3.5 mmphone) |
| Analog Output | 2 TRS |
| USB TO HOST | 2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit) |
| Phones | 2 TRS, 1 mini headset phones (100 mW+100 mW @40 Ohm)*The first TRS Phones port and the 3.5 mm mini port cannot be used simultaneously |
| Power | 2 (Type-C USB MAIN bus power or Type-C USB DC IN) |
| User Interface | 4.3-inch touch screen, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN" |
| Recording &Playback | |
| USB (MAIN) | 16-track recording, 16-track playback |
| USB (SUB) | 2-track recording, 2-trackplayback |
| Sampling frequency rate | 44.1 kHz - 192 kHz |
| Frequency response | +0.0/−0.2 dB (20 Hz – 20 kHz) |
| Dynamic range | [MIC/LINE/Hi-Z] 115 dB, [MAIN OUTPUT] 125 dB |
| Gain range | 78 dB |
| Power requirements | DC5 V/3.0 A |
| Power consumption | 15 W (Off mode power: 0.1 W) |
| Dimensions | |
| Width | 245 mm (9.6") |
| Height | 78 mm (3.1") |
| Depth | 182 mm (7.2") |
| Net weight | 1.9 kg (4.2 lb) |
| Included Accessories | Start Guide, Safety Guide,Steinberg Software License Card x2(Cubase AI + WaveLab Cast, SteinbergPlus), Basic FX Suite license card, USB 2.0 cable (Type-C to Type-C, 1.5 m) |
| Mixing Capacity | |
| Input Channels | 2 mono + 4 stereo + 2 FX |
| Mix Buses | 2 (stereo) |
| Stereo Buses | 1 |
| FX Buses | 2 |
| Cue Buses | 1 |
| On-boardprocessors | Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator),Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb) |
