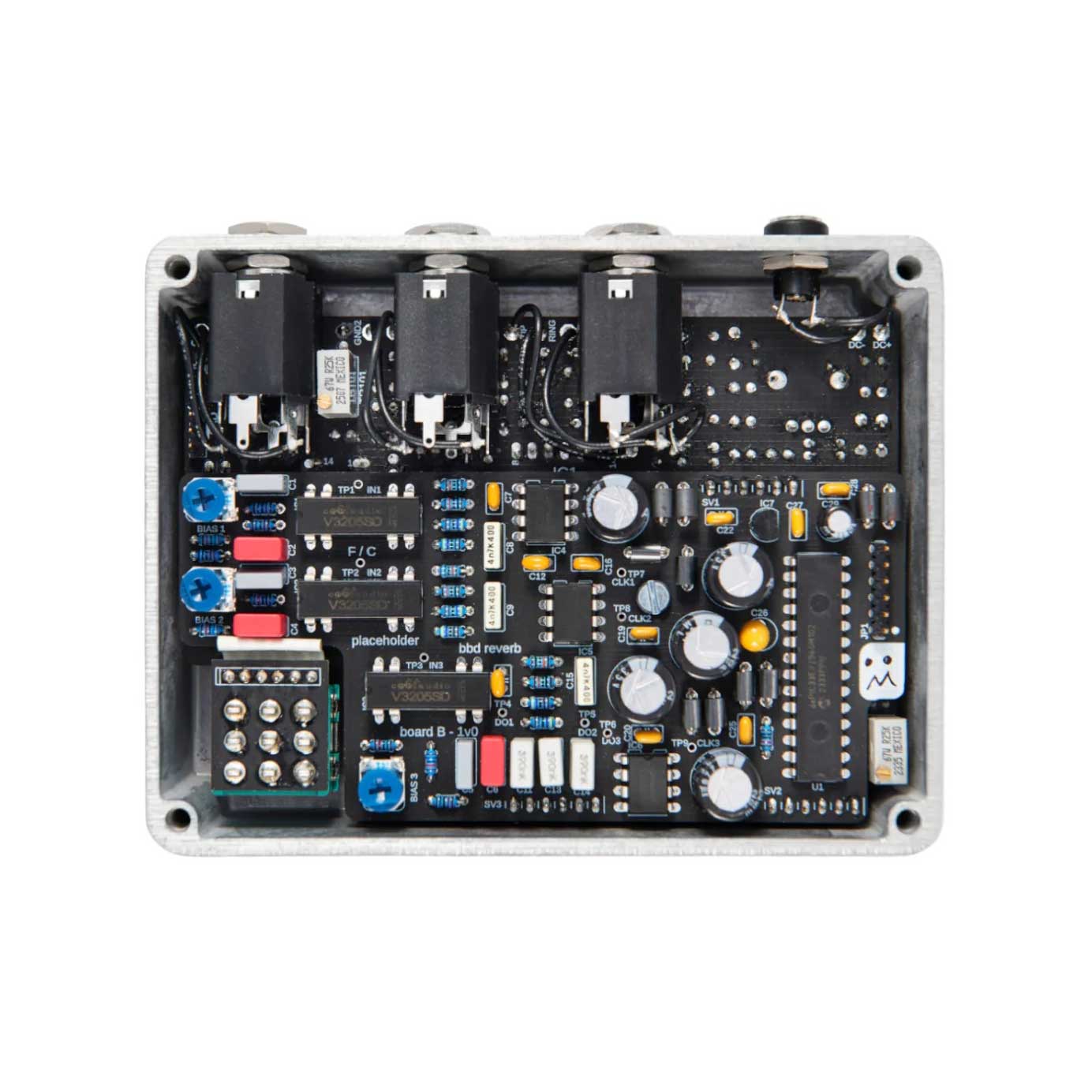

Fairfield Circuitry Placeholder Bucket Brigade Reverb

£459.00

Out of Stock

Please contact us for an estimated delivery time.

Includes 3-Year Warranty & 30-Day Exchange

Buy with confidence today & exchange online or in-store for the next 30 days. Learn More

Notify me when in stock

We'll share some similar product recommendations, and if the item does not come back in stock we will let you know.

Frequently Bought Together


Total Price: £

Placeholder is an analogue implementation of a digital reverb algorithm using BBDs, mixers, VCAs and simple zesty filters. The topology in question is called Householder, allowing quick echo density even with only three delay-lines.

There's no denying the power of algorithmic representation of our daily activities. But let's not forget that the complex-system underlying our lived experience, the background noise and uncertainty, is intrinsic.

Specification

  • delay range 12 - 160 milliseconds
  • input impedance 1MΩ (100kΩ @ -6dB)
  • output impedance 1kΩ
  • true bypass
  • power supply 9 - 9.6VDC
  • current draw ~80mA @ 9.6VDC
  • dimensions 4.7" x 3.8" x 1.9"
  • Made in Hull, Québec
