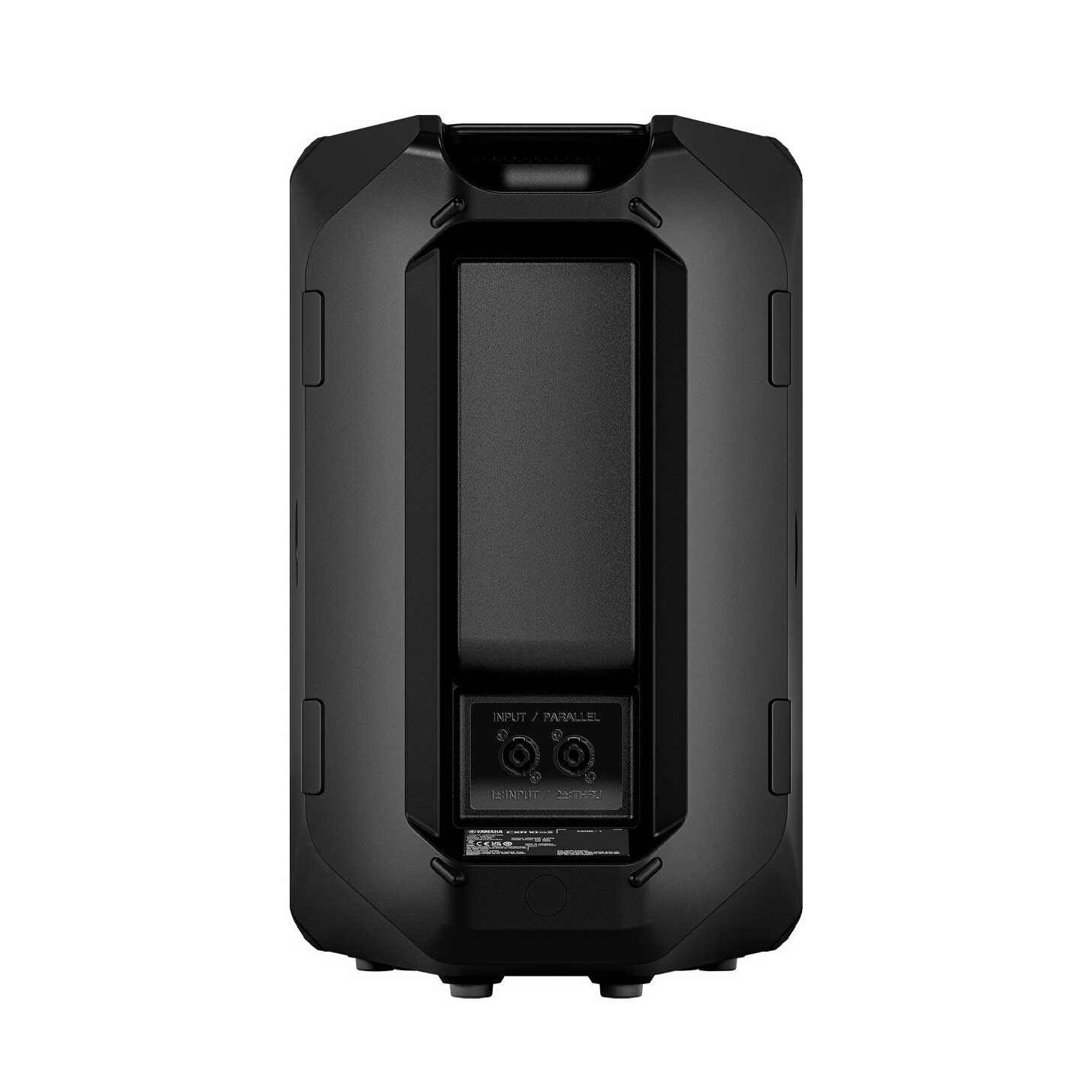

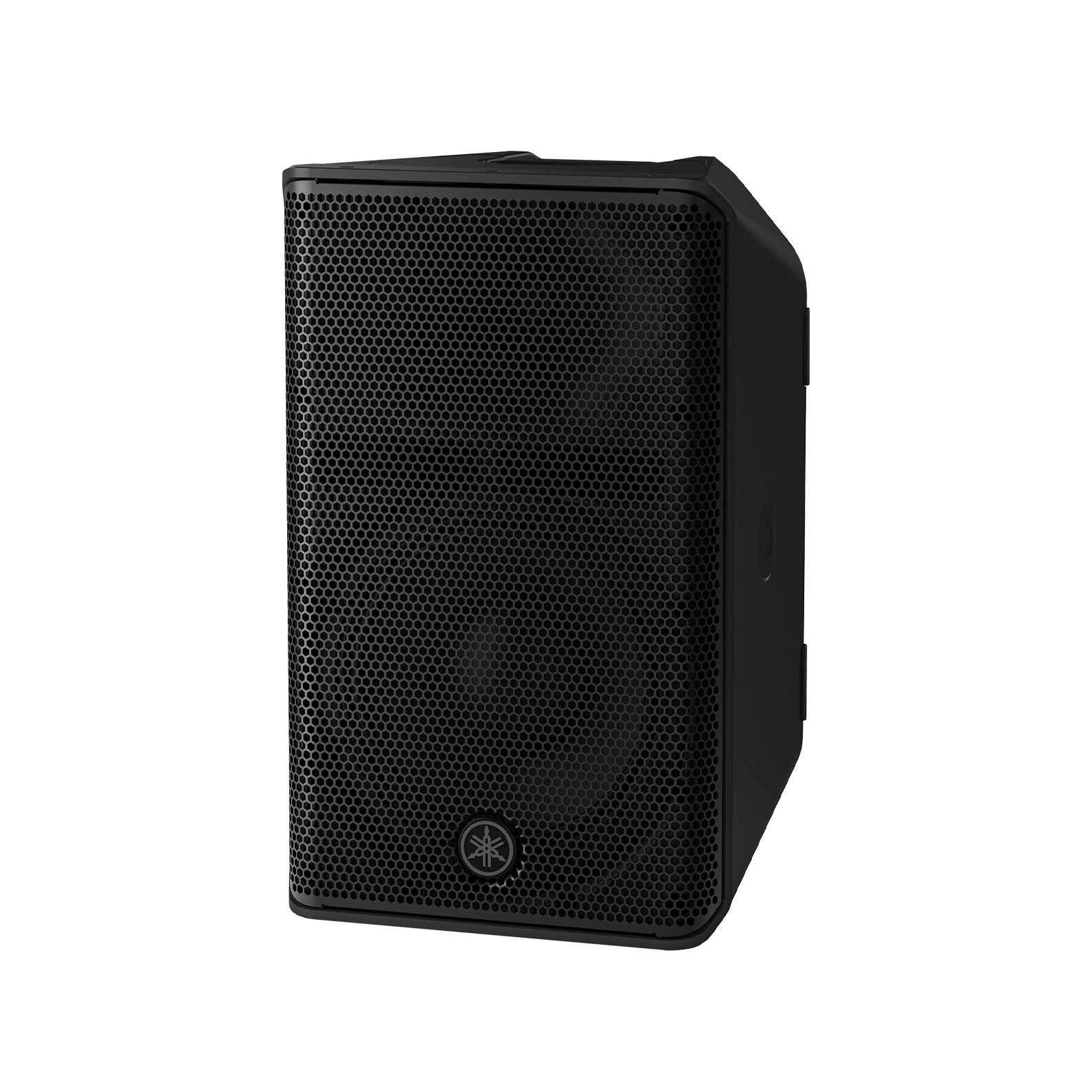

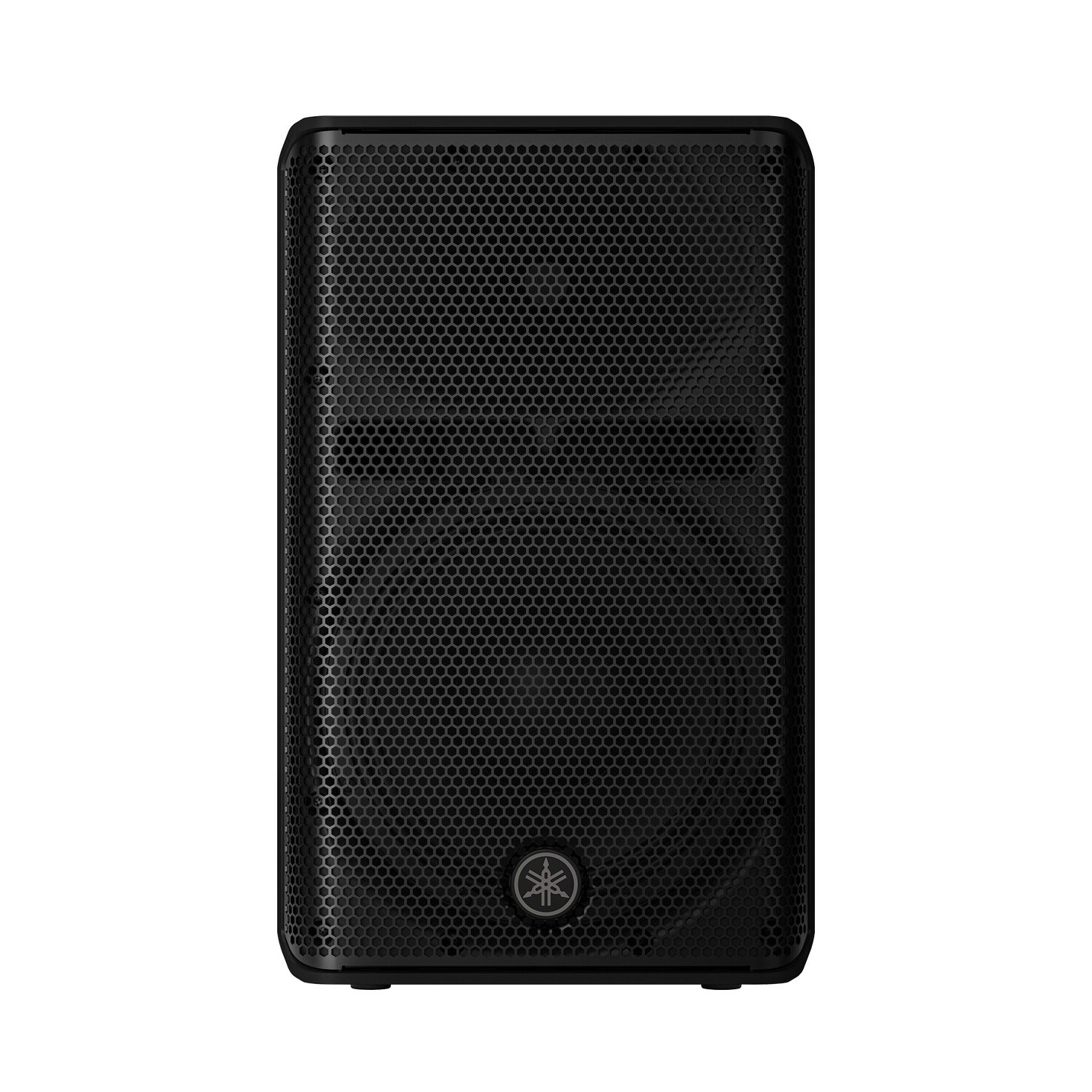

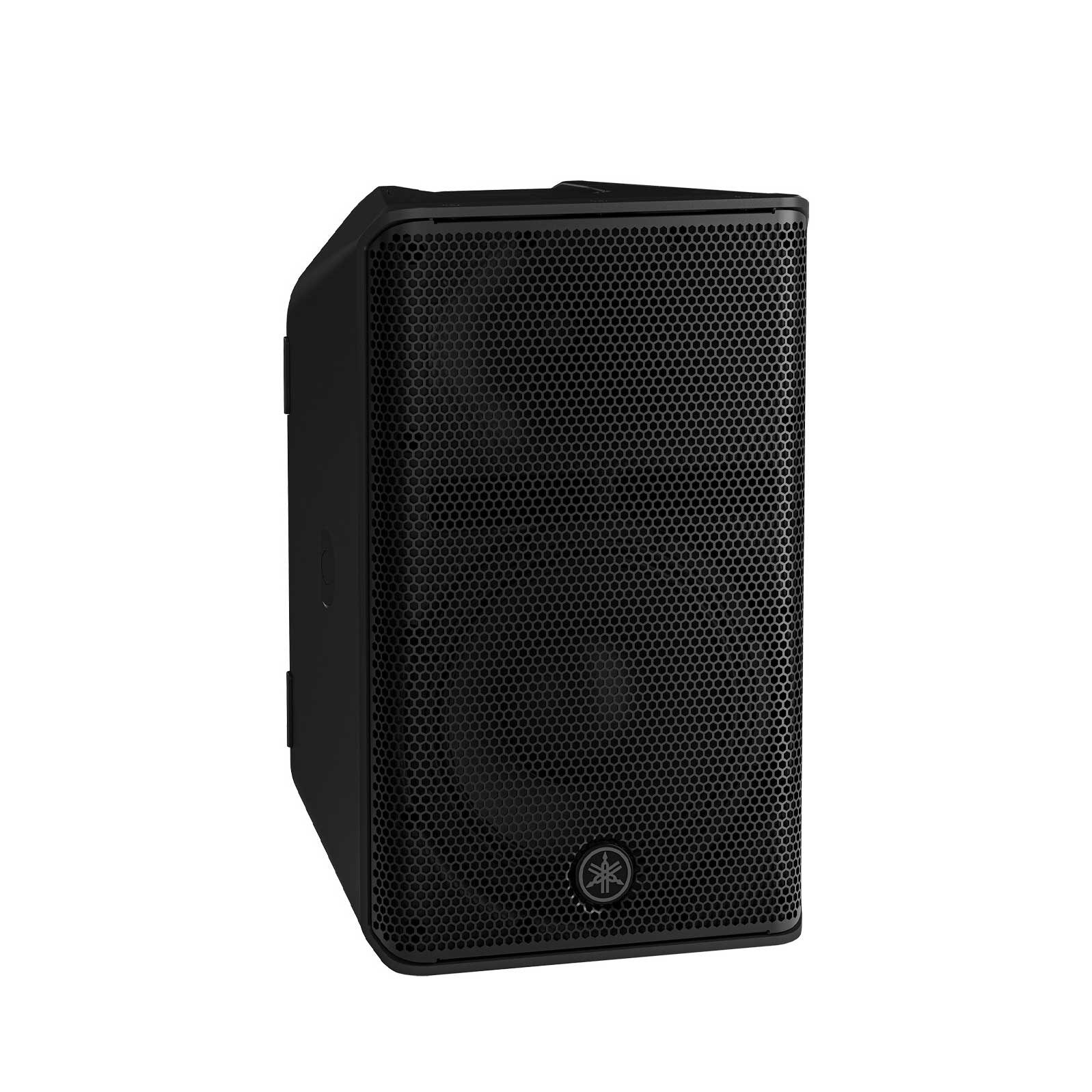

Yamaha CXR10 MK3 Loudspeaker
Image Gallery
£659.00
In Stock
2 AvailableOrder now for FREE Delivery on Thursday
Includes 3-Year Warranty & Extended Exchange
Frequently Bought Together
Manufacturer's ID: VHZ9660
The CXR10 mk3 is a 2-way loudspeaker and the most compact model of the series, capable of exceptional clarity, precision, and powerful sound output. Thanks to its compact enclosure, it can function as a versatile utility speaker suitable for a wide variety of sound reinforcement environments.
Specification
| Speaker Type | 2-way Speaker, Bass-reflex |
| Frequency Range (-10dB) | 54 Hz - 20 kHz |
| Coverage Area | H90ﾟ x V60ﾟ |
| Crossover | 2.0 kHz |
| Nominal Impedance | 8 Ω |
| SPL |
Sensitivity (1W; 1m on axis): 93 dB SPL Peak (Calculated): 123 dB SPL |
| Components |
LF: Diameter: 10" cone, Voice Coil: 2.5" |
| Power Rating |
NOISE: 275 W PGM: 550 W PEAK: 1100 W |
| I/O Connectors |
SpeakON NL4MP x 2 (parallel connected) |
| Cabinet Material |
Plastic (PP) |
| Finish |
Black |
| Handle |
Top x1 |
| Pole Socket |
Φ35 mm x 2 (Bottom, 0° or -7°) |
| Rigging |
Top x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR10A) |
| Floor Monitor Angle |
55 Degrees |
| Dimensions |
W: 310 mm (12.2") H: 502 mm (19.8") D: 310 mm (12.2") |
| Net Weight |
12.2 kg (26.9 lbs) |
