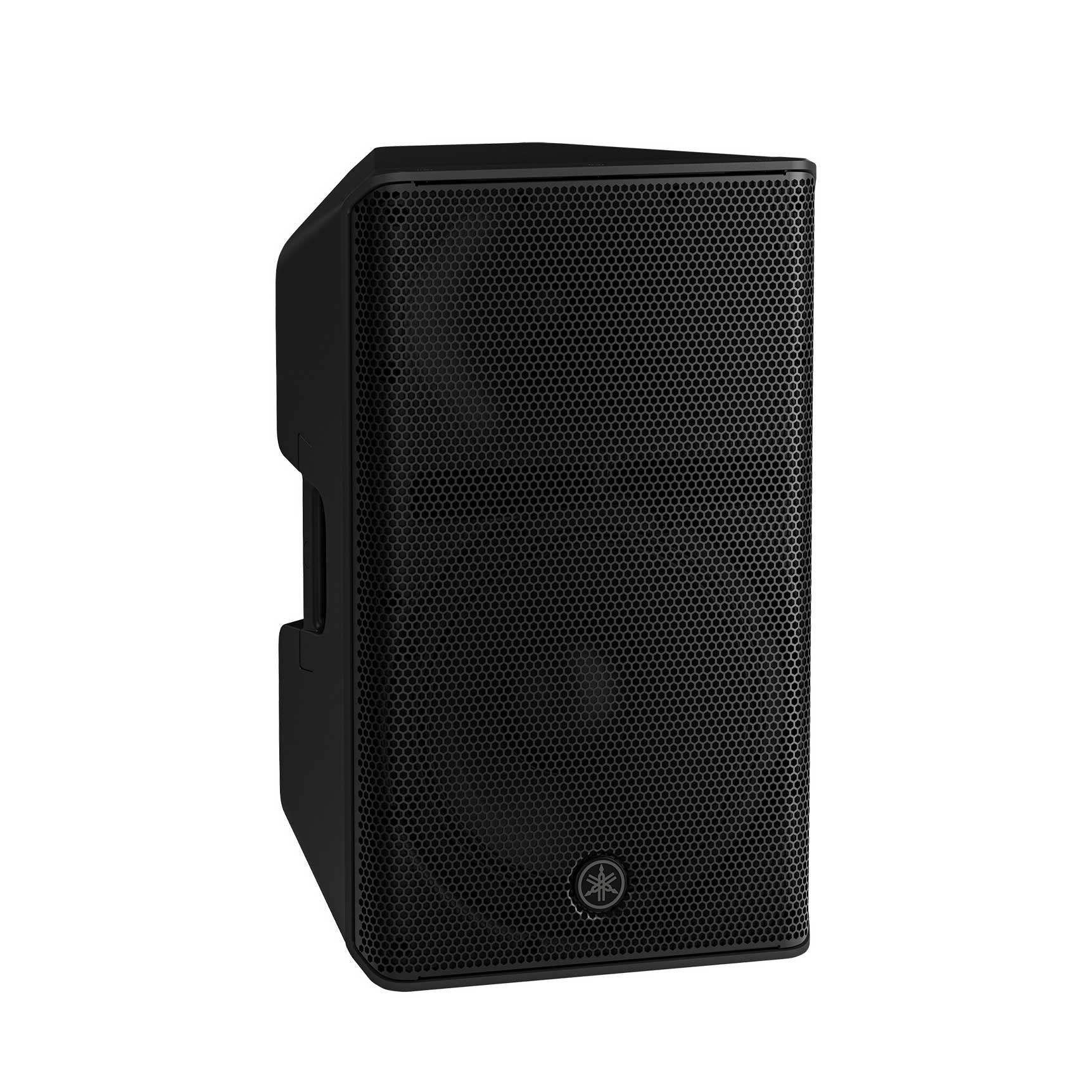

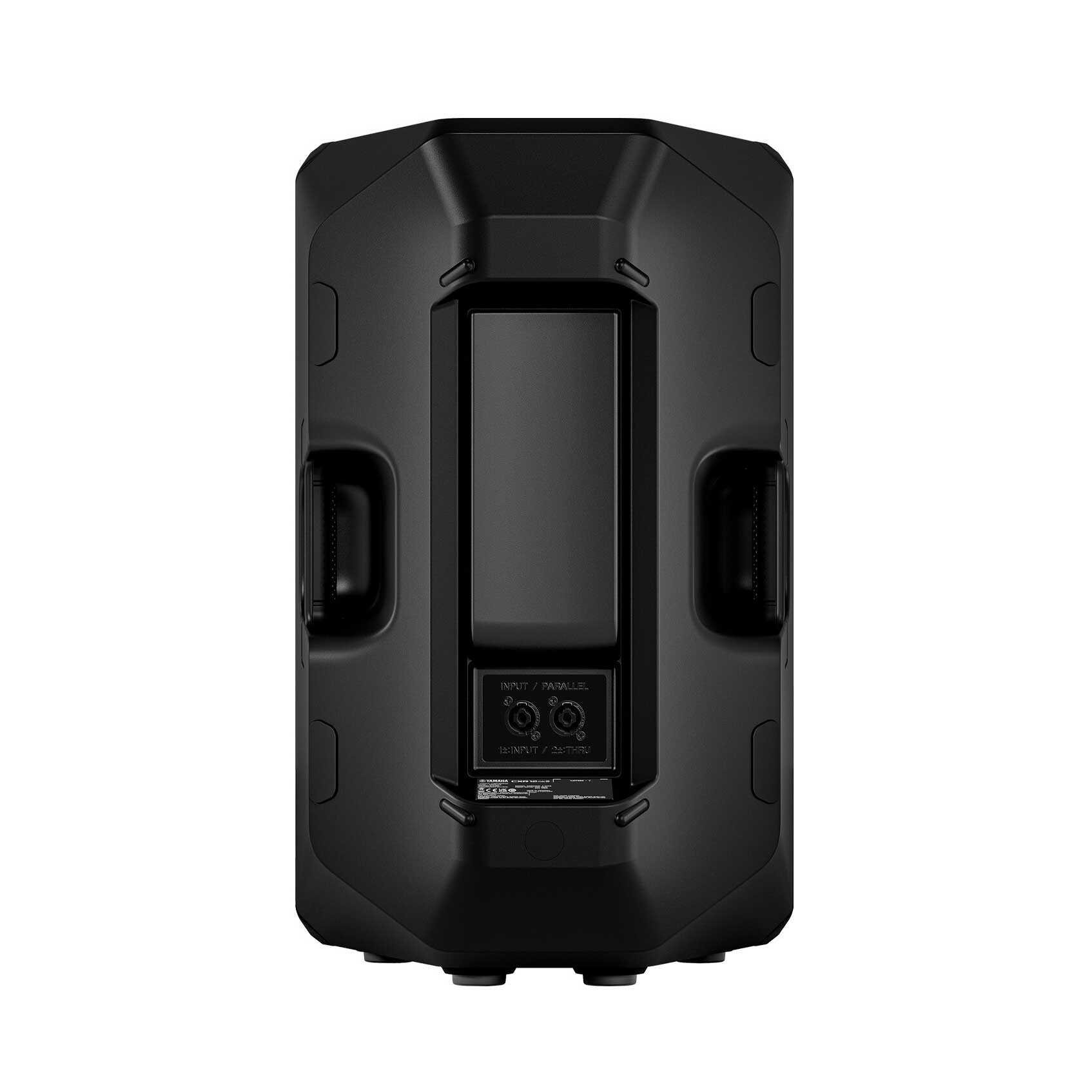

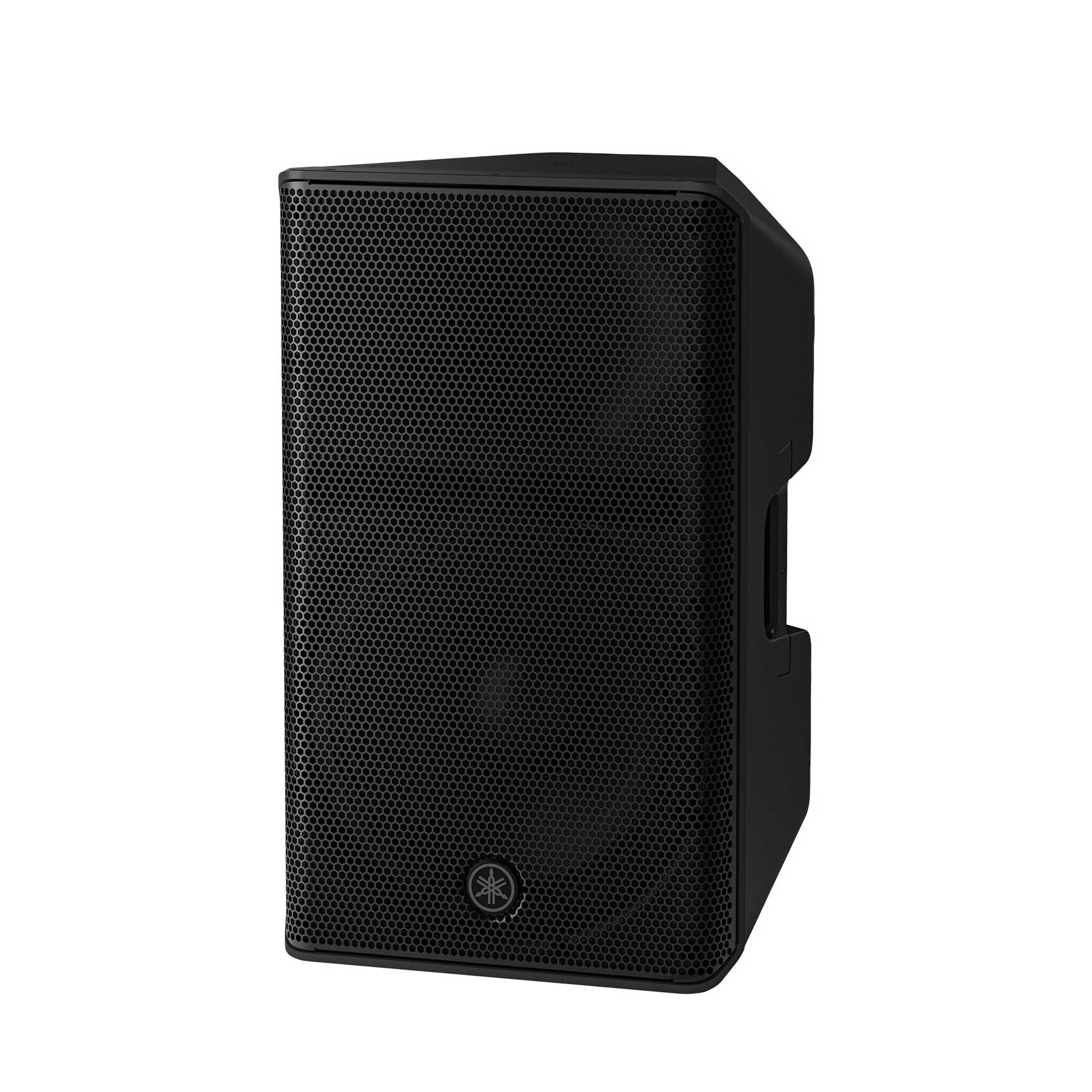

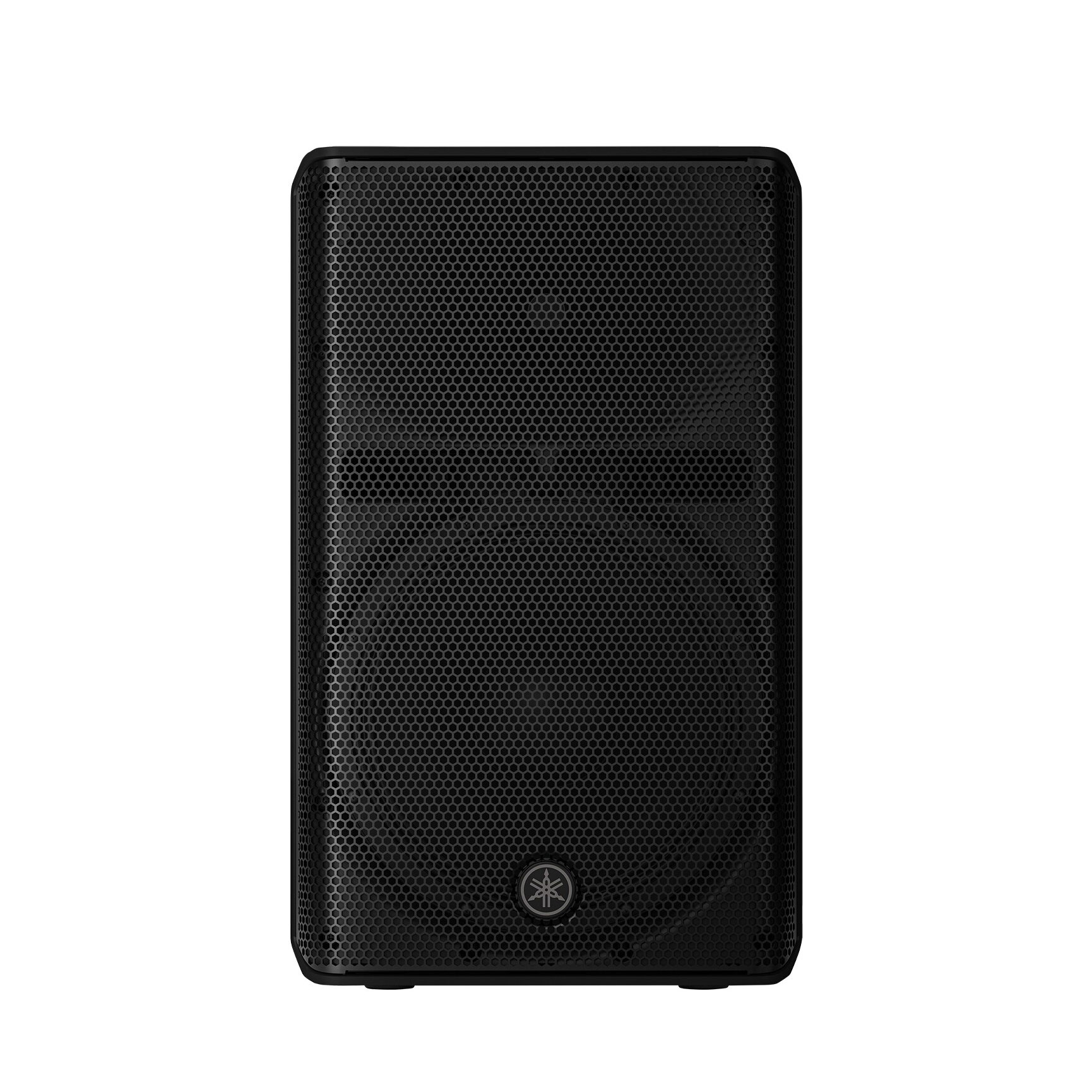

Yamaha CXR12 MK3 Loudspeaker
Image Gallery
RRP £729.00 Save £30.00
£699.00
In Stock
2 AvailableOrder before 12PM for FREE Delivery Tomorrow
Includes 3-Year Warranty & Extended Exchange
Frequently Bought Together
Manufacturer's ID: VHZ9650
The CXR12 mk3 is a 2-way loudspeaker that delivers a perfect balance of size and performance, offering exceptional clarity, precision, and powerful output capability. Ideal for front-of-house use, floor monitoring applications, or even stage side fills—the CXR12 mk3 is an excellent choice for a wide range of sound reinforcement needs.
Specification
| Speaker Type | 2-way Speaker, Bass-reflex |
| Frequency Range (-10dB) | 51 Hz - 20 kHz |
| Coverage Area | H90ﾟ x V60ﾟ |
| Crossover | 1.9 kHz |
| Nominal Impedance | 8 Ω |
| SPL |
Sensitivity (1W; 1m on axis): 94 dB SPL Peak (Calculated): 124 dB SPL |
| Components |
LF: Diameter: 12" cone, Voice Coil: 2.5" |
| Power Rating |
NOISE: 275 W PGM: 550 W PEAK: 1100 W |
| I/O Connectors |
SpeakON NL4MP x 2 (parallel connected) |
| Cabinet Material |
Plastic (PP) |
| Finish |
Black |
| Handle |
Side x 2 |
| Pole Socket |
Φ35 mm x 2 (Bottom, 0° or -7°) |
| Rigging |
Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR12A) |
| Floor Monitor Angle |
52 Degrees |
| Dimensions |
W: 366 mm (14.4") H: 600 mm (23.6") D: 350 mm (13.8") |
| Net Weight |
15.4 kg (34.0 lbs) |
