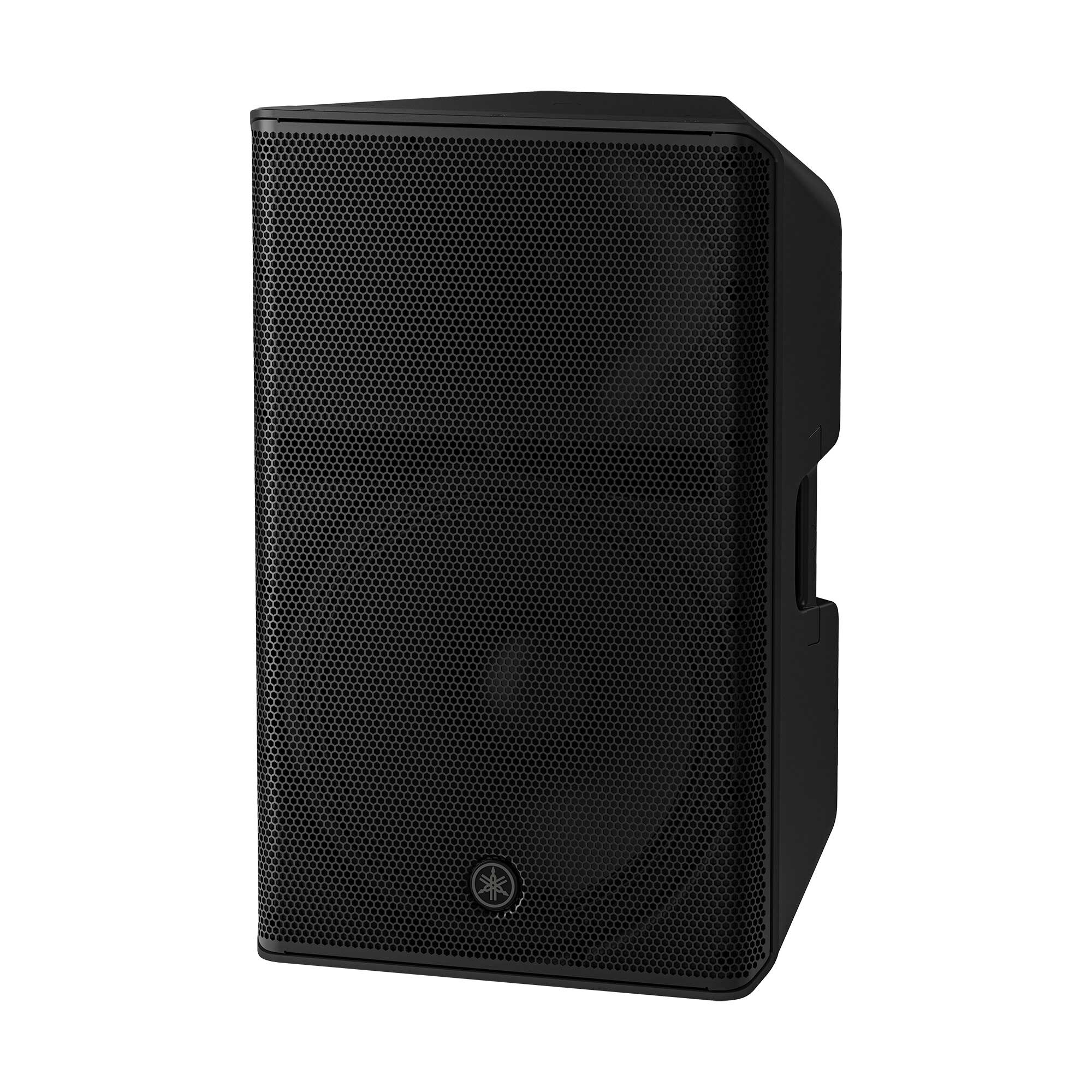

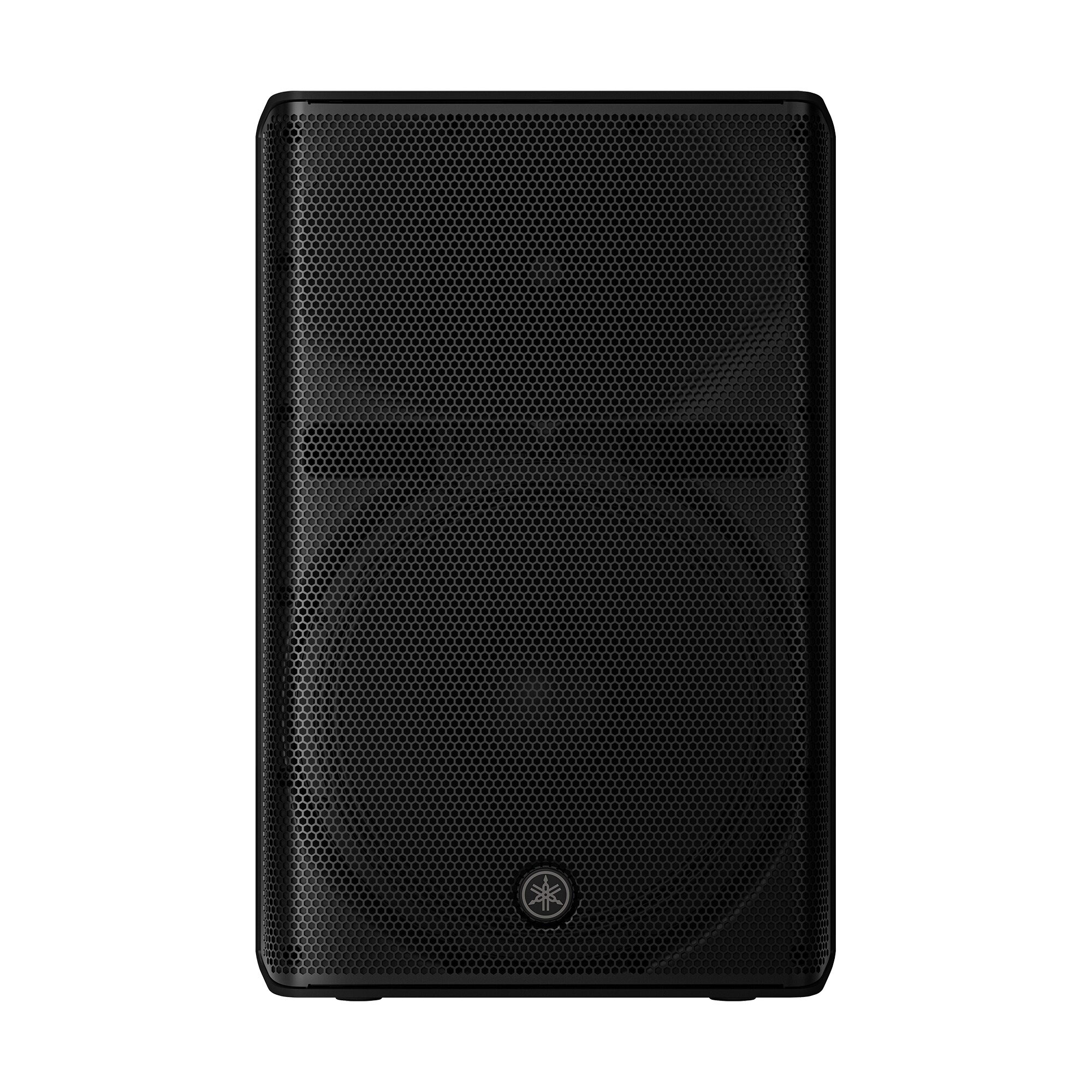

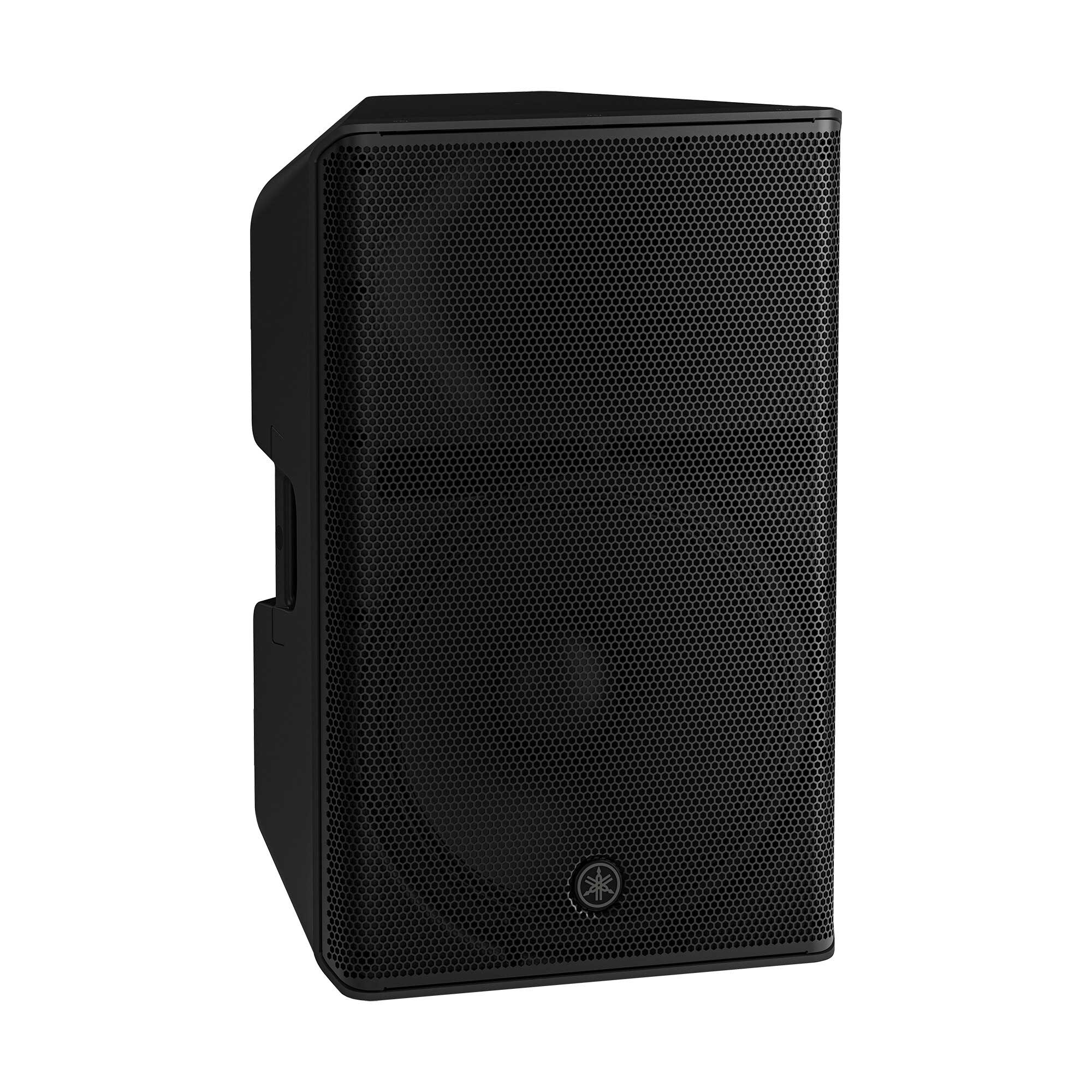

Yamaha CXR15 MK3 Loudspeaker
Image Gallery
RRP £829.00 Save £30.00
£799.00
In Stock
2 AvailableOrder now for FREE Delivery on Friday
Includes 3-Year Warranty & 30-Day Exchange
Frequently Bought Together
Manufacturer's ID: VHZ9640
CXR15 mk3 is a 2-way loudspeaker that delivers the lowest frequencies in its lineup with exceptional clarity, precision, and impressive output capability. This combination of deep low-end and substantial power makes it ideal as a main, front-of-house speaker for DJ events or live performances that demand a strong low-frequency presence.
Specification
| Speaker Type | 2-way Speaker, Bass-reflex |
| Frequency Range (-10dB) | 50 Hz - 20 kHz |
| Coverage Area | H90ﾟ x V60ﾟ |
| Crossover | 1.8 kHz |
| Nominal Impedance | 8 Ω |
| SPL |
Sensitivity (1W; 1m on axis): 95 dB SPL *2 Peak (Calculated): 126 dB SPL *2 |
| Components |
LF: Diameter: 15" cone, Voice Coil: 3" |
| Power Rating |
NOISE: 300 W PGM: 600 W PEAK: 1200 W |

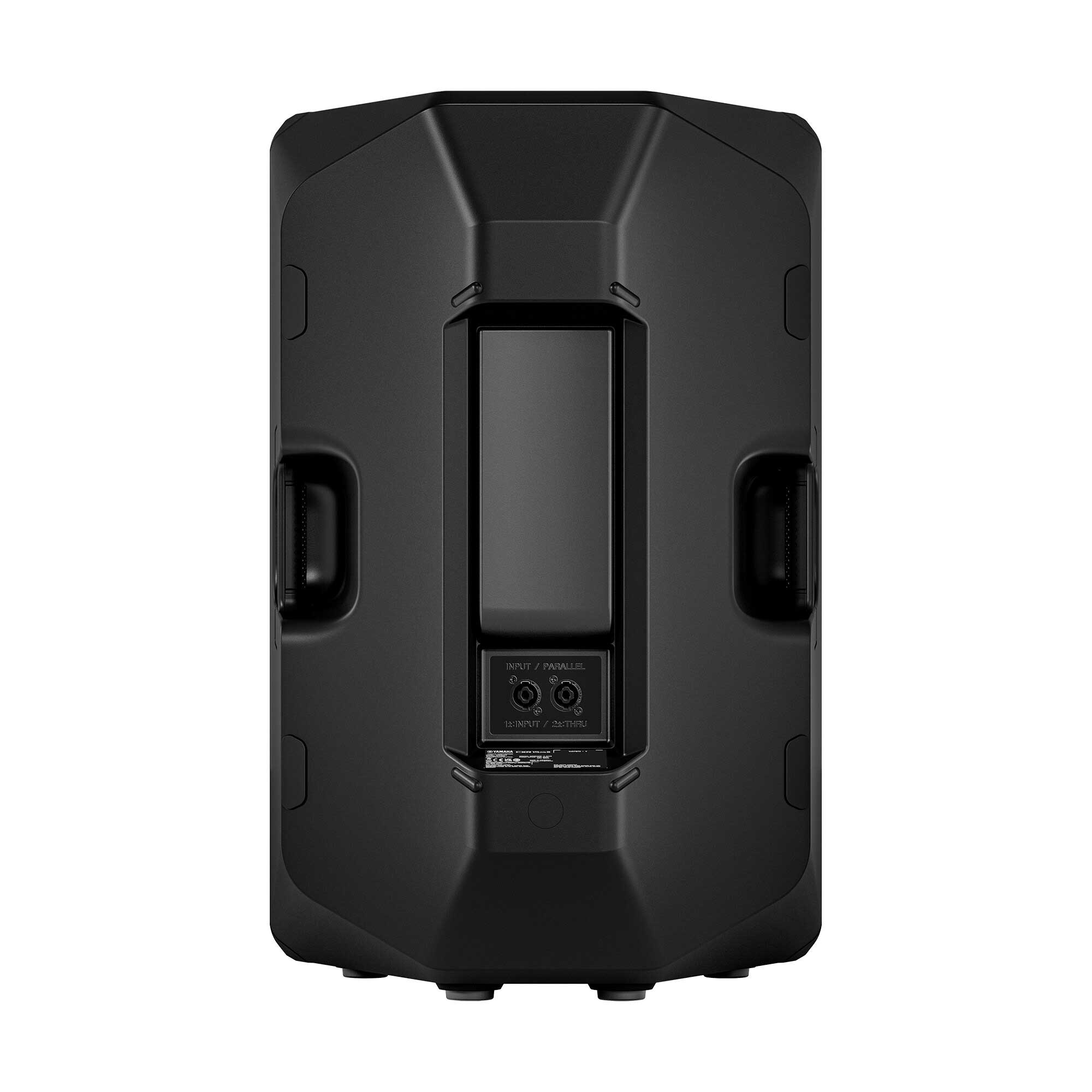

| I/O Connectors |
SpeakON NL4MP x 2 (parallel connected) |
| Cabinet Material |
Plastic (PP) |
| Finish |
Black |
| Handle |
Side x 2 |
| Pole Socket |
Φ35 mm x 2 (Bottom, 0° or -7°) |
| Rigging |
Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXR15A) |
| Floor Monitor Angle |
52 Degrees |
| Dimensions |
W: 447 mm (17.6") H: 699 mm (27.5") D: 380 mm (15.0") |
| Net Weight |
19.0 kg (41.9 lbs) |
