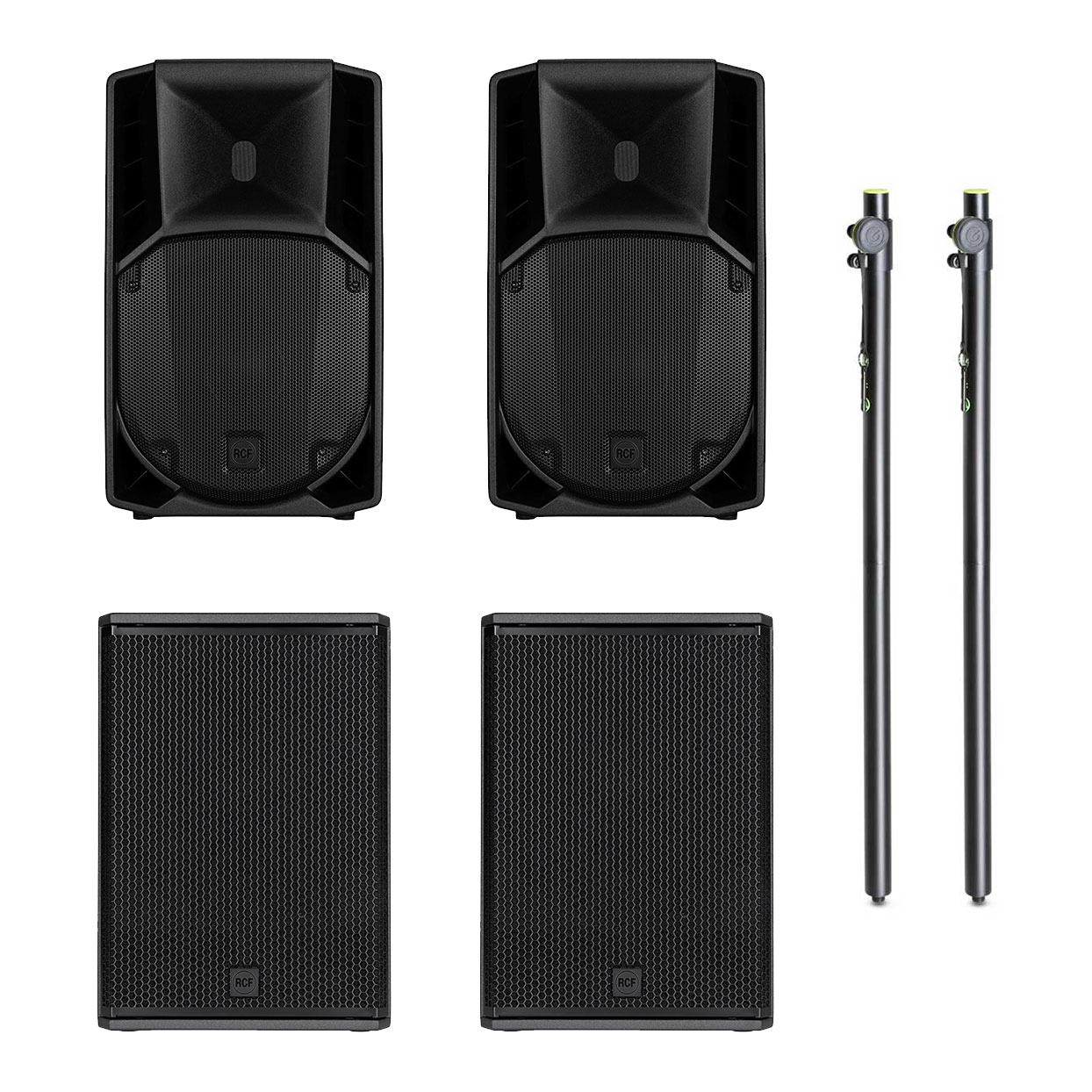

RCF ART 712-A MK5 Digital Active Speakers with Sub 15AS Bundle

ART 712-A MK5 Digital Active Speaker System (Pair)

ART 712-A MK5 is a unique product in its category. The 1.75" compression driver offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Features

• 129 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 60°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 1,75" Compression Driver
• 12" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Superior Transducers

Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components.

High Frequencies

The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer.

Low Frequencies

Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels. Only the best woofer design can fit ART 7.

Experience The Depths of Sound

XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

Your Ideal Stage Partner

The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.

New perspective on linearity

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Bring ART With You

The sturdy, ergonomic cabinet is easy to carry, thanks to either the handle at the top or the practical handles on both sides. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is shaped to also be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

Frequency Response	50 Hz - 20000 Hz
Max SPL @ 1m	129 dB
Horizontal coverage angle	90°
Vertical coverage angle	60°
Compression Driver	1 x 1.0'', 1.75'' v.c
Woofer	1 x 12'', 2.5'' v.c
Input signal	bal/unbal
Input connectors	XLR, Jack
Output connectors	XLR
Input sensitivity	-2 dBu/+4 dBu
Mic. Input Sensitivity	-32 dBu
Crossover Frequencies	1600 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Volume, Boost, MIC/Line
Total Power	1400 W Peak
High frequencies	400 W Peak
Low frequencies	1000 W Peak
Cooling	Convection
Connections	VDE
Safety agency	CE compliant
Cabinet/Case Material	PP Composite
Hardware	2 x M10
Handles	1 on top, 1 each side
Pole mount/Cap	35 mm insert
Grille	Steel
Height	637 mm / 25.08 inches
Width	387 mm / 15.24 inches
Depth	363 mm / 14.29 inches
Weight	17.8 kg / 39.24 lbs

SUB 15-AS 15 Inch Bass Reflex Active Subwoofer (Pair)

The SUB 15-AS is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer and a powerful 2200 Watts Class-D amplifier that delivers sound pressure levels up to 133 dB with exceptional headroom. Designed as the ideal complement for 8", 10" and 12" loudspeakers, it includes Bass Motion Control algorithm for extended bass response at any volume. The connection panel features mono/stereo Combo inputs, an XLR stereo link, and XLR crossover outputs. Rear panel controls include volume, polarity, and low-pass frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 15-AS is perfect for small to mid-sized venues and portable applications.

Legendary subwoofers

RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, internal delay control, long-term reliability, cardioid configuration options, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.

High-Power Transducer

Lightweight and powerful, RCF woofers are a reference in high performance. RCF Precision Transducers engineers have developed new specific magnet sizes and molds to optimize magnetic flux while maintaining a low weight. The 15", 3.0" voice coil magnetic circuit topology is capable of delivering the highest, balanced level of performance in three specific areas: maintenance of a consistent, high integrity magnetic flux gap, exceptionally low distortion and efficiently integrating the magnetic circuit in a minimum weight design. The T-pole design optimization generates the minimum amount of flux modulation in the magnetic assembly during typical voice coil movement within the gap.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.

The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

The right drive to the beat

With 2,200W power, our Class-D amplifier is able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. So energy-efficient that there's no need for a cooling fan. The amplifier is attached to a solid aluminum heatsink at the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high efficiency with minimum weight.

Tour-Ready Workhorse

The RCF cabinets are made of high-quality multi-ply hardwood coated with a black polyurea finish. The subs are stackable and light-weight, for easy set-up and tear down, thanks to the ergonomic handles. A pole receptacle on top and side allows the use of the box in various configurations. The powder-coated front grille integrates a special transparent-to-sound foam backing on the inside to further protect the transducers from dust.

Frequency Response	35 Hz - 400 Hz
Max SPL @ 1m	133 dB
Woofer	1 x 15'', 3.0'' v.c
Input signal	bal/unbal
Input connectors	Combo XLR/Jack
Output connectors	XLR
Input sensitivity	-2 dBu/+4 dBu
Protections	Thermal
Limiter	Soft Limiter
Controls	Volume, Polarity, Low pass filter frequency
Total Power	2200 W Peak
Cooling	Convection
Connections	VDE
Safety agency	CE compliant
Cabinet/Case Material	Baltic birch plywood
Handles	1 handle per side
Pole mount/Cap	M20 thread
Grille	Steel with clothing
Height	590 mm / 23.23 inches
Width	420 mm / 16.54 inches
Depth	590 mm / 23.23 inches
Weight	30 kg / 66.14 lbs

SP 2332 TPB Two Part Speaker Pole (Pair)

The SP 2332 TPB is a 35 mm pole to mount satellite speakers on subwoofers. The heavy duty construction of powder coated steel is height adjustable from 105 to 140 cm. The SP 2332 TPB features an M20 bottom end and steel collar with safety pin to securely lock the extension pole in place. The base tube is a two-piece assembly that can be unscrewed to result in an amazingly short transport length of 54 cm only.

Product type	Stands and Tripods
Type	Speaker Stands
Tubing material	Steel
Tubing colour	Black
Tubing surface	Powder coated
Min height	1050 mm
Max height	1400 mm
Transport length	540 mm
Height adjustment	Clamp with safety pin
Material of height adjustment	Steel
Connector 1	M20
Connector 2	35 mm
Max. load	40 kg
Interchangeable rings	1 x 30 mm
Black ring pack included	Yes
Weight	2,2 kg

Manufacturer's ID: 13000823
