Palmer PAN 01 Passive DI Box

£44.99 In Stock

Delivery on Sunday

Click and Collect available

Palmer PAN 01 Passive DI Box

£44.99

In Stock

Order now for Delivery on Sunday

Includes 30-Day Exchange & 3-Year Warranty

Buy with confidence: We're the 1st, and only, UK guitar retailer to offer a 3-year warranty & 30-day exchange as standard.

Delivery on Sunday

With 1 hour Delivery slot

Click & Collect

Live Stock levels from all our stores.

Store
Availability
Edinburgh
In Stock, Collect Tomorrow
Glasgow
Collect on Wednesday
Newcastle
Collect on Wednesday
Birmingham
Collect on Wednesday
Epsom
Collect on Wednesday
Camden
Collect on Wednesday

Frequently Bought Together


Total Price: £

Manufacturer's ID: PAN 01

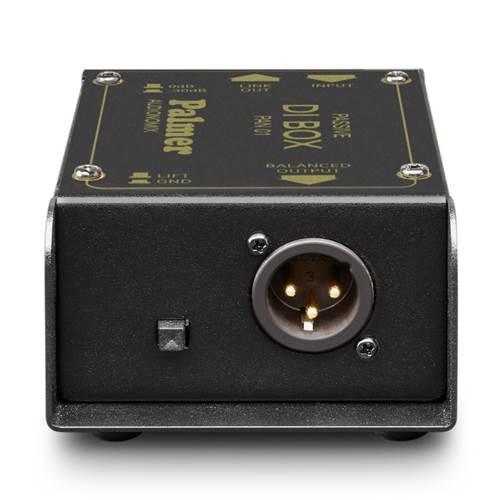

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

Specification

Specifications
  • Product type: DI box
  • Type: passive
  • Channels: 1
  • Inputs: 1
  • Input connectors: 6.3 mm Jack
  • Max. input level: + 54 dBu
  • Input impedance: ((at) 60 Hz) 60k Ohm(s)
  • Input pad: 0 / -30 dB
  • Outputs: 1
  • THRU outputs/channel: 1
  • Output connectors: XLR, 6.3 mm Jack
  • Max. output level: + 4 dBu
  • Output impedance: 600 Ohm(s)
  • Frequency response: 20 - 20000 Hz
  • Transformer balanced: yes
  • Ratio: 10 : 1
  • Controls: ground lift, attenuator
  • Cabinet material: sheet steel
  • Cabinet surface: powder coated
  • Width: 110 mm
  • Depth: 73 mm
  • Height: 42 mm
  • Weight: 0.34 kg

Customer reviews

Overall Rating 5/5 (1 reviews)

Best passive box around at a great price.

Christopher G. - 21/9/2020
