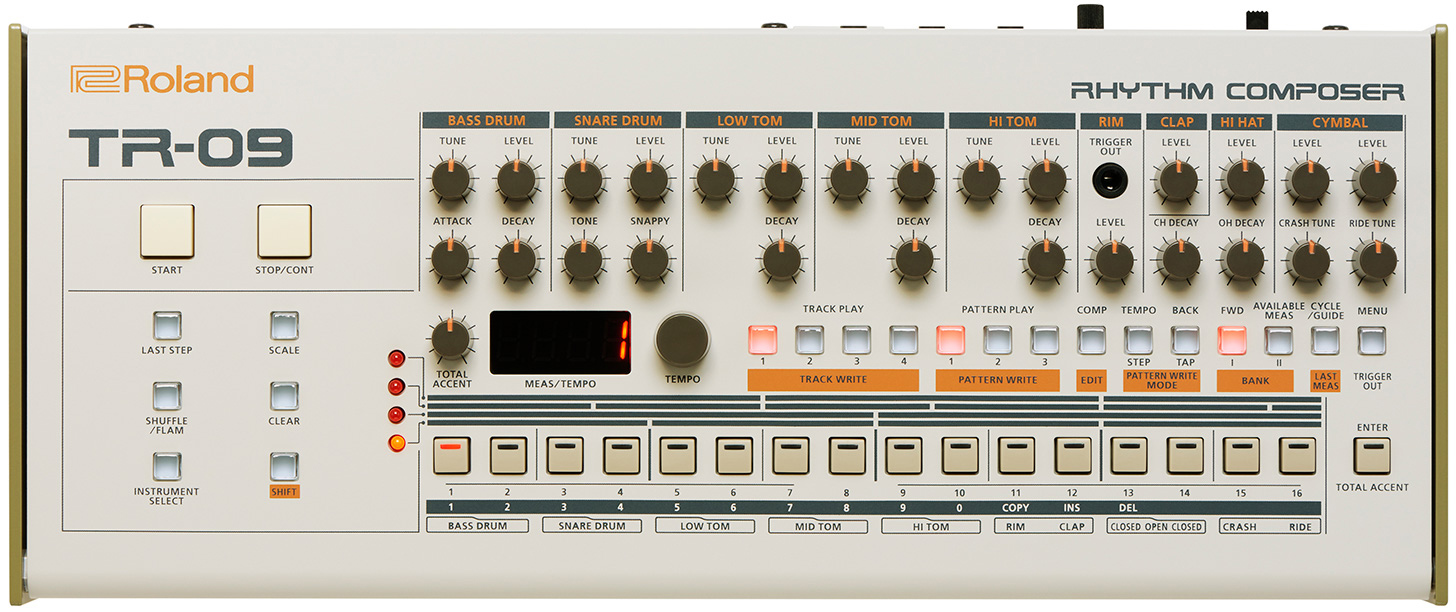

Roland TR-09 Boutique Rhythm Composer
In Stock: 5 Available
Order before 3PM for FREE Delivery Tomorrow
Based on the second most famous electronic drum sound ever (it seems that nothing will defeat the TR-808), the Roland TR-09 Boutique module proudly displays it's heritage both soni... read more
Looking to Spread the Cost?
Buy Now, Pay 2019
- No Deposit
- Pay nothing up to 12 months
- Apply in minutes
Frequently Bought Together
Manufacturer's ID: TR-09
What we say:
Based on the second most famous electronic drum sound ever (it seems that nothing will defeat the TR-808), the Roland TR-09 Boutique module proudly displays it's heritage both sonically and visually in a small box that deserves the attention of every producer in the planet.
The TR-09, styled with the same '70s sci-fi' looks and with the same front panel as the original TR-909, uses ACB (Analogue Circuit Behaviour) technology to recreate (not merely sample) the sound, character and sonic identity of the original, immortal 909 sound. Use the same classic Step+Tap modes as on the original to write in riffs and patterns and send them out to 4 separate outputs via USB.
Power your TR-09 via USB as well or run it on batteries as part of a mobile set up. If fact, the TR-09 has it's own inbuilt mini-speaker so you can enjoy instant results and listen back to your creations as soon as you've programmed them! Everybody needs a good set of 909 sounds: Roland have given us the power to enjoy this uber-classic sound in a sturdy box that looks the part and allows for a variety of connecting options. Perfect.
Featuring the same front-panel layout and user interface of the original, the TR-09 is powered by Roland’s ACB technology, delivering the speaker-pummelling power of the TR-909 in a super-affordable and portable format. Offering precise control over an array of drum parameters and the ability to keep playing when switching modes, the TR-09 may be compact, but it still has the power to move people. Studio sessions are well catered for too, with four separate outputs via USB audio, external instrument control via a trigger output, and USB MIDI.
- Ultra-compact recreation of the iconic TR-909 drum machine
- Retains the sound, character, and user interface of the original TR-909
- Hands-on control over many parameters, including tune, level, decay, etc.
- Programmable via classic Step and Tap write modes
- Continue playing beats even while switching between write and play modes
- Four separate outputs via USB audio
- Trigger output for controlling external instruments equipped with trigger input
- High-quality construction with metal front panel
- Highly portable for mobile music making
- Battery-operated (4 x AA) or USB powered
- 24-bit/96 kHz stereo IN/OUT USB audio interface
- Built-in powered mini-speaker for instant enjoyment
- Compatible with optional K-25m Keyboard Unit
909 Power via Roland’s ACB Technology
The original TR-909 blended analog kick, snare, and tom drums with six-bit samples for the hi-hats and cymbals. This hybrid approach to sound generation meant that the 909 sounded like no other drum machine. Accurately recreating such an influential sound while retaining the ability to edit and tweak the various parameters is only possible via Roland’s ACB (Analog Circuit Behavior) technology, which is also found in the popular AIRA series.
Classic TR-REC Sequencer with Enhanced Functions
Dedicated TR-909 users will recognise the classic TR-REC style of programming found in the TR-09, with a choice of Step or Tap write modes. You can even change modes while the pattern continues playing, something not possible on the original. The TR-09 sequencer has 16 steps, and each has 16 sub-steps so you can fine-tune your performances. And just like the original TR-909, the Shuffle/Flam parameter can be selected using the buttons—but if you need greater control, simply use the display and rotary encoder to perfect your pattern.
Connect with External Gear
The TR-09 is designed to easily connect with other gear. The main stereo mini-jack output can also be reconfigured to send the selected instrument to the right channel, with the other instruments output to the left. A mix input routes external audio through the main outputs, while the trigger output lets the TR-09 drive vintage analog synths such as the SH-101 or JX-3P, or modern gear like the current SYSTEM-500 modular series. Sync and control other gear via standard MIDI ports or USB, and even send the audio of four individual drum parts via USB to continue working in your favorite DAW.
Battery or USB Bus Power
Some of the best music is made away from the studio, so the Roland Boutique series runs on 4 x AA batteries, ready for when inspiration strikes. Alternatively, you can power the TR-09 with USB bus power.
USB Audio Interface for Direct Recording to Your DAW
Via its USB port, the TR-09 also functions as a high-quality 24-bit/96 kHz audio interface, providing a simple and reliable way of recording directly to your DAW application. You can even send individual drums to separate channels, thanks to the TR-09’s four discrete outputs over USB. Saving your favorite settings and sequencer patterns is easy too via the USB data backup function.
- User Memory
Patterns: 96 (2 banks x 3 groups x 16 patterns)
Tracks: 8 (2 banks x 4 tracks)
16 steps with 16 sub steps
CLOSED/OPEN HI HAT
LAST STEP button
INSTRUMENT SELECT button
TOTAL ACCENT knob
TRACK 1--4 buttons
PATTERN 1--3 buttons
AVAILABLE MEAS button
Main keys 1--16 (16 step buttons)
BASS DRUM: TUNE, LEVEL, ATTACK, DECAY knobs
SNARE DRUM: TUNE, LEVEL, TONE, SNAPPY knobs
LOW/MID/HI TOM: TUNE, LEVEL, DECAY knobs
RIM/CLAP: LEVEL knob
HI HAT: LEVEL, CH DECAY, OH DECAY knob
CRASH CYMBAL: LEVEL, CRASH TUNE knob
RIDE CYMBAL: LEVEL, RIDE TUNE knob
7 segments, 4 characters (LED)
TRIGGER OUT jack: Mono miniature phone type
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: Micro-B type (Audio, MIDI)
- Power Supply
Rechargeable Ni-MH battery (AA, HR6) x 4
Alkaline battery (AA, LR6) x 4
USB bus power
- Current Draw
500 mA (USB bus power)
- Expected battery life under continuous use
Rechargeable Ni-MH battery: Approx. 6 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
308 (W) x 130 (D) x 51 (H) mm
12-1/8 (W) x 5-1/8 (D) x 2-1/16 (H) inches
- Weight (including batteries, excluding Boutique Dock)
2 lbs 3 oz
Boutique Dock: DK-01 (Ivory)
DK-01 Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4
