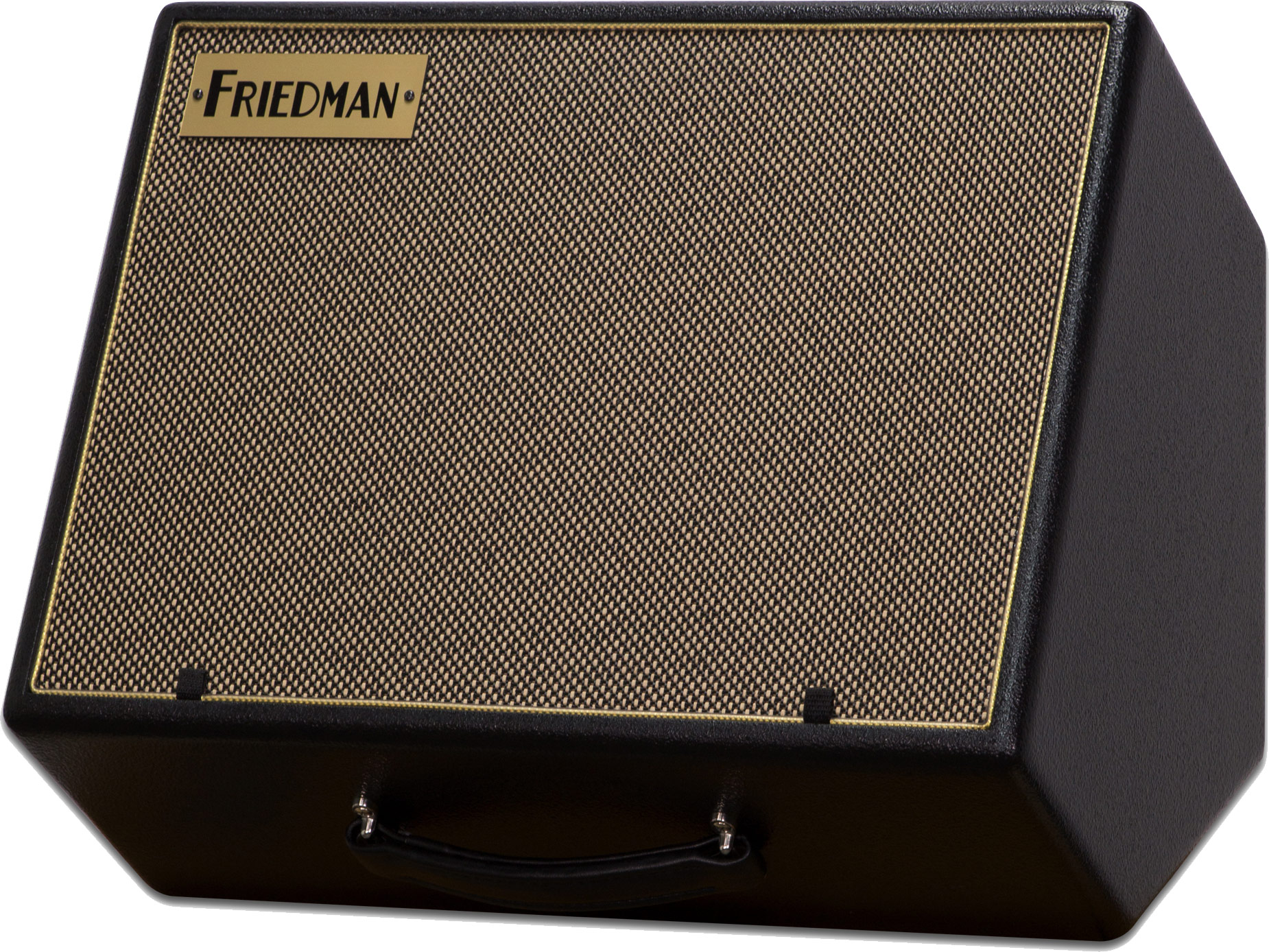

Friedman ASM-10 Active Stage Monitor
Image Gallery
Manufacturer's ID: ASM-10
The Friedman ASM-10 active guitar monitor is your compact, onstage modeling solution. By combining a high-end, 1 x 10” speaker cabinet with 500 watts of clean, analog power, and putting it into a familiar and elegant design, the ASM-10 pushes the tone of your favorite modeler through the air while blending seamlessly with the rest of your rig. And thanks to the cabinet’s tilt-back floor monitor design, it easy to ensure you’re hearing every nuances of your playing as clearly as possible. If you utilize amplifier modeling in your performances, but need the immediacy and feel of a real speaker pushing air, the Friedman ASM-10 2-way, 500-watt powered monitor is what you’ve been missing.
Specification
Classic design with onstage convenience:
With the
ASM-10, you’re able to position the cabinet anywhere you want onstage
while still hearing your every note. Its tilt back design allows it to
be placed comfortably in front of you, delivering your sound right to
your ears. Or place it behind you in the traditional location for
amplifiers, and its guitar-cabinet look blends right in with the rest of
your backline.
● Tilt-back design allows for optimal onstage placement
● Looks like
a traditional cabinet when placed vertical
Plenty of power:
The heart of the ASM-10 active
guitar monitor is its all-analog, bi-amped Class-G power section. Plenty
of care was taken to choose the highest-quality materials for
reliability and sonic clarity in designing this amplifier. As soon as
you plug it in, your ears are greeted with warmth and detail that leave
PA-style monitoring far behind. And at 500-watts, you’ll wield plenty of
power for any performance.
● All-analog, Class G circuitry engineered for rich and
pristine tone
● Bi-amped into a 10” Celestion TF1025E woofer and 1”
compression driver
● Powerful enough to also be used as backline or a
mobile PA
Tonal control:
Around back, you’ll find all the
straightforward control you need to tailor your ASM-10 to any situation.
A simple level control and Low Cut switch keeps your frequencies and
volume balanced. And both balanced XLR and ¼” input offer all the hookup
flexibility you need.
● XLR and ¼” inputs allow for different connectivity needs
●
Low Cut switch controls frequencies below 100Hz
● Level control for
proper onstage gain staging
Dave Friedman knows tone:
Dave Friedman has been
building one of the most stellar reputations in the guitar, amplifier,
and effects industry for decades. His clientele - which includes some of
the biggest names in electric guitar - continue to rely on him to keep
them sounding their best night after night. When he puts his name on a
piece of gear, you know it will get the job done.
● The Friedman name is synonymous
with high-quality electric guitar products
● Crafted with the finest
materials for flawless performance
● Every unit is inspected and
tested before shipping
SPECIFICATIONS
- Configuration: 10” 2-Way Active Stage Monitor for use with modelers/profilers
- Assembly: Made in USA using premium worldwide components
- Low Frequency Transducer: Celestion - 10” TF1025E woofer
- High Frequency Transducer: Celestion PETP film compression driver with 1” voice coil
- Frequency Range: 50Hz - 20kHz
- Frequency Response: 58Hz -18kHz
- High Frequency Dispersion: Optical Wave Guide
- Maximum peak SPL: 129dB
- Power Output: LF: 270Wrms Class G / HF: 80Wrms Class AB+B
- Maximum total burst power*: 500W
- Input Impedance: 20k Ohm Balanced / 10k Ohm Unbalanced
- Electronic Crossover: 4th order
- Low Cut Filer (switchable): 3rd order Butterworth @ 100Hz
- Controls: Level knob , Low-cut filter switch, Ground lift switch
- Power switch, AC fuse, 115/230V switch
- Indicators: Power, Protect
- Cooling: Convection
- Amplifier Protection: Short circuit, Clip-limiter, Overheat mute, SOA output stage, Driver DC protection, Subsonic filter, Turn-on mute and soft ramp, Turn-on inrush current limiting
- Power Consumption @: 1.7A/0.85A 115Vac/230Vac
- (1/8 power pink noise): 150VA
- Connectors: Balanced 1/4” input / Balanced male XLR link output
- Input Sensitivity **: 775mV (0dBu)
- Enclosure: Black Texture painted, Baltic birch plywood construction
- Hardware: Strap handle, Rubber feet / Rubber Strips
- Dimensions: 20.5” H x 15.25” W x 13.25” D
- Weight: 40.9 lbs.
