Electro Voice Evolve 30M
Order before 1PM for Delivery Tomorrow
Manufacturer's ID: EVOLVE30M-EU

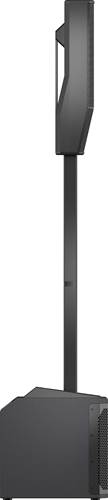

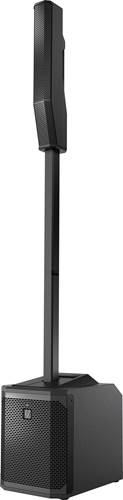

Designed to deliver a step up in sound quality and set a new performance standard for compact column speaker systems - EVOLVE 30M is perfect for solo musicians, small groups, mobile entertainers and smaller venues that need an easy-to-use, highly portable and lightweight system with extraordinary coverage and output for its size.
EVOLVE 30M comes ready to go with speaker array, symmetrical aluminum pole connectors with internal wire assembly and magnetically assisted latching, subwoofer, and included pole/array carry case - all designed to pack up compactly, set up and tear down quickly, look great on stage, and withstand real-world wear and tear.
Professional-grade EV-engineered components and build quality - The full-range column array and its six 2.8” neodymium drivers provide room-filling ultra-wide 120° coverage via custom-designed waveguides; arrayformed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members.
The EVOLVE 30M has an integrated full-function and fully programmable eight-channel digital mixer with multiple inputs (4x XLR/TRS combo line/mic inputs, 1x XLR/TRS stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input, wireless Bluetooth® Audio Input), and professional-grade preamps and mixer functions - all designed in collaboration with the world-class mixer engineering team at EV’s sibling brand Dynacord.
For the performing musician, Hi-Z and foot switch inputs are included for flexible system configuration, and a range of onboard studio-quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for finessing your sound. This reduces set-up time - and on-stage clutter - by minimizing the need for external equipment such as a mixer and effects pedals, which also makes loading in and out of the venue quicker.
High-resolution, low-latency Bluetooth®* streaming ensures exceptional results for music playback or accompaniment. The next-generation Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, mixing and monitoring of all parameters of up to six EVOLVE 30M systems simultaneously, and is fully programmable. The full-function GUI allows intuitive control of all system functions from your mobile device. EVOLVE 30M offers simple or sophisticated operation according to your application, making great sound easy for users of all levels.
EV’s industry-leading QuickSmart DSP interface - Allowing intuitive navigation of system parameters via an LCD with single-knob control - as well as multiple options for signal routing and inputs. Setup is simple via four presets (Music, Live, Speech, Club), threeband system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure.
- Designed to deliver absolutely uncompromising sound quality - real pro audio in a column format
- The most complete package in its class - powerful DSP, integrated mixer, Bluetooth remote control and streaming, and more
- Custom-designed EV-engineered components - what’s behind the grille makes a difference
- Ultra lightweight, single-trip portability and superquick setup
- The new member of the best-selling EVOLVE family - proven performance and reliability
|Frequency response (-3 dB)||51 Hz to 20 KHz|
|Frequency range (-10 dB)||: 45 Hz to 20 KHz|
|Maximum SPL||123 dB|
|Coverage (H x V)||120° x 40°|
|Amplifier rating||1000 W|
|LF channel rating||500 W|
|HF channel rating||500 W|
|Crossover frequency||200 Hz|
|Connectors||4x XLR/TRS Combo Jack Line / Mic Input
1x 1/4" TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line Input
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth® Audio Input
1x 1/4" Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
|Enclosure||Sub: 15 mm plywood
|Grille||Steel with black or white powder coat|
|Dimensions (HxWxD) mm (in)||Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
|Net weight||Sub: 34.9 lb (15.8 kg)
Column: 6.0 lb (2.7 kg)
Pole (2 pcs): 3.1 lb (1.4 kg)
Bag for column and pole: 1.9 (0.85 kg)
|Shipping weight||53.4 lb (24.2 kg)|
|Power consumption||100-240 V AC, 50-60 Hz, 1.5-0.6 A|
