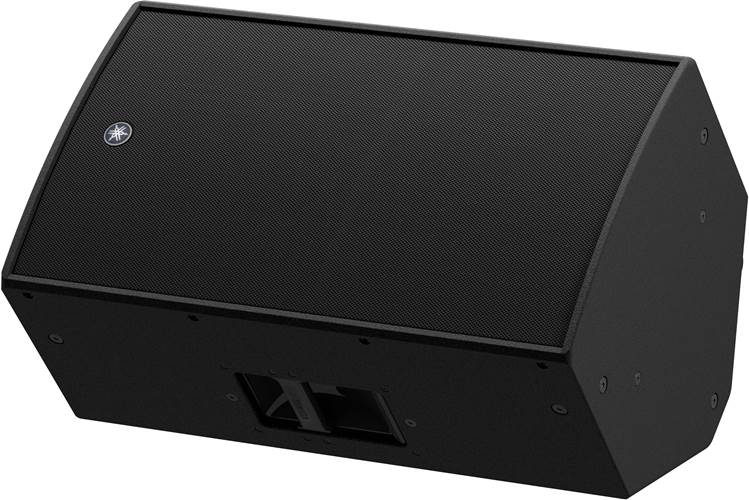

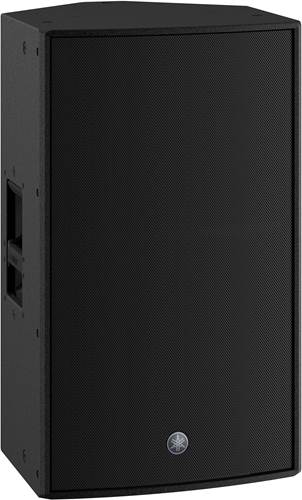

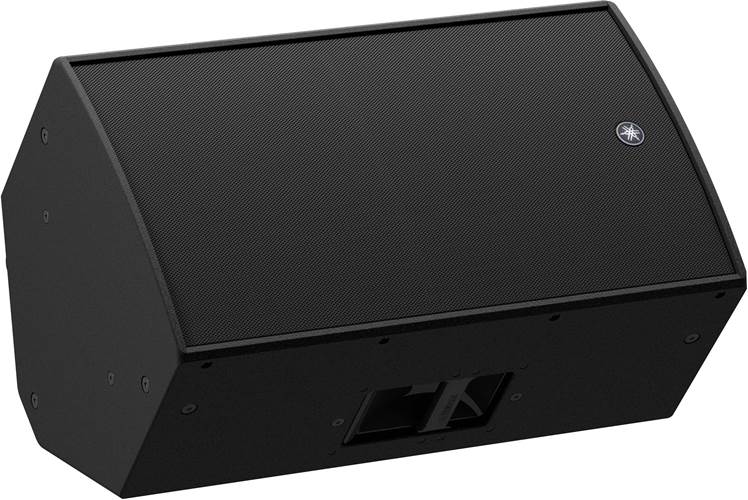

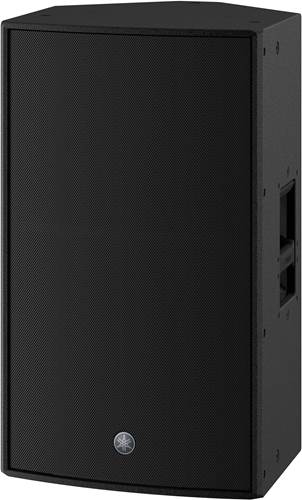

Yamaha DZR15-D Dante Equipped PA Speaker (Single)
Image & Video Gallery
Was £1,599.00 Save £100.00
£1,499.00
In Stock
6 AvailableOrder before 4PM for FREE Delivery Tomorrow
Includes 30-Day Exchange & 3-Year Warranty
Frequently Bought Together
7 Year Extended Warranty
Each Yamaha DZR speaker is covered by a 7 Year Warranty upon registration with Yamaha within 6 months of purchase. Giving you peace of mind over your investment.
Manufacturer's ID: CDZR15DUK
What we say:
At A Glance:
Yamaha's Professional Audio products are some of the best on the market and the DZR15-D Dante Equipped PA Speaker is no exception. Its robust construction and highly efficient components come together to produce a crystal clear sound that is highly effective across a number of applications. Whether used as part of a main PA system or a stage monitoring system, it is a great choice for those who care about performance and sound delivery.
Features We Love:
2000W Class-D Power
Extremely efficient and very reliable, the 2000W Class-D Power is a mighty beast. It delivers a very respectable 139dB SPL which we think you'll agree is more than enough for most live scenarios!
Onboard LCD Screen
Thanks to the LCD screen you can quickly access presets and other DSP functions. Make changes to parameters accurately, even when in low-light venue environments.
Dante Equipped
This version of the DZR15 comes Dante (Digital Audio Network Through Ethernet) equipped! This means you can digitally connect other Dante devices such as Yamaha consoles for smart system integration. This opens up a whole range of routing and system configuration options without the need for heavy multicore cables.
Highlights:
- Plenty of power with a lot of clarity
- Custom-designed transducers for a consistently great sound
- Especially great when paired with another DZR15-D
Specification
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) | 34Hz - 20kHz |
| Coverage area | H90ﾟ x V50ﾟ(Rotatable) |

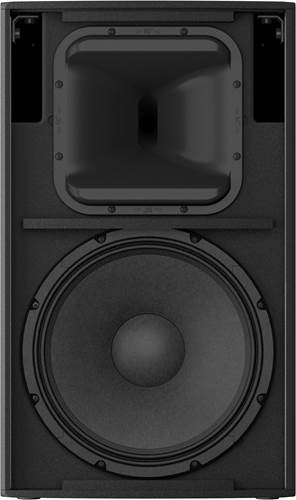

| Components | LF: 15" Cone, 3" Voice Coil, Neodymium magnet |
| HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 1.7kHz (FIR-X) |
| Sampling frequency rate | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA |
| Maximum output level (1m; on axis) | 139dB SPL *1 |
| I/O Connectors | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T | |
| USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| Cooling | Fan cooling, variable speeds |
| Amplifier Class | Class-D |
| Power Consumption | 45W Idle, 150W, 1/8 |
| Dimensions | |
| Width | 450 mm (17.7") |
| Height | 761 mm (30.0") (with rubber feet) |
| Depth | 460 mm (18.1") |
| Net weight | 25.2kg (55.6lbs) |
| Pole socket | Φ35 mm x2 (0° or -7°) |
